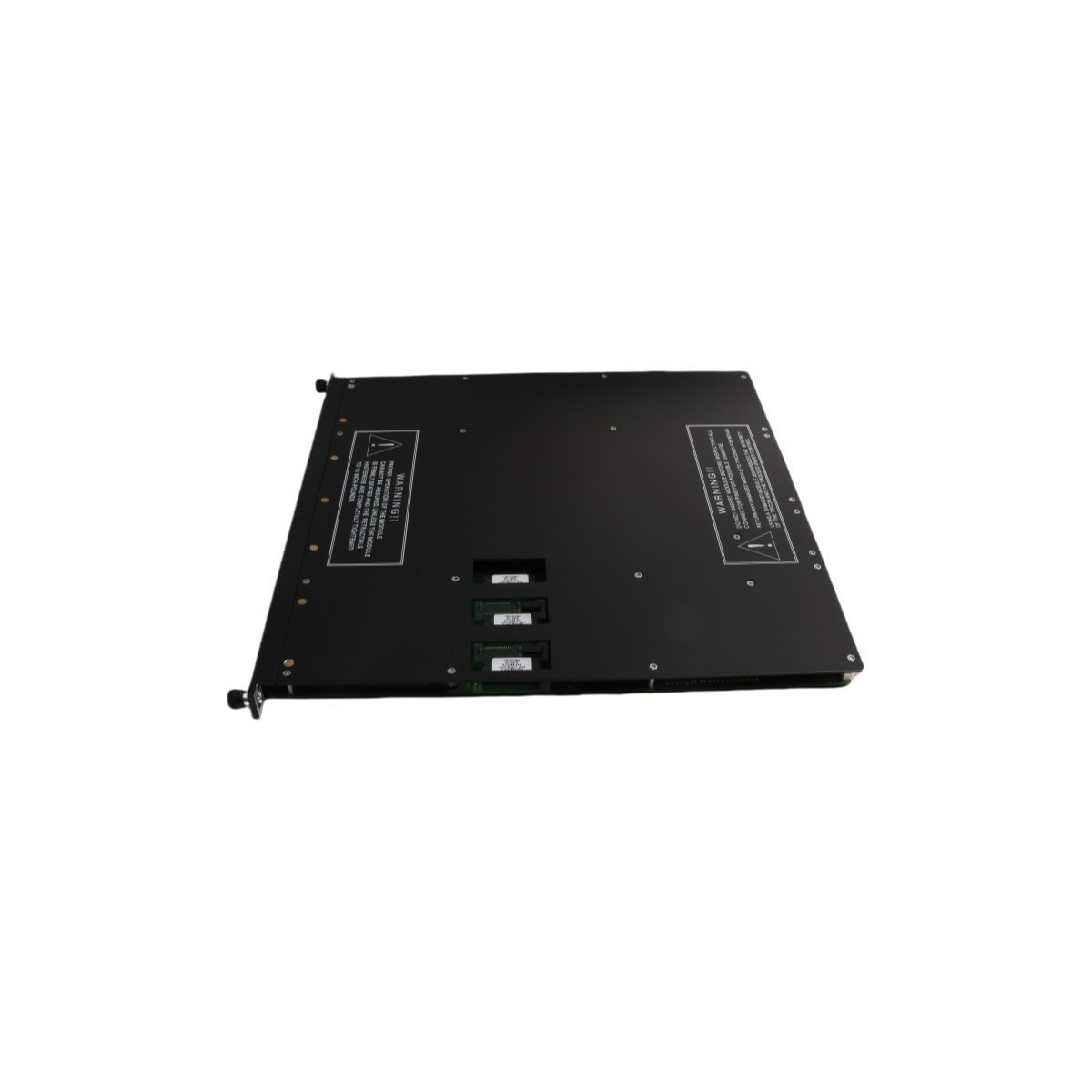

The Triconex 3502EN2 is a 32-channel, 48 VDC Digital Input module featuring Triple Modular Redundancy (TMR) for maximum safety. Engineered for SIL 3 applications, this high-density module provides opto-isolation and advanced diagnostics, ensuring reliable signal acquisition for critical emergency shutdown and fire and gas systems.
The Triconex 3502EN2 functions as a high-density, fail-safe Digital Input (DI) module designed specifically for the Tricon v9 and v10 systems. This module utilizes Triple Modular Redundancy (TMR) architecture, which incorporates three isolated, parallel control paths to ensure maximum system availability. By processing field signals through three independent input legs, the 3502EN2 can detect and outvote a single point of failure without interrupting the process. Consequently, this hardware provides the extreme reliability required for Emergency Shutdown (ESD), Fire and Gas (F&G), and Burner Management Systems (BMS) in high-risk industrial environments.
To ensure accurate data acquisition, the 3502EN2 continuously monitors the status of up to 32 digital input channels. Each input circuit converts field-side voltage—typically 48 VDC—into a digital state that the main processors can evaluate. Furthermore, the module employs sophisticated “hot-standby” capabilities and internal self-tests to identify potential hardware degradation before it impacts plant safety. Because each channel is optically isolated, the module effectively prevents high-voltage transients or ground loops from migrating into the system backplane. This isolation, combined with the module’s 1-millisecond resolution, ensures that sequence-of-events (SOE) data is recorded with absolute precision.
Triconex has engineered the 3502EN2 to meet the rigorous demands of the oil and gas, petrochemical, and power generation industries. The module supports “Hot-Swapping,” which allows maintenance personnel to replace a faulty unit while the system is online and the process is running. This feature, paired with a comprehensive set of front-panel diagnostic LEDs, simplifies the troubleshooting process and minimizes the Mean Time to Repair (MTTR). Additionally, the unit is built to withstand harsh climatic conditions and high vibration, ensuring a long operational lifecycle even in decentralized control cabinets. By integrating the 3502EN2, plant operators achieve a superior safety integrity level (SIL 3) while significantly reducing the risk of unplanned production halts.
