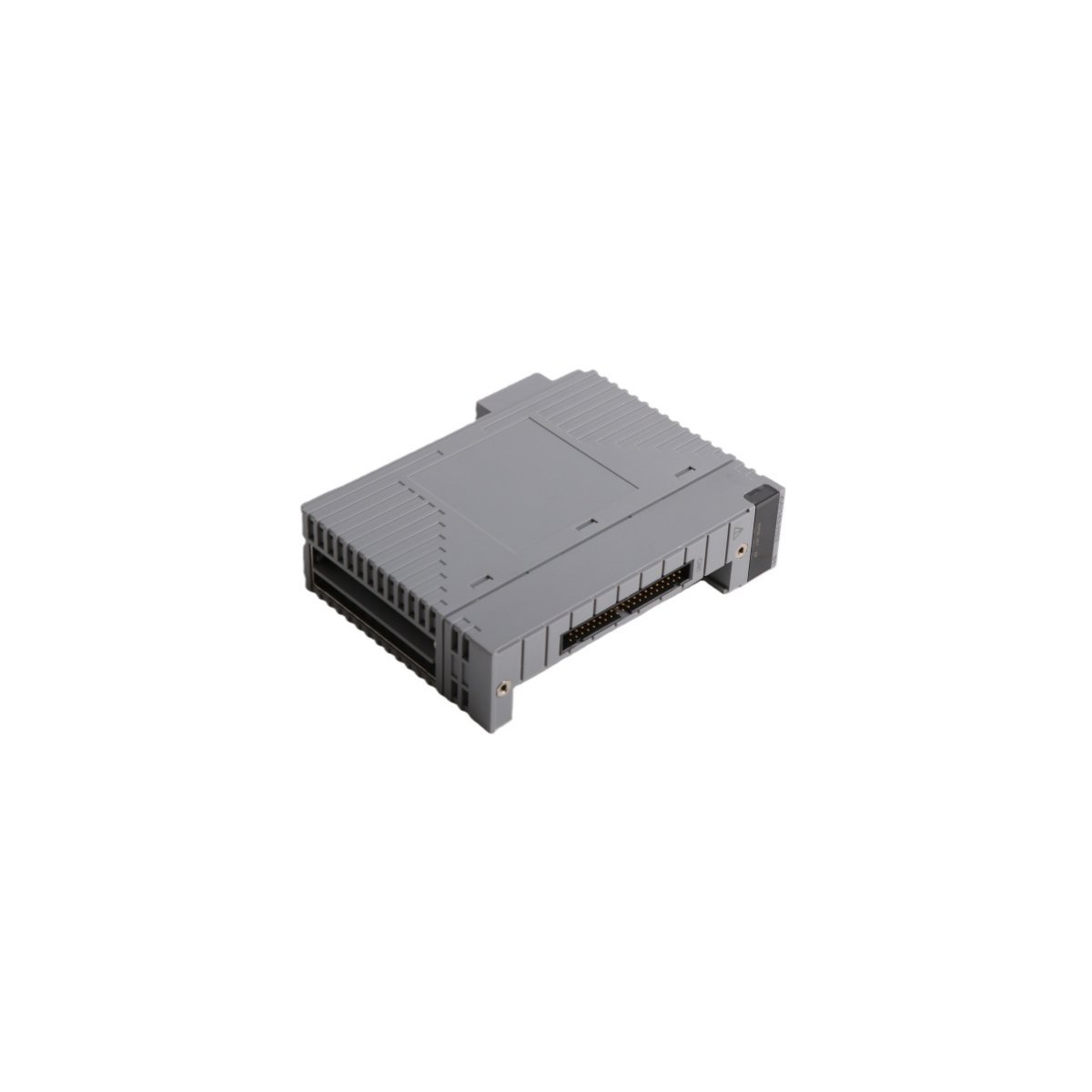

Yokogawa AAI143-H53 S1 Current Input Module

Technical Overview

The Yokogawa AAI143-H53 S1 serves as a high-precision analog input module for the CENTUM VP and ProSafe-RS control systems. This module accepts 16 channels of isolated 4 to 20 mA DC signals, providing the essential interface between field transmitters and the controller. By utilizing advanced optical isolation for each channel, the module effectively eliminates ground loops and protects the system logic from field-side electrical surges and noise.

Performance and Data Integrity

Engineered for high-speed process monitoring, the AAI143-H53 S1 features a high sampling frequency that allows the controller to capture rapidly changing process variables. The module supports HART (Highway Addressable Remote Transducer) communication, enabling it to pass digital diagnostic data from “smart” field devices to the Asset Management System. This dual-layered approach—analog signal for control and digital signal for maintenance—maximizes plant uptime and instrument reliability.

Environmental Resilience and Reliability

Yokogawa builds the AAI143-H53 S1 to withstand the extreme conditions of industrial environments. The module maintains peak accuracy within a temperature range of -20 to +70 degrees Celsius. Furthermore, it supports dual-redundant configurations; when paired with a second module, the system ensures continuous data acquisition even if a single hardware component fails. This fault-tolerant design makes it a preferred choice for safety-instrumented functions and critical process loops.

Technical Specifications

• Manufacturer: Yokogawa
• Model Number: AAI143-H53 S1
• Module Type: Analog Input (Current Input)
• Number of Channels: 16, Isolated
• Input Signal: 4 to 20 mA DC
• Digital Communication: HART Protocol supported
• Redundancy: Dual-redundant capable
• Sampling Frequency: 2 kHz capability
• Operating Temperature: -20 to +70°C
• Weight: 0.3 kg
• Dimensions: 3.3 x 10.7 x 13 cm

Strategic Applications

Engineers deploy the AAI143-H53 S1 in various critical sectors including:

• Petrochemical Refining: Monitoring pressure and flow transmitters in hazardous areas.
• Power Generation: Capturing boiler and turbine sensor data for real-time control.
• Water Treatment: Managing high-density sensor arrays for pH, flow, and level monitoring.
• Safety Instrumented Systems (SIS): Providing reliable inputs for emergency shutdown (ESD) logic.
