SKU: EC401-50

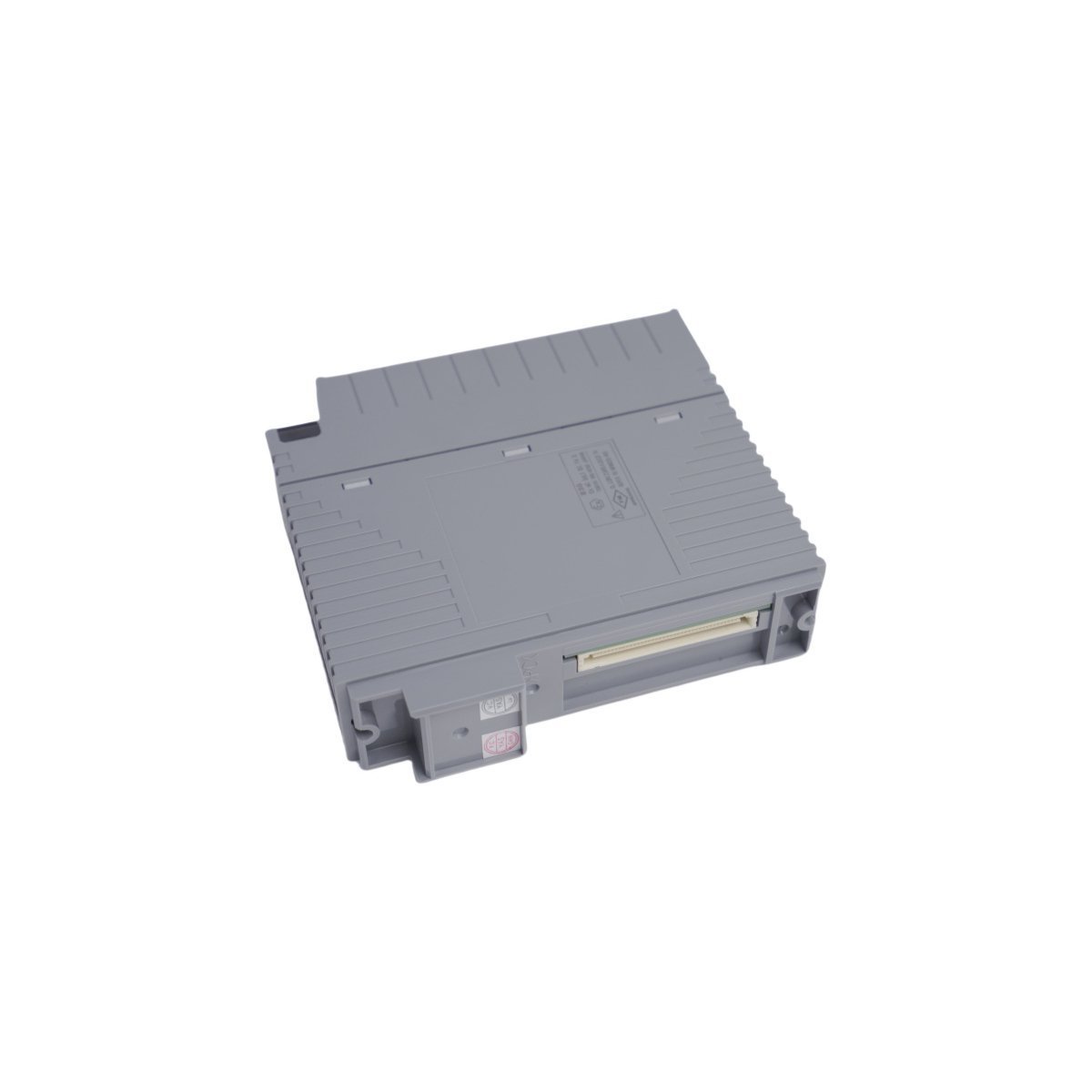

Yokogawa EC401-50 ESB Bus Coupler Module for CENTUM VP/FIO Systems

The Yokogawa EC401-50 is a master-side ESB Bus Coupler Module designed for CENTUM VP Field Control Units. It provides high-speed, isolated signal transmission to remote I/O nodes, supporting up to 350kW-equivalent system loads with robust Japanese engineering.

Product Description

The Yokogawa EC401-50 functions as a high-speed communication bridge within the CENTUM VP Distributed Control System (DCS). This ESB Bus Coupler Module installs directly into a Field Control Unit (FCU) to facilitate the transmission of I/O signals between the master control unit and distributed Node Units. By utilizing advanced signal conditioning technology, the module ensures that data maintains its integrity even when traveling across extended ESB bus lengths.

Engineers primarily utilize the EC401-50 to expand system capacity and connect remote FIO (Field network I/O) components. The module supports a variety of Field Control Units, including the AFV30S, AFV30D, AFV40S, AFV40D, and A2FV50S/D models. Because the unit features high-level galvanic isolation, it effectively suppresses ground loop currents and protects sensitive electronics from industrial electromagnetic interference. This technical safeguard is vital for maintaining the continuous uptime required in process industries such as chemical refining and power generation.

The EC401-50 is engineered for resilience in demanding climates, operating efficiently within a broad temperature range from -20°C to 70°C. Furthermore, its hot-swappable design allows for dual-redundant configurations, where two modules work in parallel to provide bumpless failover. Consequently, the EC401-50 stands as a definitive component for building scalable, reliable, and high-performance automated control architectures.
