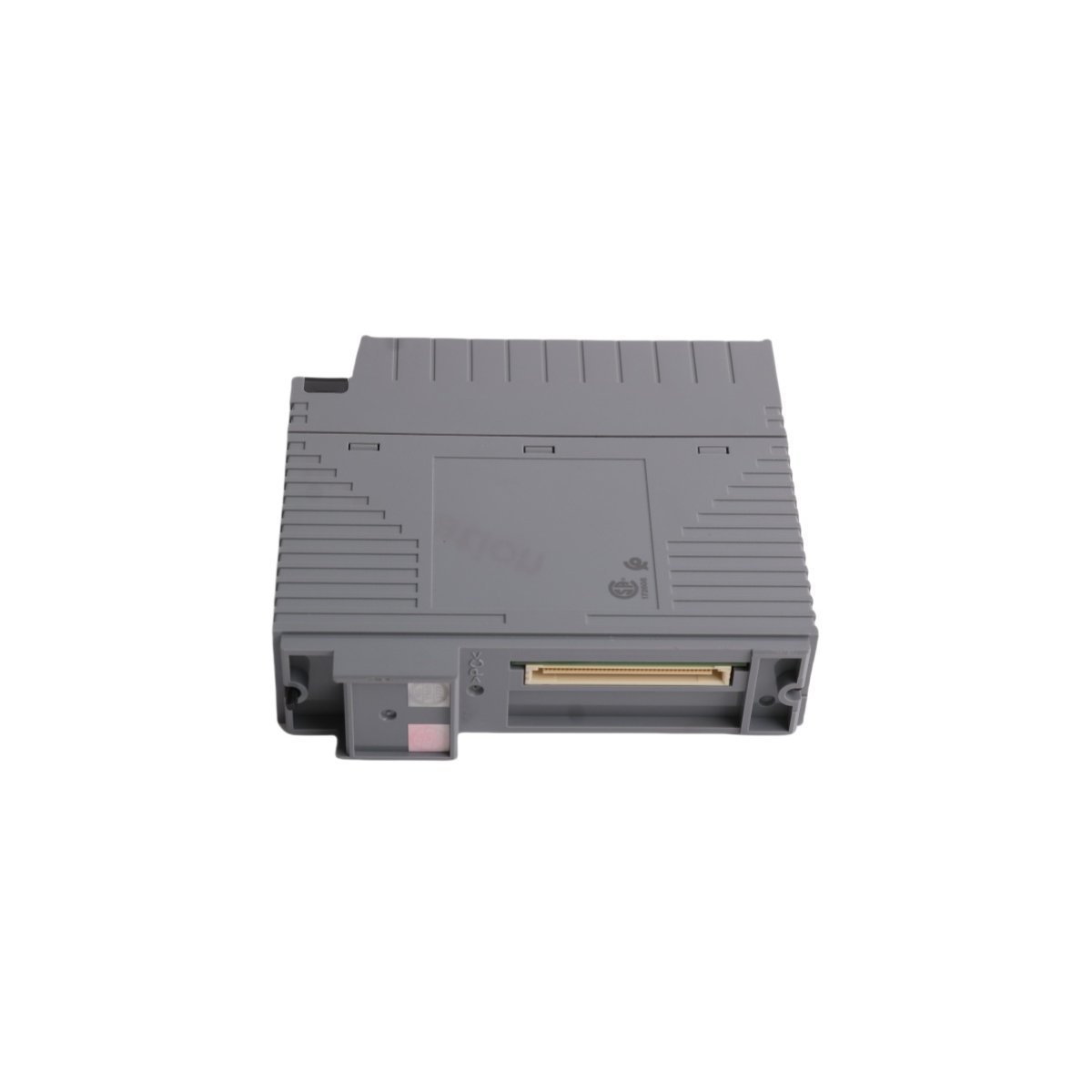

Yokogawa EC402-50 ESB Bus Coupler Module CENTUM VP DCS

The Yokogawa EC402-50 is a high-speed ESB Bus Coupler Module designed for CENTUM VP DCS expansion. It enables seamless communication between the Field Control Unit and remote I/O nests while supporting dual-redundant configurations. This Japan-made module ensures high-bandwidth data transfer and long-term reliability for large-scale industrial control architectures.

Technical Summary

The Yokogawa EC402-50 functions as a high-speed ESB Bus Coupler Module specifically engineered for the CENTUM VP Distributed Control System (DCS). This module serves as the primary communication bridge between the Field Control Unit (FCU) and various remote I/O nodes. Consequently, it enables the high-speed extension of the internal system bus, allowing for the seamless transfer of data across multiple expansion racks. By utilizing this specialized hardware, the system maintains real-time synchronization and high-bandwidth signal processing, which remains essential for large-scale automation architectures.

Key Operational Characteristics

High-Speed Bus Extension: Because the EC402-50 facilitates the expansion of the ESB bus, it allows the processor to communicate with additional I/O modules located in secondary nests.
Redundant Configuration Support: In addition to its standard functionality, the module supports dual-redundant configurations. This ensures that the system maintains continuous communication even if a single cable or module path fails.
Signal Integrity Maintenance: Due to its advanced internal circuitry, the module preserves signal quality over extended distances, effectively minimizing latency and preventing data transmission errors.
Seamless System Integration: Furthermore, the EC402-50 integrates directly into the FCU rack, which simplifies the physical installation process and reduces the need for complex external routing hardware.
Industrial Reliability: Owing to Yokogawa’s rigorous manufacturing standards in Japan, the module demonstrates high mean time between failures (MTBF), ensuring stable operation in 24/7 process environments.

Industrial Applications

Systems engineers typically deploy the EC402-50 in complex, distributed industrial plants such as refineries, pharmaceutical facilities, and power stations. Since these environments often require a high density of I/O points, the module provides the necessary scalability to expand the control system as the plant grows. Moreover, because it supports the ESB bus protocol, it provides the deterministic communication required for safety-critical loops and precise process modulation. As a result, the EC402-50 acts as a cornerstone for maintaining the integrity and reach of the CENTUM VP control network.
