21000-16-05-15-038-04-02Product datasheet
Model number: | 21000-16-05-15-038-04-02 | Module Type： | Proximity Probe HousingAssemblies | |
Manufacture: | Bently Nevada | Condition： | Brand New | |
Range of Product: | Bently Nevada | Lead time： | In Stock | |
Weight: | 1.08 kg | HS CODE： | 8537101190 | |
Dimension: | 8.5×8.5×30.5cm | MOQ: | 1 | |
Product Origin: | USA | System： | TSI | |
Discontinued on: | active | Communication Service: | Ethernet router |

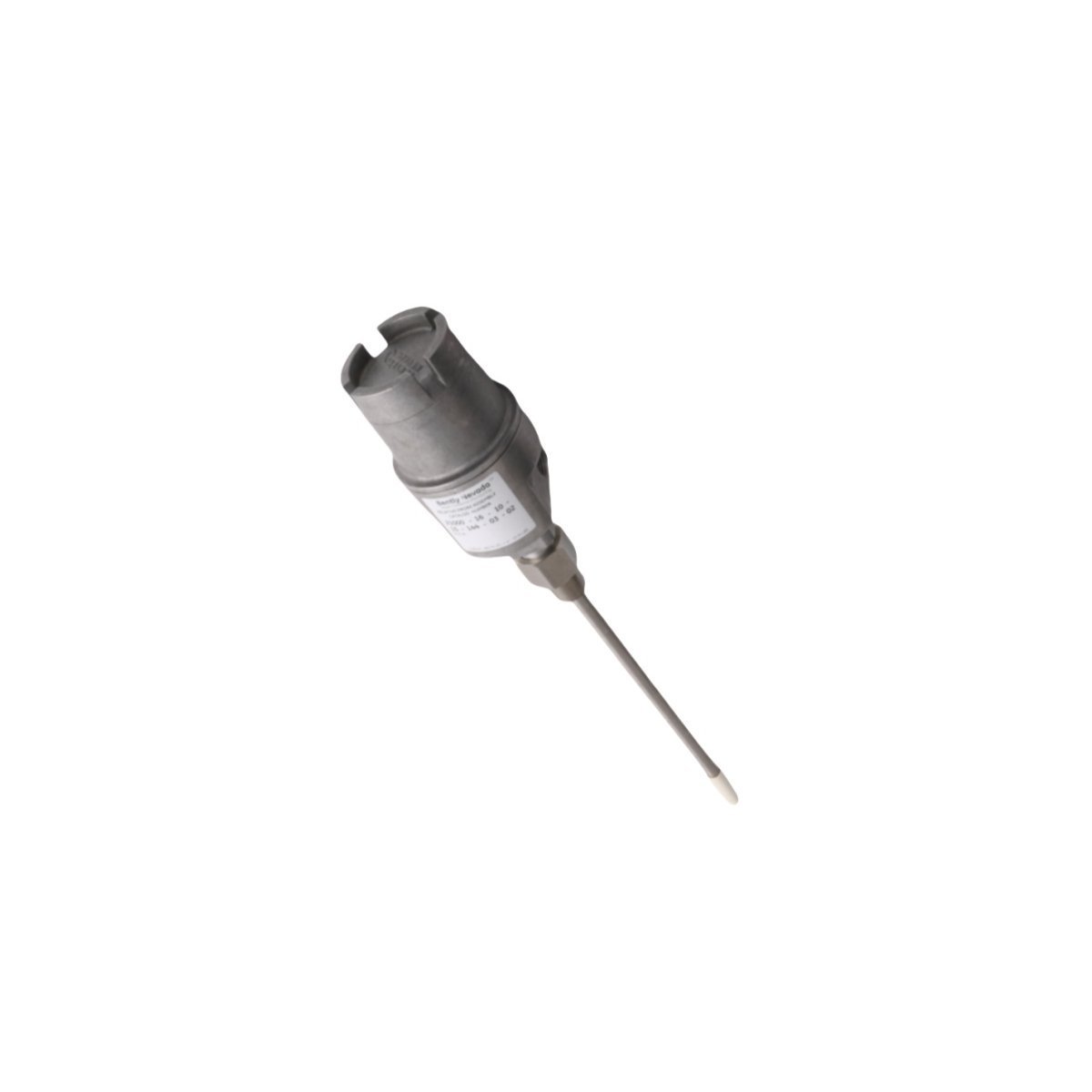

21000-16-05-15-038-04-02 Functional Description
The Bently Nevada 21000-16-05-15-038-04-02 Proximity Probe HousingAssembliesis a robust proximity probe housing assembly designed to enable external mounting of reverse-mount probes in demanding industrial applications. Part of the 21000 series, this all-metal assembly features an aluminum housing body with a stainless steel probe sleeve, ensuring mechanical strength and corrosion resistance in harsh environments such as power plants, refineries, and chemical processing facilities.
The 21000-16-05-15-038-04-02 Bently Nevadaincludes essential components such as a threaded dome cover, conduit connection ports, O-rings, and a thread seal to ensure proper sealing and protection. The housing supports a reverse mount 3300 XL 8 mm proximity probe with a probe sleeve length of 3.8 inches, providing accurate vibration and shaft position data critical to condition monitoring systems.
To accommodate various installation needs, the Bently Nevada 21000-16-05-15-038-04-02 PDFalso offers optional conduit fittings and a standoff adapter. Its sturdy design ensures reliability in hazardous areas, meeting API 670 and CSA Type 4 standards for explosion-proof environments. This makes it an ideal choice for equipment that demands high safety and performance.
While the Proximity Probe 21000-16-05-15-038-04-02remains a reliable standard for explosion-proof applications, Bently Nevada also offers the newer 31000 and 32000 series.
The Bently Nevada 21504-00-32-10-02 is a 3300 NSv series proximity vibration probe, a fundamental component of an eddy current transducer system designed for non-contact displacement and vibration measurement on rotating machinery. Its primary function is to measure the distance (gap) between the probe tip and a conductive target material, typically a machine shaft. The probe operates by generating a high-frequency radio frequency (RF) field from its tip coil. When brought near the conductive target, this field induces eddy currents on the target's surface. These eddy currents alter the impedance of the probe's coil system. This change in impedance is detected by an associated Proximitor Sensor, which demodulates the signal into a voltage directly proportional to the probe-to-target gap. This analog voltage signal is then transmitted to a monitoring system, such as the Bently Nevada 3500 Machinery Protection System, for real-time analysis, trending, and alarming. The 21504-00-32-10-02 is constructed with a stainless steel case for durability in industrial environments and is specifically configured with a 320 mm case length and a 1.0-meter integral cable.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 21504-00-32-10-02 |
| Product Type | 3300 NSv Proximity Vibration Probe |
| Condition | Brand New |
| Warranty | 12 Months |
| Unthreaded Length | 0 mm |
| Case Length | 320 mm (12.6 in) |
| Total Length | 1.0 metre (3.3 feet) |
| Connector Type | Miniature coaxial ClickLoc connector, standard cable |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | AISI 304 Stainless Steel |
| System Linear Range | 2 mm (80 mils) |
| System Scale Factor | 7.87 V/mm (200 mV/mil) with 3300 NSv Proximitor |
In Oil & Gas and Power Generation applications, the 21504-00-32-10-02 probe demonstrates high reliability for continuous monitoring of critical assets such as gas and steam turbines, compressors, and large pump motors. Its non-contacting measurement principle eliminates mechanical wear, contributing to a high Mean Time Between Failures (MTBF) for the overall protection system. The probe is engineered to operate reliably in harsh industrial conditions. The probe tip is rated for continuous operation from -34 °C to +177 °C (-29 °F to +351 °F). The robust stainless steel case provides protection against physical impact and contaminants common in plant environments. When installed as part of a complete 3300 NSv transducer system, it provides a stable and repeatable measurement essential for machine protection and condition monitoring programs, enabling early detection of developing faults like imbalance, misalignment, and fluid-induced instabilities.
Q: What systems is the 21504-00-32-10-02 compatible with?
A: The 21504-00-32-10-02 probe is a component of the Bently Nevada 3300 NSv Proximity Transducer System. For correct operation, it must be used in conjunction with a 3300 NSv extension cable and a 3300 NSv Proximitor Sensor. The output from the Proximitor Sensor is compatible with Bently Nevada monitoring systems, including the 3500 and 3300 series, as well as any data acquisition system, PLC, or DCS capable of accepting a -24 Vdc powered, 7.87 V/mm (200 mV/mil) analog signal.
Q: What are the installation requirements?
A: Proper installation is critical for measurement accuracy. The probe must be mounted perpendicular to the target surface using a rigid bracket. The physical gap should be set to place the DC output voltage in the middle of the system's linear range, typically -10 Vdc. The target area on the shaft must be at least 10.7 mm (0.42 in) in diameter, smooth (0.4 to 0.8 µm / 16 to 32 µin rms), and free of any electrical or magnetic irregularities (e.g., chrome plating, magnetised spots). Cable routing must avoid high-voltage power lines and other sources of electromagnetic interference. All ClickLoc connectors must be fully engaged to ensure a secure connection.
The Bently Nevada 330192-00-28-05-00 is an 8 mm Extended Temperature Range (ETR) proximity probe component of the 3300 XL Proximity Transducer System. Its primary function is to perform non-contact measurement of relative displacement on rotating and reciprocating machinery. The probe operates on an eddy current principle. When paired with a 3300 XL extension cable and Proximitor Sensor, it forms a tuned oscillator circuit that emits a high-frequency radio frequency (RF) field from the probe tip. This field induces eddy currents on the surface of the observed conductive target, typically a machine shaft. The interaction between the RF field and the eddy currents results in a change in the oscillator's amplitude, which is directly proportional to the gap between the probe tip and the target. The Proximitor Sensor demodulates this RF signal into a precise DC voltage. This voltage signal is then transmitted to a monitoring system, such as the Bently Nevada 3500 Series, where it is processed to provide critical measurements including radial vibration, axial position (thrust), and rotational speed (when used in a Keyphasor configuration). The 330192-00-28-05-00 is constructed with a Polyphenylene Sulfide (PPS) tip and a stainless steel body, ensuring robust performance in high-temperature industrial environments.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330192-00-28-05-00 |
| Product Type | 3300 XL 8 mm ETR Proximity Probes |
| Condition | Brand New |
| Warranty | 12 Months |
| Linear Range | 2.0 mm (80 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Probe Tip Temperature Range | -34 °C to +260 °C (-30 °F to +500 °F) |
| Total Length | 0.5 meters (1.6 feet) |
| Case Length | 2.8 inches (71.1 mm) |
| Connector Type | Miniature coaxial ClickLoc connector, gold-plated |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
The 330192-00-28-05-00 probe is engineered for high-reliability machine protection and condition monitoring in demanding industrial sectors. In Oil & Gas applications, its ETR specification (up to +260 °C) allows for installation on high-temperature machinery such as gas turbines, steam turbines, and centrifugal compressors, where probes are often located near hot casings or in high-temperature bearing housings. In Power Generation, it provides essential rotor dynamics data for turbine-generator sets, ensuring safe operation within design limits. The 3300 XL system, including the 330192-00-28-05-00 probe, is designed for high immunity to radio frequency interference (RFI/EMI), a common issue in industrial plants. Its robust construction with an AISI 304 stainless steel case provides excellent resistance to corrosion from hydrocarbons and other process chemicals. The system's stability and repeatability are critical for API 670 compliant machinery protection systems, providing accurate data for automatic shutdown logic and predictive maintenance analysis.
Q: What systems is the 330192-00-28-05-00 compatible with?
A: The 330192-00-28-05-00 probe must be used as part of a complete, electrically matched 3300 XL 8 mm transducer system. This system includes a 3300 XL Proximitor Sensor (e.g., P/N 330180-XXXX-XX) and a
The Bently Nevada 200350-12-00-00 is a general-purpose, case-mounted industrial accelerometer designed for measuring absolute bearing housing or machine casing vibration. It utilizes a piezoelectric sensing element that generates a low-impedance voltage signal directly proportional to the acceleration of the component to which it is mounted. This analog voltage signal is transmitted via a two-wire system, which also supplies constant current power to the sensor's internal electronics (IEPE standard). The 200350-12-00-00 is specifically engineered for integration with Bently Nevada machinery protection systems, such as the 3500 series. It directly interfaces with the 3500/42M Proximitor/Seismic Monitor, which processes the raw acceleration signal. The monitor can then provide real-time acceleration data or perform single integration to derive velocity, a common parameter for assessing rotating machinery health. Constructed from 316L stainless steel with a hermetic seal, the 200350-12-00-00 is built to withstand harsh industrial environments, ensuring reliable signal transmission and long operational life in critical machinery monitoring applications.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 200350-12-00-00 |
| Product Type | Accelerometers |
| Condition | Brand New |
| Warranty | 12 Months |
| Sensitivity | 10.2 mV/m·s⁻² (100 mV/g) ±5% |
| Frequency Response | 0.5 Hz to 10 kHz (±3 dB) |
| Measurement Range | ±490 m/s² (±50 g) peak |
| Power Requirement (IEPE) | 18 to 30 VDC, 2 to 10 mA Constant Current |
| Connector | 2-pin MIL-C-5015, Top Exit |
| Operating Temperature Range | -55 °C to +121 °C (-67 °F to +250 °F) |
| Case Material | 316L Stainless Steel, Hermetically Sealed |
In Oil & Gas and Power Generation applications, the 200350-12-00-00 provides essential data for condition monitoring of critical assets like gas and steam turbines, compressors, pumps, and generators. Its reliability is substantiated by its robust construction; the hermetically sealed 316L stainless steel housing (rated to IP68) prevents ingress of moisture, chemicals, and particulates common in these environments. The sensor is designed for high MTBF (Mean Time Between Failures) through the use of solid-state electronics and minimal moving parts. Environmentally, the 200350-12-00-00 is specified to operate reliably from -55 °C to +121 °C, accommodating a wide range of ambient and machine surface temperatures. It is also designed to survive high-g shock events (up to 5000 g peak), ensuring data integrity is maintained even during machinery startup, shutdown, or upset conditions.
Q: What systems is the 200350-12-00-00 compatible with?
A: The 200350-12-00-00 is designed for primary compatibility with Bently Nevada monitoring systems, including the 3500 Machinery Protection System (interfacing with the 3500/42M Proximitor/Seismic Monitor) and the 3300 Monitoring System. It is also compatible with any third-party data acquisition or monitoring system that can provide standard IEPE (Integrated Electronics Piezo-Electric) sensor power, specifically a constant current source of 2 to 10 mA at a voltage of 18 to 30 VDC.
Q: What are the installation requirements?
A: Proper installation is critical for accurate measurement. The mounting surface must be a flat, smooth (recommended finish of 0.8 μm / 32 μin Ra), and clean area on the machine case. A single mounting hole must be drilled and tapped for the sensor's 1/4-28 UNF mounting stud. Apply a thin, uniform layer of coupling fluid (silicone grease) to the mounting surface to eliminate air gaps and ensure optimal vibration transmission. The sensor must be tightened to the specified torque of 2.7 to 5.4 N·m (24 to 48 lbf·in) using a calibrated torque wrench. Ensure the interconnecting cable is routed to prevent strain on the connector and is shielded from high-voltage lines or other sources of electromagnetic interference. Use of conduit is recommended for physical protection.
The Bently Nevada 330881-28-04-034-06-02 is an integrated PROXPAC XL Proximity Transducer system. This component combines an 8 mm proximity probe, an extension cable, and a signal conditioner into a single, factory-calibrated assembly, which eliminates the need for individual component calibration in the field. The transducer operates on the eddy current principle. The probe tip emits a high-frequency radio frequency (RF) signal, which induces eddy currents on the surface of a conductive machine element, such as a rotating shaft. The transducer's internal circuitry measures the impedance changes resulting from the interaction between the RF field and the eddy currents. This impedance is directly proportional to the physical gap between the probe tip and the target surface. The integrated signal conditioner demodulates this signal and provides a continuous DC voltage output that is precisely proportional to the measured gap. This output voltage is then transmitted to a monitoring system, such as the Bently Nevada 3500 series, for analysis of vibration, axial position, or rotational speed. The construction of the 330881-28-04-034-06-02 ensures high signal integrity by minimizing interconnections, making it suitable for critical machinery monitoring applications.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330881-28-04-034-06-02 |
| Product Type | PROXPAC XL Proximity Transducer |
| Condition | Brand New |
| Warranty | 12 Months |
| Total System Length | 2.8 metres (9.2 feet) |
| Probe Configuration | 3300 XL 8 mm probe, 1/4-28 UNF thread, 0.5 m cable |
| Agency Approvals | Multiple Approvals: CSA (Class I, Div 1/2); ATEX/IECEx (Zone 0/1) |
| Scale Factor | 8.0 V/mm (200 mV/mil), ±5% for AISI 4140 Steel |
| Linear Range | 2.0 mm (80 mils), beginning at 0.25 mm (10 mils) from the probe face |
| Frequency Response | 0 Hz (DC) to 10 kHz (-3 dB) |
| Power Supply Requirement | -17.5 Vdc to -26 Vdc at 12 mA maximum consumption |
| Mounting Option | Panel Mount, 4-Hole Square Flange |
In Oil & Gas and Power Generation applications, the 330881-28-04-034-06-02 provides continuous, online data for machinery protection and condition monitoring. It is engineered for measuring radial vibration, axial thrust position, and differential expansion on large rotating equipment such as gas and steam turbines, centrifugal and reciprocating compressors, and large pump motors. The integrated design enhances reliability by eliminating the connectors between the probe, extension cable, and Proximitor sensor, which are common points of failure and signal degradation due to moisture ingress or vibration. The factory-calibrated system ensures measurement consistency and accuracy without field adjustments. Environmentally, the 330881-28-04-034-06-02 is specified with multiple agency approvals (CSA, ATEX, IECEx), certifying it for safe operation in hazardous areas with explosive gas atmospheres (e.g., Class I, Division 1; Zone 0). The electronics housing is rated for an operating temperature of -34 °C to +85 °C (-30 °F to +185 °F), ensuring performance in demanding industrial environments.
Q: What systems is the 330881-28-04-034-06-02 compatible with?
A: The 330881-28-04-034-06-02 is fully compatible with the Bently Nevada 3500 Machinery Protection System, specifically interfacing with modules such as the 3500/42M Proximitor/Seismic Monitor. It is also compatible with any PLC, DCS, or data acquisition system that can provide a -17.5 Vdc to -26 Vdc power supply and accept a proportional analog voltage input (typically configured for a range like -2 to -18 Vdc). The transducer is factory-calibrated for AISI 4140 steel; use with other target materials will require a different calibration or result in measurement inaccuracies.
Q: What are the installation requirements?
A: Installation requires both mechanical mounting and electrical wiring. The probe portion, with its 1/4-28 UNF thread, must be installed in a rigid bracket and its gap set relative to the machine shaft. The standard practice is to set the DC gap voltage to the center of the linear range (e.g., -10.0 V
The Bently Nevada 16710-33 is a multi-conductor, shielded interconnect cable designed for high-fidelity signal transmission within the 3500 Machinery Protection System. Its primary function is to provide a reliable electrical connection between a 3500 series I/O module and its associated external or internal termination blocks. This specific cable, with a length of 1.0 meter (3.3 feet), is critical for routing low-level analog signals from machinery sensors, such as proximity probes or accelerometers, to the monitoring modules for processing. The construction of the 16710-33 incorporates robust shielding to reject electromagnetic interference (EMI) and radio-frequency interference (RFI), ensuring high signal integrity, which is paramount for accurate vibration, position, and speed measurements. One end features a high-density D-subminiature connector for secure attachment to the I/O module, while the other end is configured for connection to the system's terminal strips. The precise engineering of the 16710-33 ensures that the signal characteristics are preserved throughout the measurement chain, enabling the 3500 system to perform its protective and diagnostic functions with maximum accuracy and reliability.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 16710-33 |
| Product Type | Interconnect Cable |
| Condition | Brand New |
| Warranty | 12 Months |
| Cable Length | 1.0 meter (3.3 feet) |
| Connector A | Female D-subminiature (DB-type) for 3500 I/O Module |
| Connector B | Pigtail with pre-stripped conductors for terminal block connection |
| Shielding | Overall aluminum/Mylar foil shield with drain wire for EMI/RFI rejection |
| Conductor Gauge | 22 AWG, stranded tinned copper |
| Operating Temperature | -30°C to +100°C (-22°F to +212°F) |
| Jacket Material | Industrial Grade PVC, Gray |
In Oil & Gas and Power Generation applications, the 16710-33 interconnect cable demonstrates high reliability in continuous-duty environments. Its robust construction is engineered to withstand the typical ambient conditions of a plant floor, including moderate vibration and wide temperature swings as specified by its -30°C to +100°C operating range. The cable's performance is defined by its ability to maintain signal integrity for critical measurements on assets like gas and steam turbines, centrifugal and reciprocating compressors, and large pump systems. The multi-layer shielding is effective in mitigating electrical noise from variable frequency drives (VFDs), motors, and high-voltage lines, preventing signal corruption that could lead to false alarms or missed protection events. The design focuses on long-term stability, with high-quality connectors and strain relief that prevent intermittent connections, a common failure point in industrial settings. The 16710-33 is an integral component in achieving the high Mean Time Between Failure (MTBF) rates expected from a SIL-rated machinery protection system.
Q: What systems is the 16710-33 compatible with?
A: The 16710-33 is specifically designed for use with the Bently Nevada 3500 Machinery Protection System. It is used to connect various 3500 I/O modules, such as the 3500/40M Proximitor Monitor, 3500/42M Proximitor/Seismic Monitor, and 3500/45 Position Monitor, to their corresponding external termination blocks (e.g., 3500/25 Keyphasor I/O, 3500/40 External Termination Block) or internal termination I/O modules. Compatibility is dependent on the specific I/O module and termination type being used in the 3500 rack configuration.
Q: What are the installation requirements?
A: Proper installation is critical for system performance. First, ensure all power to the 3500 rack is de-energized before installation. Securely fasten the D-sub connector of the 16710-33 to the rear of the designated I/O module using the integrated jackscrews. Route the cable through designated cable trays, avoiding sharp bends (maintain a minimum bend radius of 10x the cable diameter), pinch points, and proximity to high-voltage power cables to prevent physical damage and noise induction. Land the pre-stripped conductors of the pigtail end onto the correct terminals of the associated terminal block, following the wiring diagram specific to the monitor and transducer type. Ensure proper strain relief is applied to the cable at both ends. The cable's shield drain wire must be terminated correctly, typically at the rack chassis ground terminal only, to prevent ground loops per Bently Nevada system grounding guidelines.
The Bently Nevada 31000-16-05-00-100-03-02 is a proximity probe housing assembly designed for the physical protection and precise positioning of eddy current proximity probes. Its primary function is to provide a rigid, environmentally sealed conduit for mounting a probe to a machine case, enabling accurate measurement of shaft vibration and position. Constructed from 303 stainless steel, the housing offers high resistance to corrosion and physical damage common in industrial environments. This specific assembly, part number 31000-16-05-00-100-03-02, features a 3/4-14 NPT male thread for mounting into the machine case, ensuring a secure and pressure-tight fit. The housing allows for fine adjustment of the probe's distance to the target surface, which is critical for setting the correct DC gap voltage. The signal from the probe, which is an integral part of a complete transducer system, is transmitted through an extension cable to a Proximitor sensor. The Proximitor demodulates this signal into a voltage proportional to the gap, which is then fed into a Bently Nevada 3500 Machinery Protection System for continuous monitoring, analysis, and alarming.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 31000-16-05-00-100-03-02 |
| Product Type | Proximity Probe Housing Assemblies |
| Condition | Brand New |
| Warranty | 12 Months |
| Housing Material | 303 Stainless Steel |
| Mounting Thread | 3/4-14 NPT |
| Standoff Adapter Length | 10.0 inches (254 mm) |
| Total Case Length | 2.1 inches (53 mm) |
| Probe Compatibility | Designed for Bently Nevada 3300 XL 8 mm Proximity Probes |
| Operating Temperature | -34 °C to +177 °C (-29 °F to +350 °F) |
The 31000-16-05-00-100-03-02 housing assembly is engineered for high reliability in demanding industrial settings. In Oil & Gas applications, its 303 stainless steel construction and NPT threaded connection provide excellent resistance to corrosive agents such as hydrogen sulfide (H2S) and ensure pressure containment when installed correctly. In Power Generation environments, the assembly maintains positional stability for the probe across the wide operating temperatures associated with steam and gas turbines, preventing measurement drift due to thermal expansion. The rigid design protects the sensitive probe tip and extension cable from external impact and high vibration, directly contributing to the high Mean Time Between Failures (MTBF) of the overall vibration measurement channel. When installed in accordance with Bently Nevada installation procedures, the housing assembly supports the intrinsic safety and hazardous area certifications of the complete transducer system, making it suitable for deployment in classified locations.
Q: What systems is the 31000-16-05-00-100-03-02 compatible with?
A: The 31000-16-05-00-100-03-02 is an integral component of the Bently Nevada 3300 XL Proximity Transducer System. This system, which includes the probe, extension cable, and a 3300 XL Proximitor Sensor, is designed for direct interface with the Bently Nevada 3500 Machinery Protection System. It is also fully compatible with the legacy 3300 monitoring system. The analog voltage output from the associated Proximitor Sensor can also be integrated with other third-party PLCs, DCS, and data acquisition systems capable of processing a -2 to -18 Vdc signal.
Q: What are the installation requirements?
A: Proper installation is critical for accurate measurement. The machine case requires a mounting hole drilled and tapped for a 3/4-14 NPT thread. An appropriate thread sealant must be applied to the housing's male NPT threads to ensure a pressure-tight seal. The housing is then threaded into the machine case and tightened. The proximity probe is inserted into the housing and its axial position is adjusted to achieve the correct DC gap voltage, typically -10 Vdc for a standard 3300 XL 8 mm probe configuration. Once the gap is set, the probe is secured within the housing using its set screws. Proper system grounding, as detailed in Bently Nevada documentation, is mandatory for signal integrity.
