  4. 31000-00-00-15-000-01-02 | Bently Nevada | Proximity Probe
Sale!
SKU: 330102-00-50-10-01-05

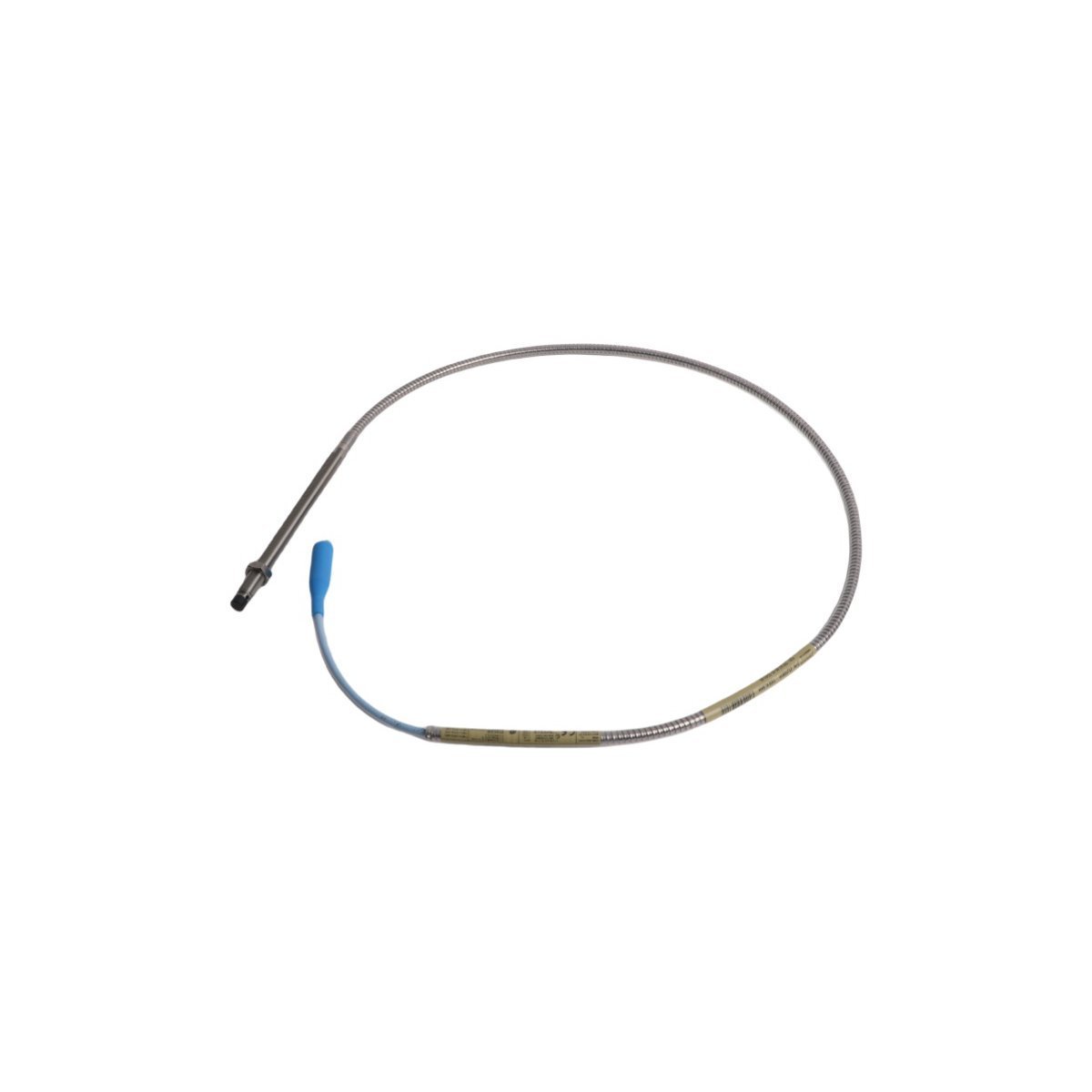

31000-00-00-15-000-01-02 | Bently Nevada | Proximity Probe

The Bently Nevada 31000-00-00-15-000-01-02 proximity probe provides precision vibration and displacement measurement using advanced eddy current technology. Features 8mm probe diameter with polycrystalline diamond tip, 2mm linear range, and 7.87 V/mm scale factor. Operating temperature range of -51°C to +177°C. Compatible with 3300 XL Proximitor sensors and 3500 monitoring systems for critical rotating machinery protection.

Request a Quote

Product Overview

The 31000-00-00-15-000-01-02 is a premium quality Proximity Probe manufactured by Bently Nevada.

Specifications

ParameterSpecification
Model Number31000-00-00-15-000-01-02
ManufacturerBently Nevada (Baker Hughes)
Probe Diameter8 mm (0.315 in)
Linear Range2 mm (80 mils)
Scale Factor7.87 V/mm (200 mV/mil)
Operating Temperature-51°C to +177°C

Applications

  • Industrial automation
  • Process control
