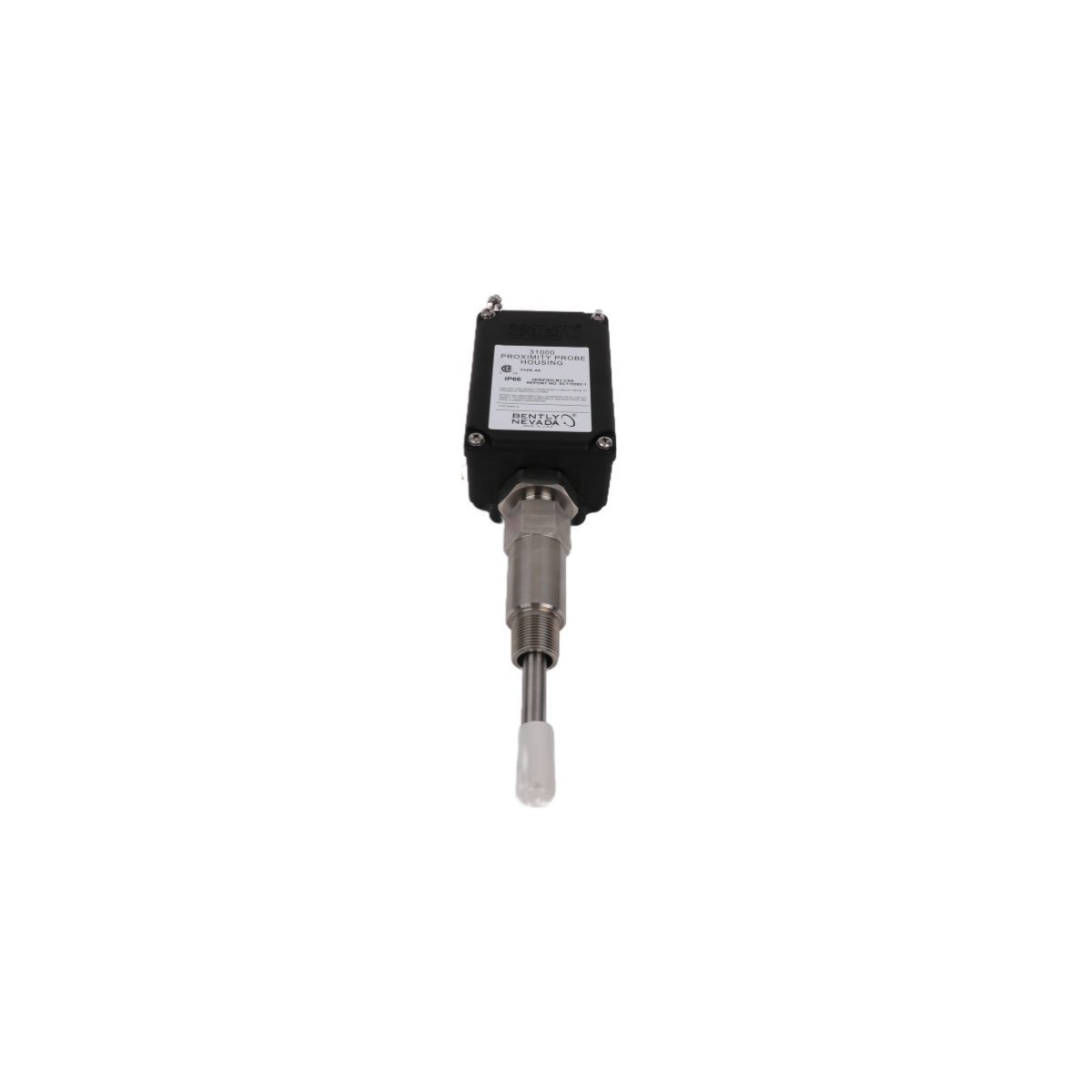

Bently Nevada 31000-16-10-00-050-03-02 Proximity Probe Housing Assemblies

The Bently Nevada 31000-16-10-00-050-03-02, also cataloged as the 31000 Proximity Probe Housing Assemblies, serves as the primary 31000 Proximity Probe Housing Assemblies utilized to execute radial vibration and Keyphasor phase reference measurements across TSI platforms. This mechanical containment sub-assembly isolates and supports internally routed 3300 XL 8 mm proximity probes through machine casings, facilitating external adjustments to the transducer physical gap relative to the rotating shaft without depressurizing the lubrication oil reservoir or halting machinery operations.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The 31000-16-10-00-050-03-02 housing supports stable transducer positioning to isolate measurement paths from structural casing resonances. To maintain loop linearity during shaft relative movement, the assembly layout enables precise probe tip calibration tracking against a nominal gap voltage validation baseline of -10 VDC. The mechanical sealing glands and rigid sleeve boundaries provide localized cross-talk suppression by preventing spatial deflection and keeping proximity sensor fields perpendicular to the target surface of the rotor dynamics loop.

Frequently Asked Questions

Q: Can the internal proximity probe be replaced while the monitored machine is running?

A: Yes. The 31000 series exploded mechanical assembly enables external access, allowing the deployment, calibration, and replacement of the 3300 XL 8 mm probe and extension cable without exposing field technicians to internal machinery moving parts or oil spray.

Q: Is this assembly certified for specific process industries under API regulations?

A: This housing architecture complies fully with the mechanical mounting, penetration, and environmental design mandates outlined in the American Petroleum Institute (API) 670 Standard for machinery protection systems.

Q: How is the probe penetration depth calibrated within this housing model?

A: The depth configuration is modified by adjusting the external standoff adapter nuts while reading the continuous DC gap voltage output at the Proximitor sensor until the standard operational voltage target is locked.

Field Installation Guidelines

• Mounting Thread Integration: Verify clean internal machine casing threads prior to mounting. Secure the housing body to the machine shell using tools that do not mar the outer zinc-plated surface finish.
• Sealing and Gasket Compression: Ensure all O-rings and thread-sealing compounds are compatible with the synthetic or mineral-based lubrication oils used within the bearing housing to avoid fluid leaks.
• Shield Terminations: Route the extension cable exiting the housing through flexible liquid-tight conduit. Connect the conduit ground path directly to the outer casing enclosure wall to eliminate electrostatic noise.
• Explosion-Proof Compliance: Maintain a minimum of 5 full threads of engagement on all explosion-proof conduit junctions and terminal box plugs to maintain the hazardous area classification integrity.
