Order the Bently Nevada 330103-13-23-05-02-00 proximity probe from our secure industrial stock. This 3300 XL 8 mm series sensor offers a reverse-mount configuration for precise TSI machinery protection loops. Brand New unit package with global logistics support. Request an automated quote today.

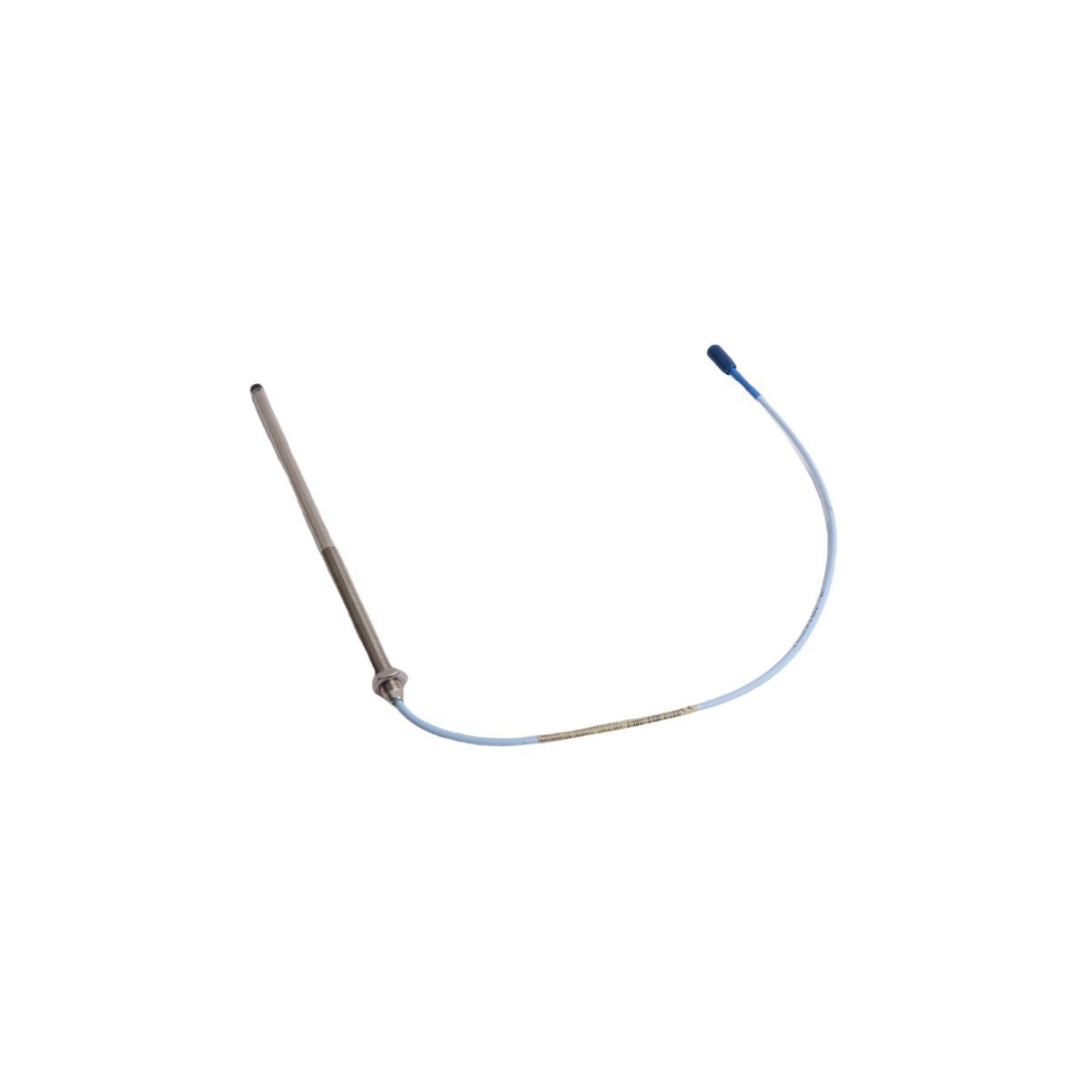

The Bently Nevada 330103-13-23-05-02-00, also cataloged as the 330103 Proximity Probes, operates as a dedicated hardware component for mechanical drift and vibration measurements within TSI platforms. Configured to monitor high-speed rotating shafts, the physical device tracks raw displacement changes relative to its calibrated tip position.
| Parameter | Specification |
|---|---|
| Model | 330103-13-23-05-02-00 |
| Brand | Bently Nevada |
| Origin | USA |
| Weight | 0.12 kg |
| Dimensions | 1.8 x 1.5 x 68 cm |
| Operating Temp | -51 to +177 deg C |
| Power Consumption | Sourced via Proximitor Sensor loop |
| Thread Type | M10 x 1 reverse mount thread |
| Unthreaded Length | 1.3 in |
| Overall Case Length | 2.3 in |
| Total Length | 0.5 m (1.6 ft) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Option | Standard extension cable compatibility |
| Agency Approvals | ATEX, IECEx, Class I Div 1 |
The 330103-13-23-05-02-00 maps structural proximity parameters using eddy-current probe scaling to track physical clearances on active industrial rotors. Driven by connected Proximitor circuitry, the sensor measures structural shaft anomalies by tracking high-frequency loop modulations across its 8 mm tip face. To maintain linear fidelity across its 2.0 mm (80 mils) operational range, field engineers verify gap voltage validation targeted at -10 VDC during physical sensor alignment. Cross-talk suppression constraints mandate strict minimum spacing criteria when deploying twin axial or radial channels over the identical target track to prevent field overlap.
Q: What specific hardware options do the middle digits “13-23-05-02-00” identify?
A: This sequence specifies a reverse mount thread variant with a 1.3-inch unthreaded length, a 2.3-inch case configuration, a 0.5-meter total cable length assembly, miniature coaxial ClickLoc termination, and an unarmored cable finish.
Q: Can this sensor be connected directly to standard PLC analog input channels?
A: No. The proximity probe requires interposing 3300 XL Proximitor hardware to convert raw high-frequency impedance transitions into standard linear voltage signals matching 7.87 V/mm (200 mV/mil).
