Bently Nevada 21000-28-05-00-092-03-02 Proximity Probe Housing Assemblies

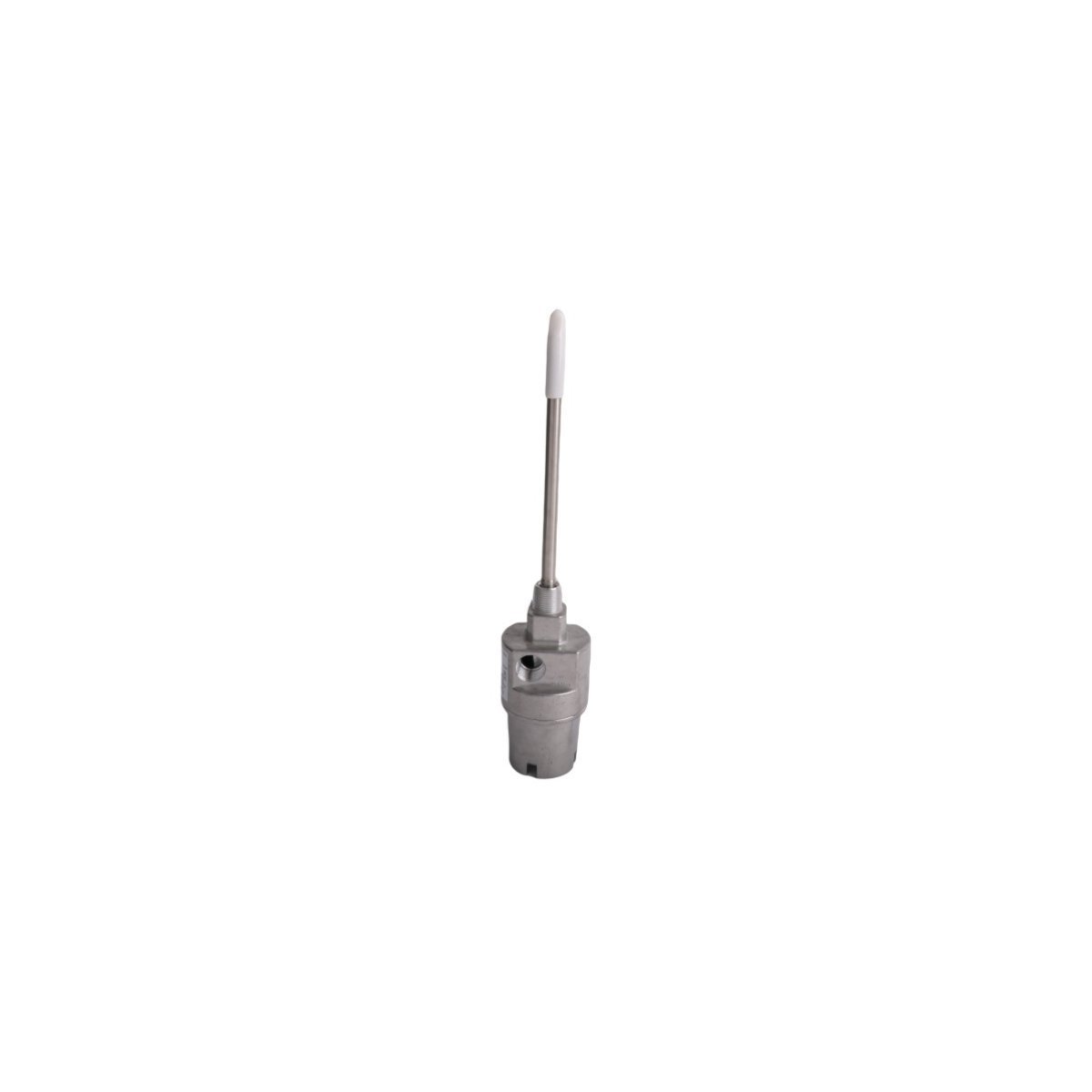

The Bently Nevada 21000-28-05-00-092-03-02, also cataloged as the 21000 Proximity Probe Housing Assemblies, operates as a dedicated hardware component for mechanical encapsulation and positioning of proximity probes within TSI platforms. It establishes the rigid physical containment required to secure eddy-current transducers onto rotating machinery casings, preventing fluid leakage while maintaining precise orientation relative to the target shaft surface.

Hardware Specifications

Eddy-Current Probe Realignment & Gap Voltage Validation

The physical structure of the Bently Nevada 21000-28-05-00-092-03-02 housing allows direct mechanical calibration of internal 8 mm or 5 mm eddy-current proximity probes. During commissioning, installation engineers utilize the external adjustment sleeve to set the physical gap distance between the probe tip and the rotor journal. Accurate positioning requires active gap voltage validation across the driver or Proximitor circuit. The target static bias voltage must be adjusted to -10 VDC nominal (typically within the -9 VDC to -11 VDC linear range), corresponding to the center point of the electrical scale for rotor dynamics monitoring. This mechanical isolation path minimizes signal cross-talk suppression requirements across dense multi-probe radial configurations.

Frequently Asked Questions

Q: Does this housing assembly include the proximity probe or Proximitor sensor?

A: No. The assembly is a mechanical protective housing. The proximity probe, extension cables, and Proximitor sensors must be specified and obtained separately.

Q: What is the mechanical role of the suffix configuration in the 21000 housing series?

A: Suffix parameters dictate exact physical attributes, including overall sleeve length, probe thread types, explosion-proof conduit port options, and specific internal sealing o-ring materials for process fluid containment.

Field Installation Guidelines

• Explosion-Proof / Flameproof Conduit Sealing: When deploying the assembly in hazardous environments, thread engagement must meet standard NPT guidelines (minimum 5 full threads engaged). Apply certified industrial thread compound to maintain environmental ratings.
• Shield Grounding Protocol: The probe cable running through the internal sleeve must maintain a continuous shield layer. Ground the shield exclusively at the monitor rack/Proximitor housing end. Do not allow the shield to contact the physical metal casing of the 21000 housing at the machine exterior.
• O-Ring Compression & Fluid Seal: Inspect the pre-installed elastomeric seals before mounting. Torque the outer locknuts to factory limits to ensure uniform compression, mitigating the migration of lubrication oils or process steam through the sleeve penetration.
