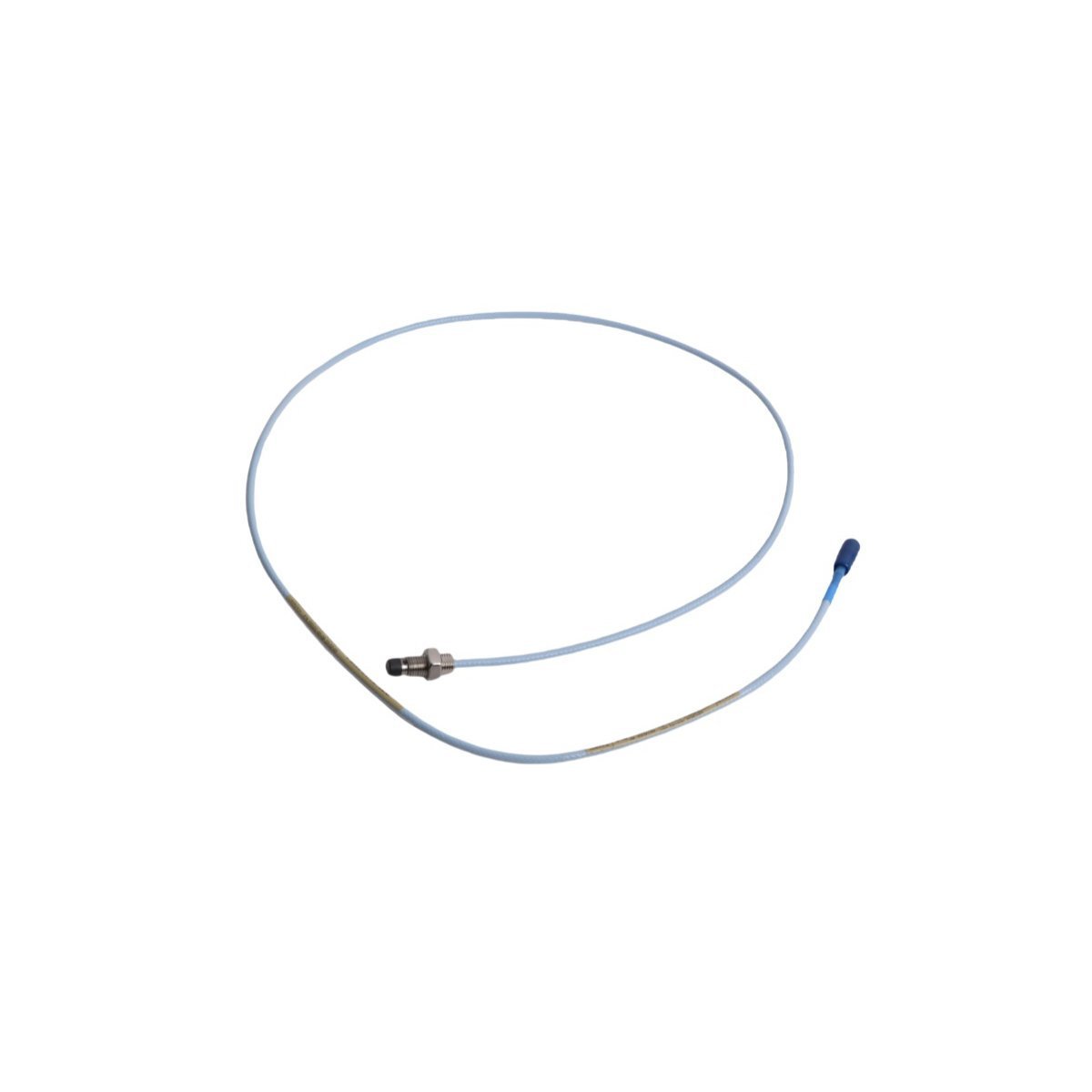

Secure the Bently Nevada 330101-00-08-10-11-00 proximity probe from our original stock inventory. Features an 8 mm tip diameter and a 1.0 m total cable length for exact TSI system machinery monitoring. Brand New product complete with full global shipping solutions. Contact our engineering desk for immediate dispatch procurement.
Configured for mechanical drift and vibration measurements in machinery protection platforms, the Bently Nevada 330101-00-08-10-11-00 (330101 Proximity Probe) provides direct physical execution of eddy-current displacement sensing. The hardware operates by generating a high-frequency electromagnetic field over the target rotor surface to detect dynamically shifting clearances.
| Parameter | Specification |
|---|---|
| Model | 330101-00-08-10-11-00 |
| Brand | Bently Nevada |
| Origin | USA |
| Weight | 0.1 kg |
| Dimensions | 20.5 x 22.4 x 3.3 cm |
| Operating Temp | -51 to +177 deg C |
| Power Consumption | Driven by Proximitor Sensor power loop |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF thread |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 0.8 in |
| Total Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Agency Approvals | ATEX, IECEx, Class I Div 1 / Div 2 |
The 330101-00-08-10-11-00 utilizes eddy-current probe scaling to convert the physical gap into an analog electrical voltage. During operation, the proximity probe interacts with a 3300 XL Proximitor Sensor to establish a linear range of 2.0 mm (80 mils) with a nominal scale factor of 7.87 V/mm (200 mV/mil). Static gap voltage validation demands a baseline target calibration centering around -10 VDC within the middle of the linear operational band. Cross-talk suppression protocols are executed via explicit physical spacing constraints between adjacent probes to prevent electromagnetic interference from distorting rotor dynamics data.
Q: What is the significance of the “00-08-10-11-00” suffix configuration?
A: The breakdown indicates an unthreaded length of 0.0 inches, an overall case length of 0.8 inches, a total length of 1.0 meter, miniature coaxial ClickLoc connectors, and standard fluid-resistant armor packaging without specialized options.
Q: How should the gap voltage be verified during physical installation?
A: Connect a calibrated digital multimeter to the Proximitor Sensor terminal layer. Adjust the physical depth of the probe within its mounting bracket until the multimeter registers a static output value of -10 VDC, corresponding to the linear physical midpoint.
