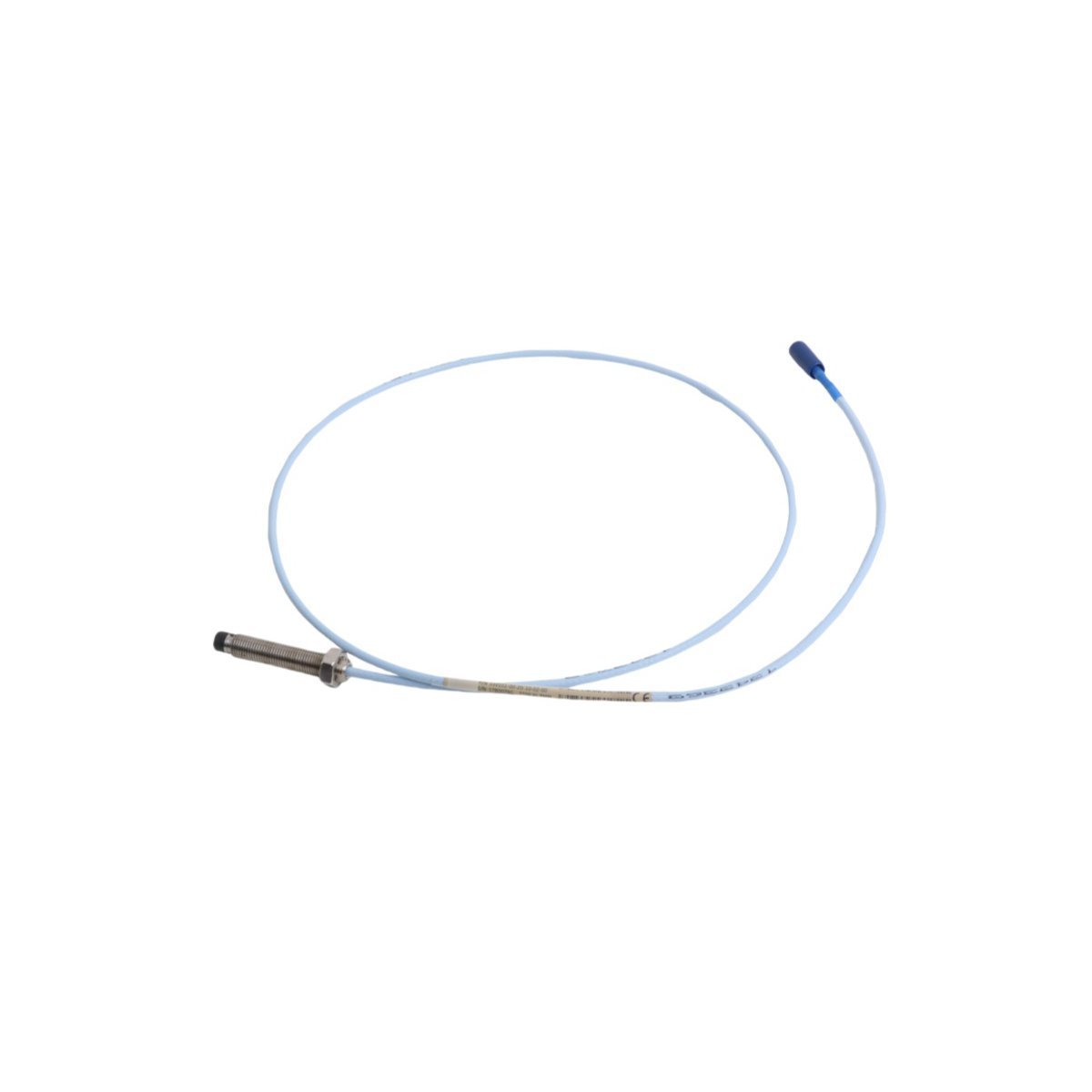

The Bently Nevada 330101-00-20-10-11-00 proximity probe provides precision vibration and displacement measurement using advanced eddy current technology. Features 8mm probe diameter with polycrystalline diamond tip, 2mm linear range, and 7.87 V/mm scale factor. Operating temperature range of -51°C to +177°C.
The 330101-00-20-10-11-00 is a premium quality Proximity Probe manufactured by Bently Nevada. This product is designed for professional industrial automation and control applications, delivering exceptional performance and reliability.
| Parameter | Specification |
|---|---|
| Model Number | 330101-00-20-10-11-00 |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Product Series | 3300 XL 8mm Proximity Probe |
| Probe Diameter | 8 mm (0.315 in) |
| Probe Tip Material | Polycrystalline diamond |
| Linear Range | 2 mm (80 mils) nominal |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Target Material | 4140 Steel (AISI) – standard |
| Cable Type | Coaxial with ETFE jacket |
| Connector Type | Miniature coaxial click-lock |
| Operating Temperature | -51 to +177 °C (-60 to +350 °F) |
| Maximum Pressure | 34 bar (500 psi) |
| Agency Approvals | CSA/NRTL/C, ATEX, IECEx |
Part Number: 330101-00-20-10-11-00
Manufacturer: Bently Nevada
Condition: Brand New
Warranty: 12 Months
Stock: In Stock
