SKU: 330102-04-56-10-02-00

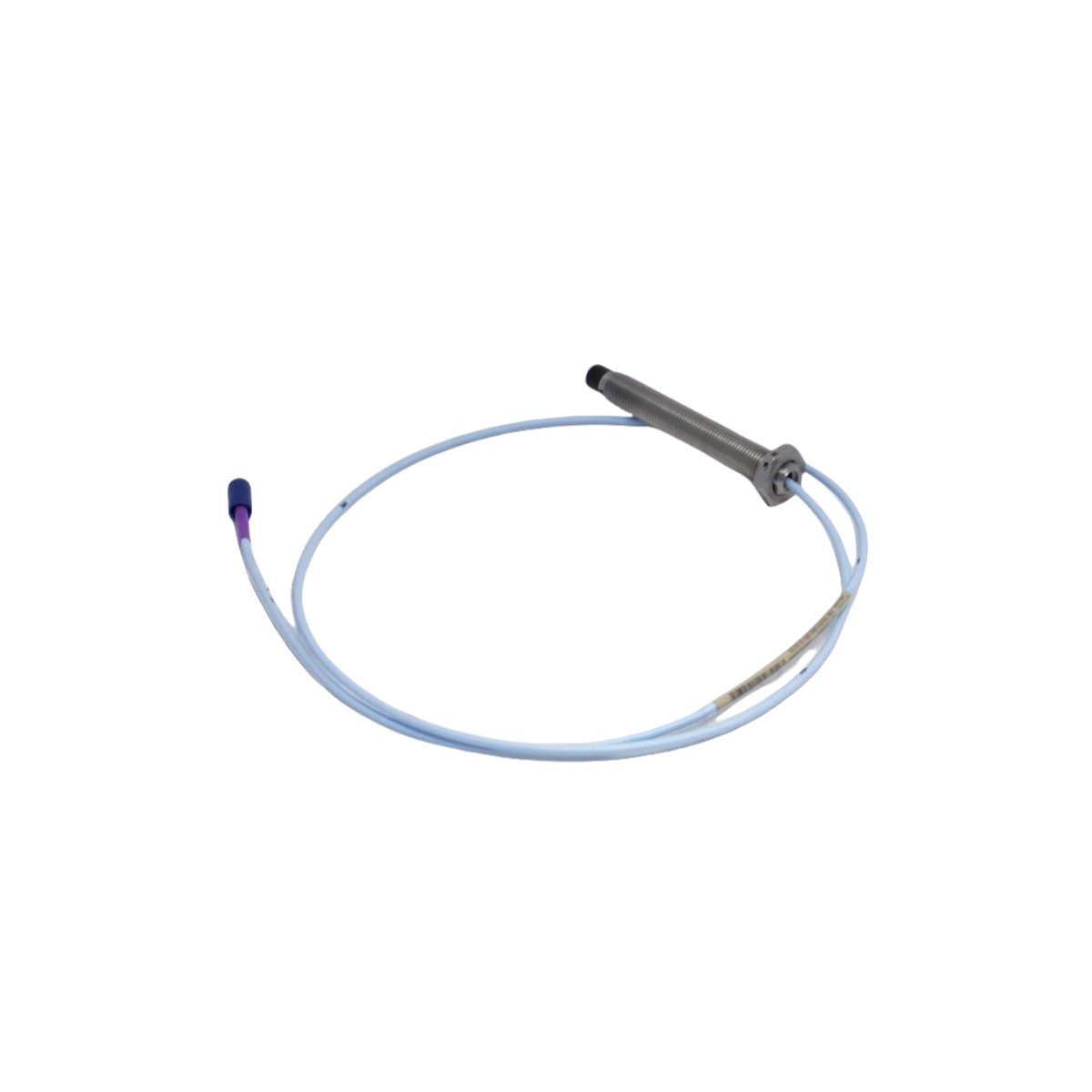

330102-04-56-10-02-00 | Bently Nevada | Proximity Probe
The Bently Nevada 330102-04-56-10-02-00 proximity probe provides precision vibration and displacement measurement using advanced eddy current technology. Features 8mm probe diameter with polycrystalline diamond tip, 2mm linear range, and 7.87 V/mm scale factor. Operating temperature range of -51°C to +177°C.
Product Overview
The 330102-04-56-10-02-00 is a premium quality Proximity Probe manufactured by Bently Nevada. This product is designed for professional industrial automation and control applications, delivering exceptional performance and reliability.
Key Features
- Genuine OEM Product: 100% authentic Bently Nevada product with full manufacturer warranty
- Brand New Condition: Sealed in original packaging, never used
- Industrial Grade: Built to withstand harsh industrial environments
- Full Compatibility: Seamless integration with Bently Nevada control systems
- Tested & Certified: Meets all OEM specifications and industry standards
Detailed Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330102-04-56-10-02-00 |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Product Series | 3300 XL 8mm Proximity Probe |
| Probe Diameter | 8 mm (0.315 in) |
| Probe Tip Material | Polycrystalline diamond |
| Linear Range | 2 mm (80 mils) nominal |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Target Material | 4140 Steel (AISI) – standard |
| Cable Type | Coaxial with ETFE jacket |
| Connector Type | Miniature coaxial click-lock |
| Operating Temperature | -51 to +177 °C (-60 to +350 °F) |
| Maximum Pressure | 34 bar (500 psi) |
| Agency Approvals | CSA/NRTL/C, ATEX, IECEx |
Applications
- Industrial automation and process control
- Manufacturing and production facilities
- Power generation and distribution
- Oil and gas processing
- Chemical and petrochemical plants
Order Information
Part Number: 330102-04-56-10-02-00
Manufacturer: Bently Nevada
Condition: Brand New
Warranty: 12 Months
Stock: In Stock
