330130-085-01-05 Product datasheet
Model number: | 330130-085-01-05 | Module Type： | 3300 XL Standard Extension Cable | |
Manufacture: | Bently Nevada | Condition： | Brand New | |
Range of Product: | 3300 Series | Lead time： | In Stock | |
Weight: | 0.82 kg | HS CODE： | 8537101190 | |
Dimension: | 30×30×3cm | MOQ: | 1 | |
Product Origin: | USA | System： | TSI | |
Discontinued on: | active | Communication Service: | Ethernet router |
330130-085-01-05 Functional Description

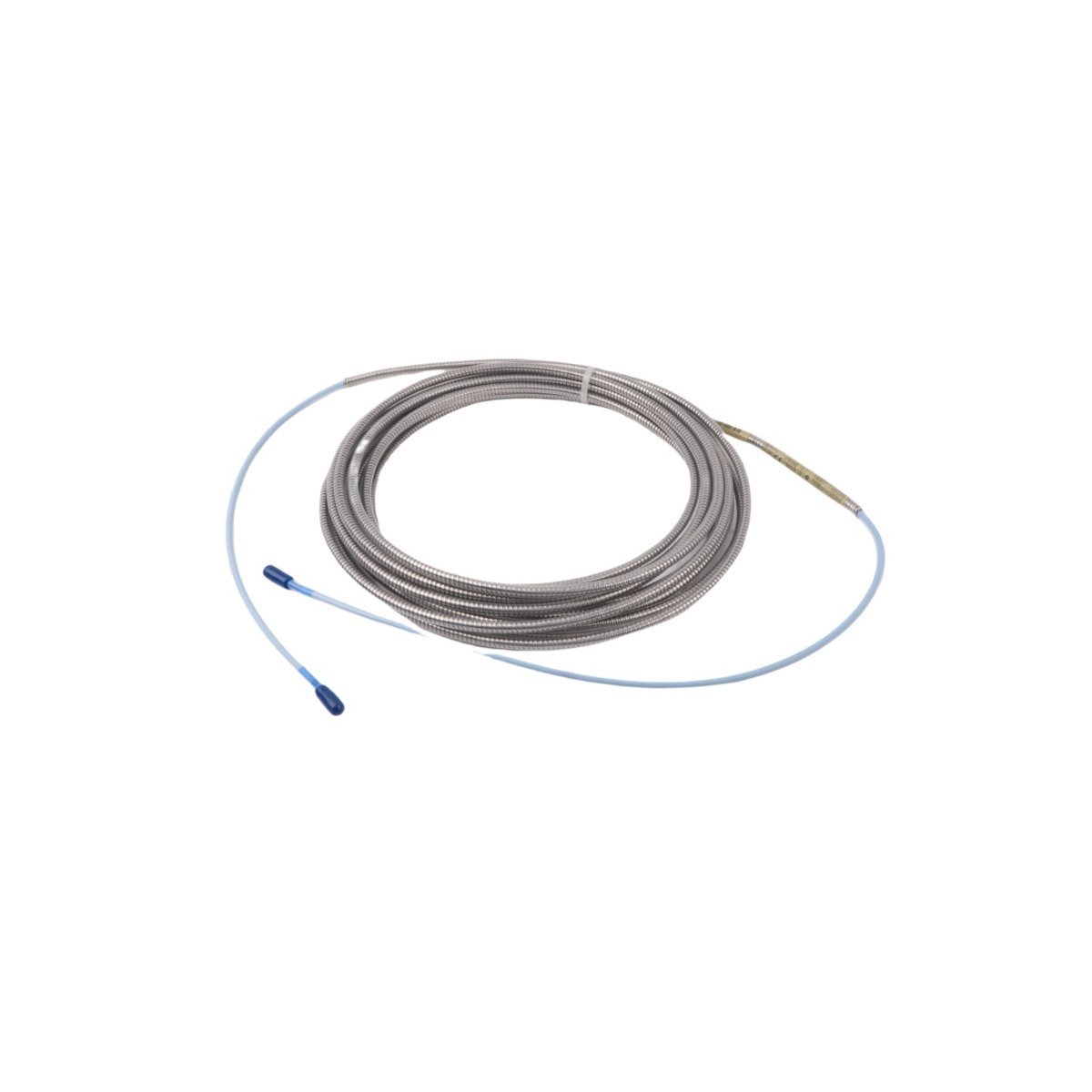

TheBently Nevada 330130-085-01-05 3300 XL Standard Extension Cableis a critical component of the 3300 XL 8mm Proximity Transducer System, serving as a high-performance 5-meter extension cable. This system, which includes a probe, extension cable, and Proximitor Sensor, delivers precise voltage outputs proportional to target distance for both static position and dynamic vibration measurements. The 3300 XL 8 mm Probe Cable 330130-085-01-05 Bently Nevadamaintains this exceptional signal integrity throughout its length.
Designed for fluid-film bearing machines and Keyphasor applications, the 30130-085-01-05 Probe Cable Bently Nevadaenables accurate vibration and position monitoring. As part of the eddy current transducer system, it helps achieve the industry’s most advanced performance levels. The Bently Nevada 330130-085-01-05 contributes to the system’s compliance with API 670 Standards for configuration, linearity, and temperature stability.
A key advantage of the Bently Nevada 330130-085-01-05 PDFis its complete compatibility with all 3300 XL 8mm components. This plug-and-play design eliminates time-consuming calibration requirements, allowing the Bently Nevada 330130-085-01-05 to work seamlessly with various probes and sensors without individual matching.
The rugged construction of the 3300 XL Standard Extension Cable 330130-085-01-05ensures reliable operation in demanding environments. Whether used for machinery protection or condition monitoring, this extension cable delivers the durability and precision expected from Bently Nevada’s 3300 XL series.
The Emerson EPRO PR6423/010-000 CON021 Eddy Current Signal Converter delivers ultra-precise, non-contact displacement and vibration measurements for critical rotating machinery. Featuring an tip diameter, a rugged stainless steel housing, and advanced internal temperature compensation, it provides reliable, continuous asset protection and seamless DCS integration in harsh, high-pressure industrial environments.
The Emerson Ovation 1P00028G01 Remote Node Transition Panel provides robust signal routing and high-integrity electrical isolation for legacy Ovation Distributed Control Systems (DCS). Operating at 220V AC across an ultra-wide temperature range of -40°C to +85°C, this compact transition panel eliminates field line noise and ensures reliable, deterministic peer-to-peer communication between remote I/O nodes and central controllers in demanding industrial environments.
The Bently Nevada 330102-00-60-10-01-05 is an 8 mm reverse-mount eddy current proximity probe designed for non-contact measurement of vibration and displacement. It functions as a core component of the 3300 XL 8 mm Proximity Transducer System, which also includes an extension cable and a Proximitor Sensor. The probe operates by having the Proximitor Sensor generate a high-frequency radio frequency (RF) signal, which is transmitted through the extension cable and radiated from the probe's tip into a small electromagnetic field. When a conductive target, such as a machine shaft, enters this field, eddy currents are induced on its surface. These currents create a secondary magnetic field that opposes the primary field, causing a measurable change in the RF signal's amplitude. This change is directly proportional to the gap between the probe tip and the target surface. The Proximitor Sensor demodulates this signal, converting it into a DC voltage that accurately represents the physical distance. This conditioned voltage signal is then transmitted to a monitoring system, such as the Bently Nevada 3500, for real-time analysis of radial vibration, axial position, and shaft speed.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330102-00-60-10-01-05 |
| Product Type | 3300 XL 8 mm Reverse Mount Proximity Probe |
| Condition | Brand New |
| Warranty | 12 Months |
| Total Length | 1.0 meter (3.3 feet) |
| Case Length | 6.0 inches (152 mm) |
| Mounting Option | Reverse Mount |
| Connector Type | Miniature coaxial ClickLocâ„¢ connector, gold-plated |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 304 Stainless Steel |
| Agency Approvals | Multiple Approvals: CSA (Class I, Div 1/2), ATEX/IECEx (Zone 0/1) |
In Oil & Gas and Power Generation applications, the 330102-00-60-10-01-05 probe demonstrates high reliability in demanding operational environments. Its construction with a PPS tip and stainless steel case allows for continuous operation in temperatures ranging from -34 °C to +177 °C (-29 °F to +350 °F). The gold-plated ClickLoc connector provides a secure, corrosion-resistant connection that prevents signal degradation from fluid ingress or vibration-induced intermittence. When paired with a 3300 XL Proximitor Sensor, the system provides a linear measurement range of 2.0 mm (80 mils) with a scale factor of 7.87 V/mm (200 mV/mil), ensuring precise data for machine diagnostics. The system is designed for high immunity to radio frequency interference (RFI), minimizing signal corruption in electrically noisy industrial environments. The probe's physical durability and signal integrity are critical for monitoring high-speed turbomachinery, where accurate measurement of shaft dynamics is essential for preventing catastrophic failure.
Q: What systems is the 330102-00-60-10-01-05 compatible with?
A: The 330102-00-60-10-01-05 probe is a component of the 3300 XL 8 mm Transducer System. For proper operation, it must be used with a 3300 XL extension cable and a 3300 XL Proximitor Sensor (e.g., part number 330180). This complete transducer system is fully compatible with Bently Nevada monitoring systems, including the 3500 Series Machinery Protection System and ADRE Sxp/408 DSPi data acquisition systems. It is not electrically or mechanically compatible with components from other transducer series, such as the 7200 or 3000 series.
Q: What are the installation requirements?
A: As a reverse-mount probe, the 330102-00-60-10-01-05 is installed from inside the machine housing, with the probe body extending outward. A clearance hole must be drilled through the machine case to accommodate the 8 mm probe tip. The target area on the observed shaft must be smooth, free of surface defects, and have a minimum diameter of 10.7 mm (0.42 in) to ensure measurement accuracy. The probe's gap should be set to the center of its linear range, typically corresponding to -10.0 Vdc. The ClickLoc connector must be tightened to the specified torque to ensure a secure, environmentally sealed connection. Cable routing must avoid areas of extreme heat, physical abrasion, and proximity to high-voltage power lines to maintain signal integrity.
The Bently Nevada 21000-16-10-15-075-03-02 is a genuine industrial component designed for critical automation systems. This high-quality product delivers reliable performance in demanding industrial environments.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 21000-16-10-15-075-03-02 |
| Condition | Brand New |
| Warranty | 12 Months |
Q: Is this a genuine Bently Nevada product?
A: Yes, this is a 100% genuine product with full manufacturer warranty.
Q: What is the warranty period?
A: All products come with a standard 12-month warranty.
