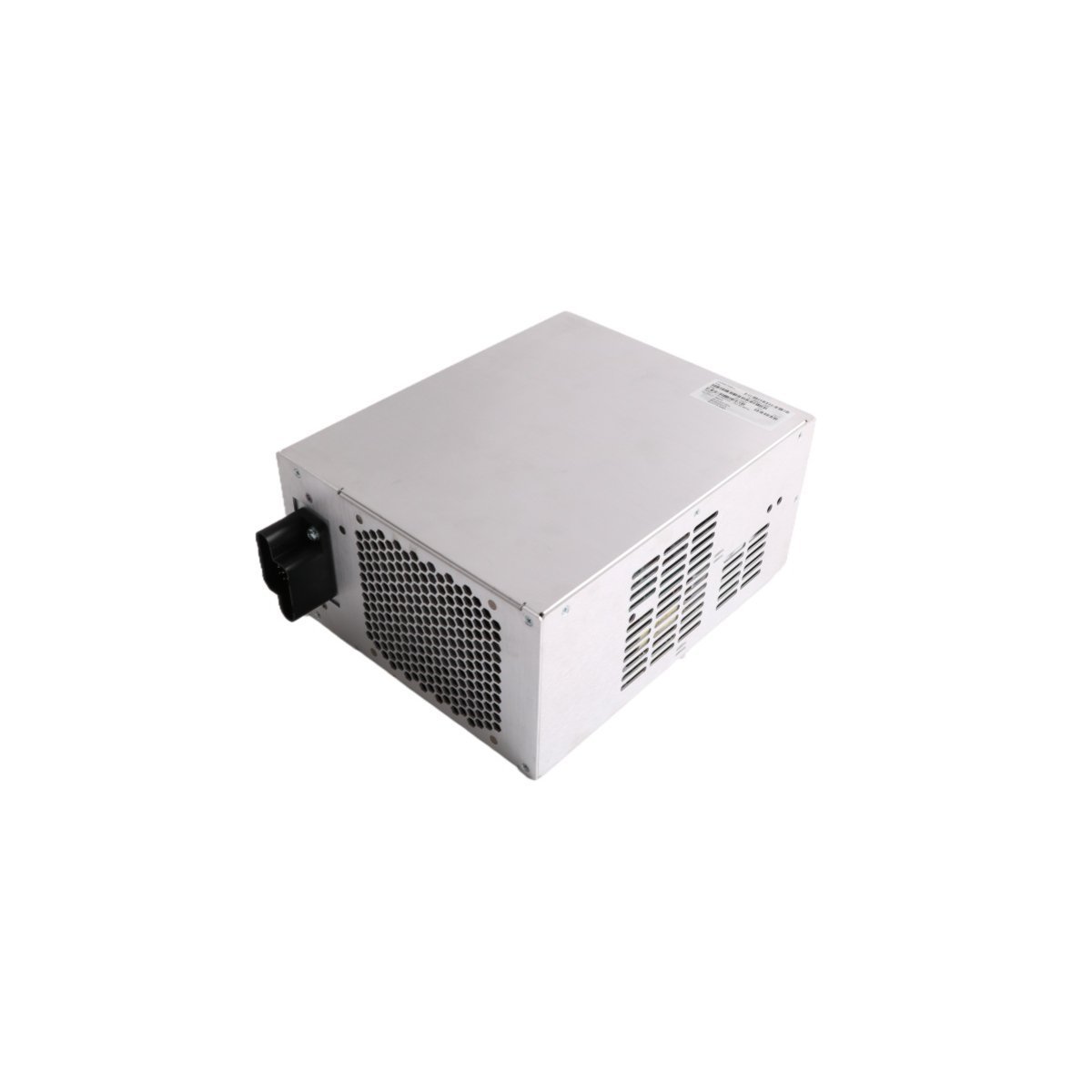

HONEYWELL 51198947-100 HPM Power Supply

The HONEYWELL 51198947-100, also cataloged as the 51198947-100 HPM Power Supply 20A, operates as a dedicated hardware component for stable DC voltage generation and regulation within DCS (High-Performance Process Manager) chassis platforms. The component supplies filtered backplane power to local I/O processors and fieldbus communication interfaces.

Hardware Specifications

Process Control & DCS Power Distribution

The hardware features dual-diode auctioneering circuits to facilitate parallel redundancy and hot-standby power configurations across the chassis backplane. It utilizes specialized channel-to-channel isolation matrices to isolate AC line transients from sensitive control electronics, maintaining tight line and load regulation. Integrated overvoltage, overcurrent, and thermal shutdown mechanisms execute automated fail-safe state execution during distribution faults.

Frequently Asked Questions

Q: How is the choice between 115 VAC and 240 VAC input configurations accomplished on this model?

A: Terminal jumper placement or internal switch routing determines the target input voltage range; this selection must match local line conditions prior to initial energization.

Q: What mechanisms ensure current balance in dual redundant configurations?

A: Internal active load-sharing circuitry balances output current demands between redundant power supplies linked on the same backplane infrastructure.

Field Installation Guidelines

1. Mount the power supply frame within an environment free of conductive dust, ensuring the internal chassis frame secures an explicit low-impedance ground path to the main cabinet earth bar.
2. Ensure input power is completely isolated at the external circuit breaker before executing terminal block connections to the 115/240 VAC inputs.
3. Allow for a minimum of 40 mm convective clearance around all ventilated surfaces to prevent local thermal saturation within closed housings.
