SKU: 1771-P6S/B

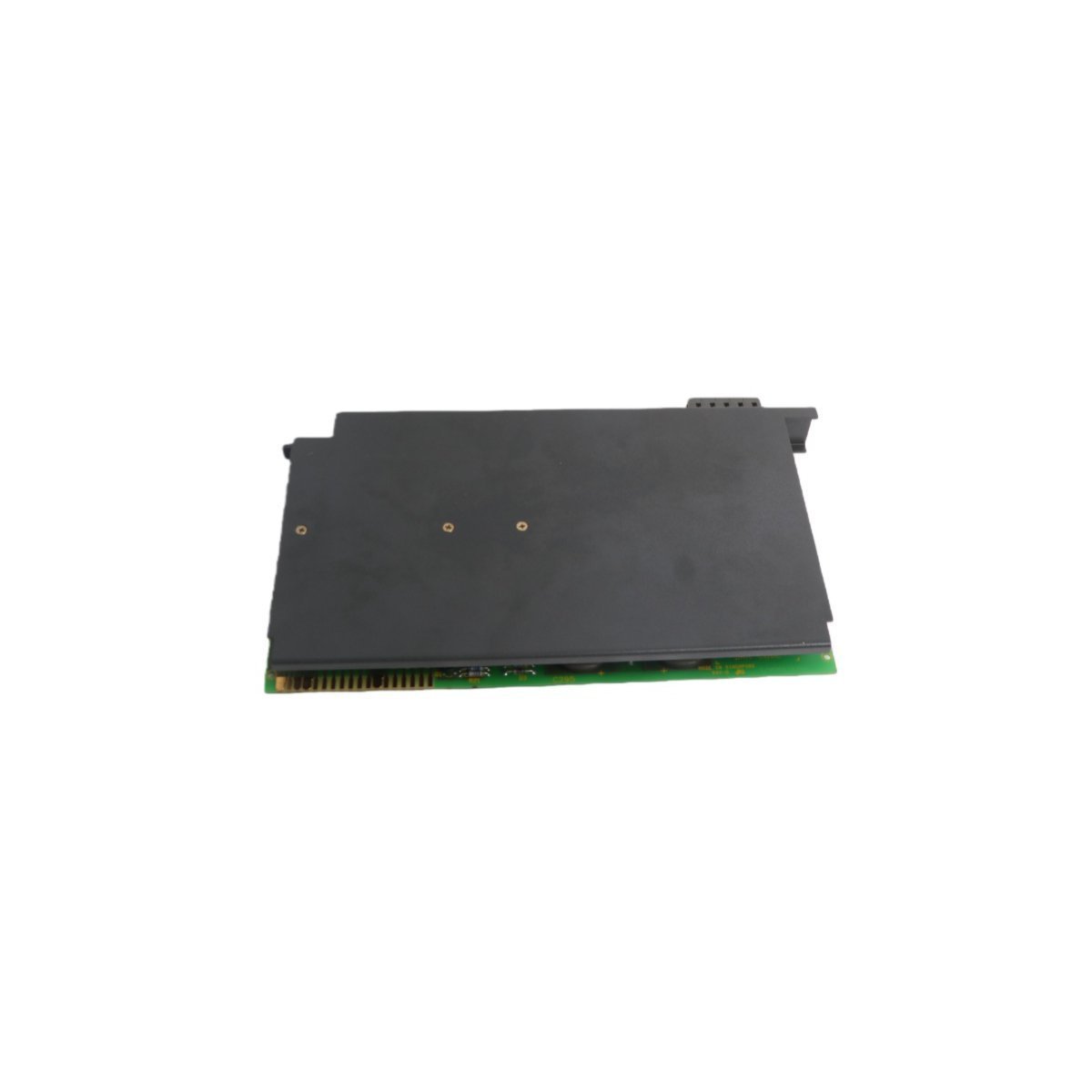

Allen-Bradley 1771-P6S/B PLC-5 Power Supply Module

The Allen-Bradley 1771-P6S/B is an 8.0A standalone power supply module for the PLC-5 1771 Universal I/O chassis. Featuring 120V AC input and 5V DC output, it delivers stabilized power for high-density I/O configurations while providing integrated short-circuit protection.

Primary System Role

The Allen-Bradley 1771-P6S/B functions as a high-reliability power source specifically designed for the PLC-5 Universal I/O chassis. By converting raw input power into stabilized DC voltage, this module energizes the backplane to support various I/O and communication modules. To ensure maximum system uptime, the “S” variant features dedicated circuitry for standalone operation while maintaining the robust filtering necessary for industrial environments. Because it occupies a specific slot in the 1771 chassis, it provides a direct, low-impedance connection that protects the integrity of the logic signals throughout the rack.

Enhanced Technical Performance

Ensures Consistent Power Delivery: The module utilizes advanced regulation circuits to suppress line spikes and voltage drops. In doing so, it provides a clean energy stream that prevents the processor from experiencing parity errors or unexpected resets.
Simplifies Rack Configuration: The 1771-P6S/B installs directly onto the left-hand side of the I/O chassis. Consequently, this eliminates the need for external wiring between the power supply and the backplane, effectively reducing potential points of failure.
Supports High-Current Loads: With its substantial output capacity, the module handles racks filled with high-density digital or complex analog I/O. Therefore, it allows engineers to maximize the utilization of each 1771 chassis without fearing power starvation.
Enhances Fault Diagnostics: Beyond simple power conversion, the unit features front-panel indicators that monitor the health of the output voltage. As a result, maintenance teams can quickly distinguish between a power failure and a logic error during system troubleshooting.
Maintains Operational Safety: Finally, the module includes integrated overvoltage and short-circuit protection. Should an electrical fault occur, the unit immediately shuts down its output to safeguard the expensive I/O modules and processors mounted in the same rack.
