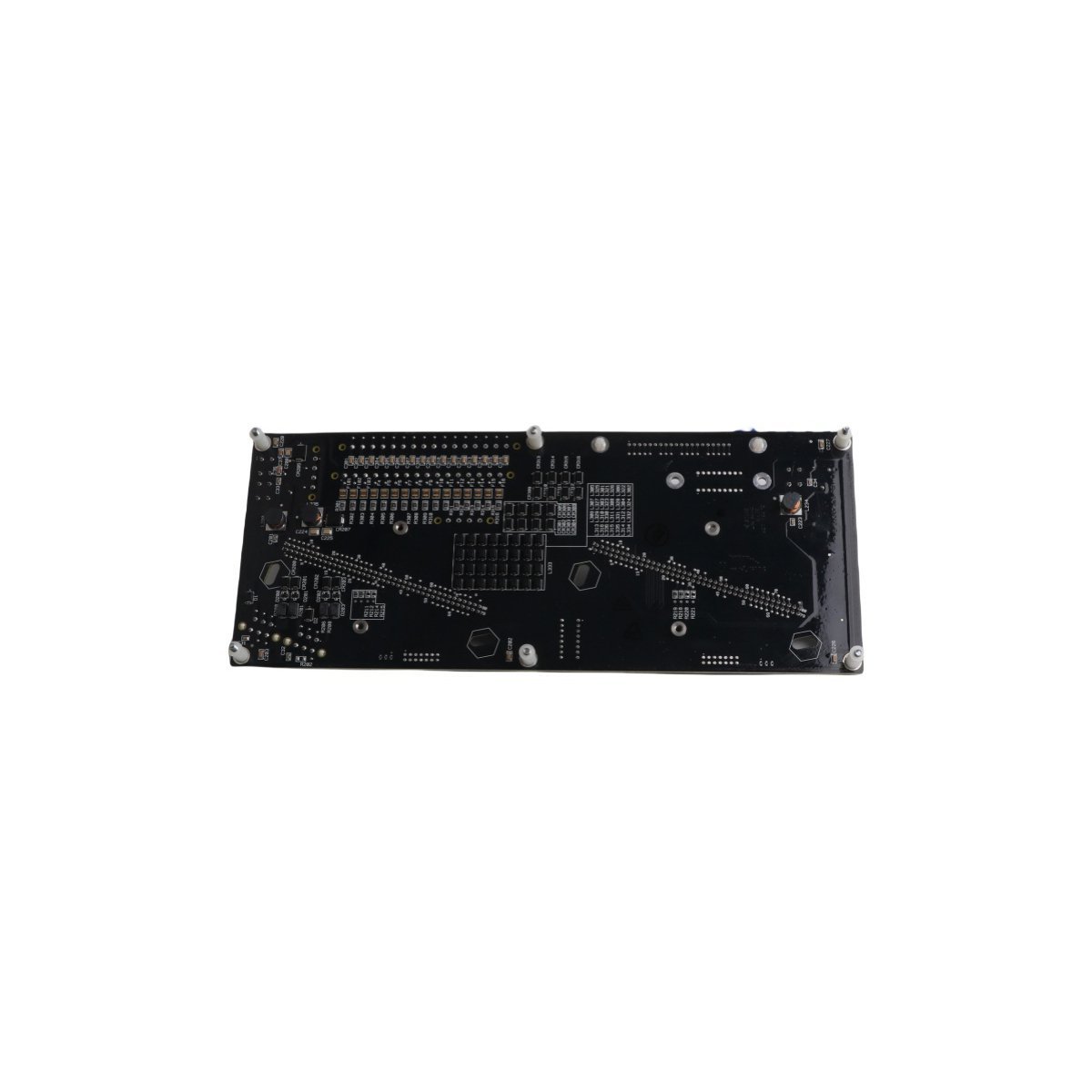

HONEYWELL Series C 8C-TAIXB1 51307129-175 Analog Input Module

The Honeywell 8C-TAIXB1 (engineering part number 51307129-175) is a premium, high-density Analog Input Termination Assembly (IOTA) and module combination within the Honeywell Series C I/O family. Purpose-built for the Experion® Process Knowledge System (PKS) platform, this Series C component processes high-accuracy analog field variables—such as pressure, level, flow, and temperature transmitter signals—converting raw analog field currents into digitized values for the upstream C300 controller.

Hardware Specifications

Signal Integrity & Advanced Galvanic Isolation

The 8C-TAIXB1 features high-tier electrical isolation metrics designed to survive electrically noisy industrial plant floors. Utilizing robust galvanic isolation barriers, the incoming analog loop channels are decoupled from the delicate processing core and backplane logic. This architecture ensures that field-side problems—such as high-voltage common-mode spikes, ground loops, or lightning-induced transients—remain safely contained at the terminal block layer, preserving the integrity of adjacent loops.

Additionally, the module features built-in loop current sensing circuitry with internal short-circuit protection. It can dynamically supply on-board excitation power (24 VDC) to drive standard 2-wire field transmitters, which slashes systemic costs by eliminating the space and hardware requirements for third-party marshalling power supplies.

Frequently Asked Questions

Q: Can the 8C-TAIXB1 operate in redundant control topologies? A: Yes. The Series C architecture natively supports redundancy. When paired with a redundant IOTA block configuration, two active input cards operate in parallel. The secondary module mirrors processing tasks and instantly takes over loop telemetry if the primary unit triggers an internal self-diagnostic hardware fault.

Q: What field transmitter types can be wired into this module? A: The 8C-TAIXB1 primarily interfaces with standard 4–20 mA or 1–5 VDC process loops. It can handle both 2-wire loops (where the module provides active field excitation) and 3-wire or 4-wire setups (where the field instruments utilize an external power source).

Field Installation Guidelines

• Vertical Orientation Mounting: Mount the Series C IOTA block vertically onto the specialized cabinet channel carriers. The vertical alignment allows the module’s fins to maximize natural thermal convection currents, keeping internal components within optimal thermal limits.
• Shield Grounding Infrastructure: Connect field-side instrument cable shields to the dedicated instrument ground bus bar provided inside the cabinet enclosure. Do not tie shields to both ends of the loop to avoid creating ground loops.
• Firmware Synchronization: When replacing an active module or adding a node to a live Experion network, check that the hardware revision matches the loaded block parameters inside your Experion Configuration Studio database to prevent system loading errors.
