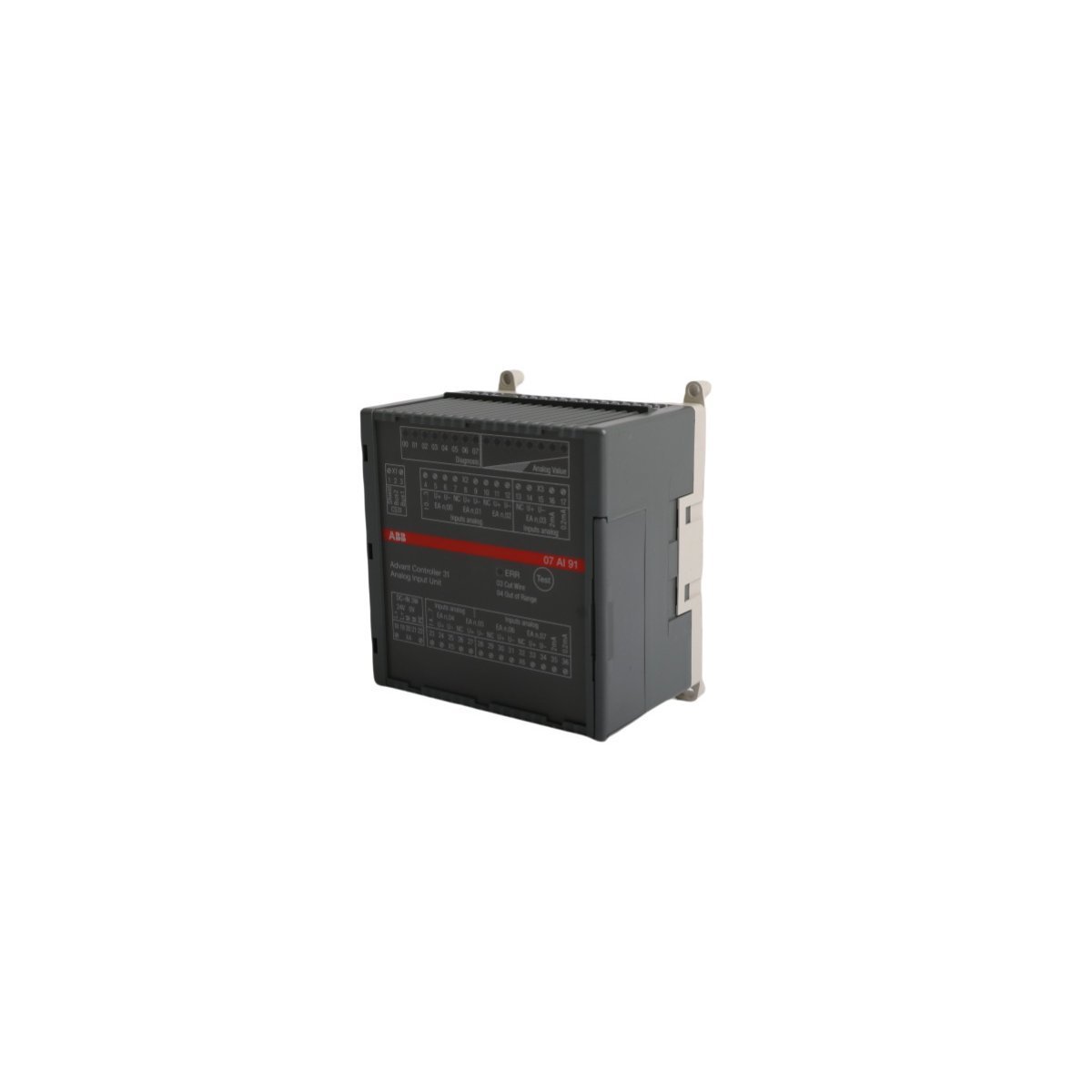

ABB 07AI91 GJR5251600R0278 Advant Controller Analog I/O Module

Functional Performance

The ABB 07AI91 serves as a high-precision analog interface for the Advant Controller 31 (AC31) system. Specifically, this module enables the controller to communicate with complex field instruments by converting physical variables—such as temperature, pressure, and flow—into digital data. By utilizing eight dedicated input channels, the 07AI91 accurately processes various signal types, including voltage, current, and RTD inputs. To maintain system integrity, the module performs internal self-diagnostics and continuously monitors for hardware faults, ensuring that the process data remains reliable for critical decision-making.

Operational Characteristics

• Ensures High Signal Precision: The module features a high-resolution A/D converter. In doing so, it captures minute fluctuations in field signals, which allows the DCS to maintain extremely tight control over sensitive industrial processes.
• Simplifies Multi-Signal Integration: The hardware supports multiple ranges, such as 0–10V, 0–20mA, and 4–20mA. As a result, engineers can connect a diverse array of sensors to a single module, effectively streamlining the system architecture.
• Protects Sensitive Logic: Each input path includes robust electrical isolation. Consequently, the unit prevents external electrical surges or ground loops from damaging the central processor, thereby extending the lifespan of the entire control system.
• Facilitates Rapid Troubleshooting: Front-panel indicators provide immediate status updates regarding power and channel health. Therefore, maintenance teams can pinpoint signal failures at the module level without needing complex external testing equipment.
• Optimizes Legacy System Life: Furthermore, this module provides a reliable solution for maintaining existing Advant 31 installations. By offering a direct replacement path, it allows facilities to avoid expensive full-scale migrations while maintaining peak operational efficiency.

Technical Specifications

• Article Number: GJR5251600R0278
• Model Identifier: 07AI91
• Product Series: Advant Controller 31
• Input Channels: 8 Analog Inputs
• Signal Types: 0…10V, 0…20mA, 4…20mA, Pt100, Pt1000
• Resolution: 12-bit plus sign
• Galvanic Isolation: Yes
• Power Supply Requirement: 24 V DC
• Current Consumption: Approx. 100 mA
• Interface Connection: CS31 System Bus
• Mounting Type: DIN Rail
• Protection Rating: IP20
• Operating Temperature: 0 °C to +55 °C
• Net Weight: 0.3 kg
