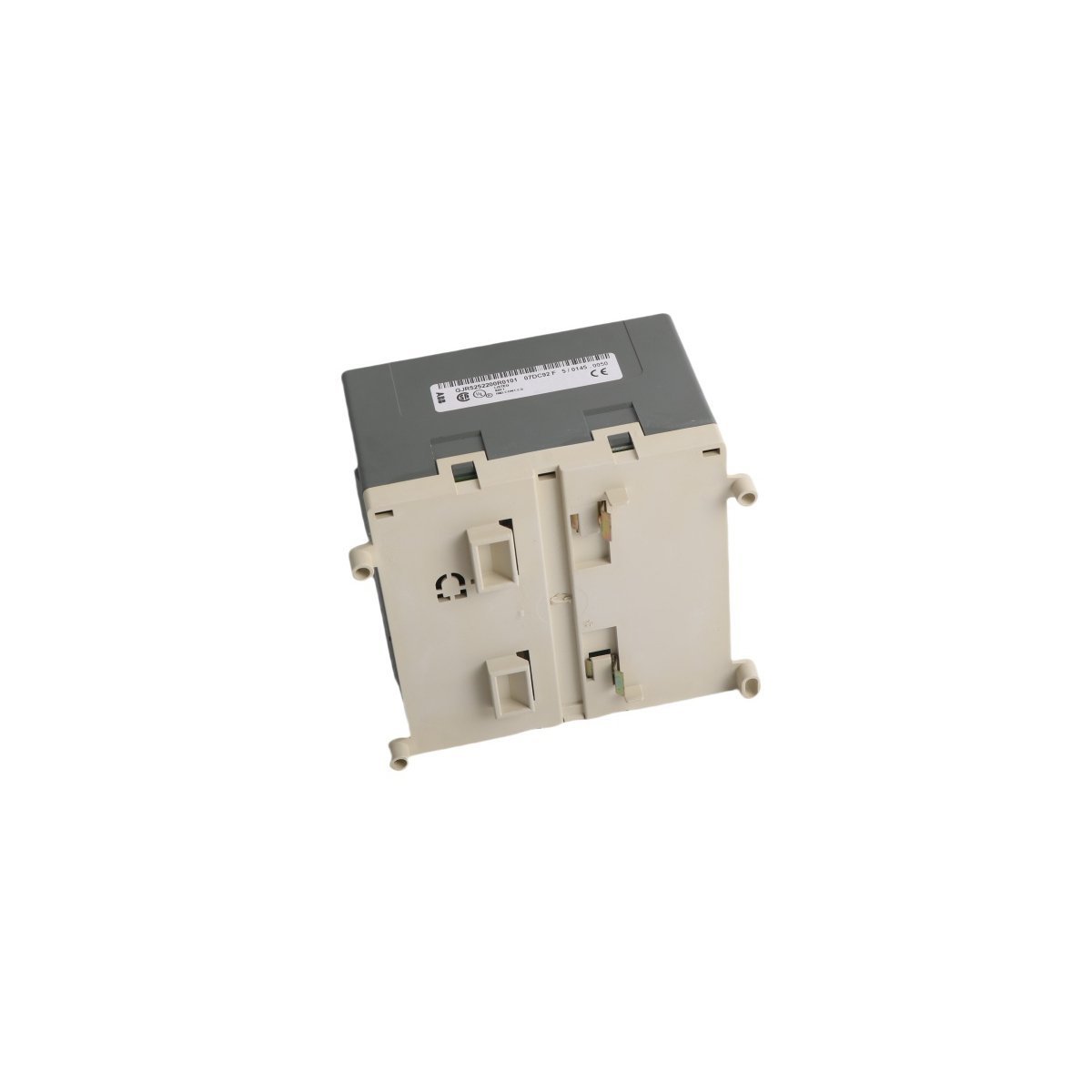

ABB 07DC92 GJR5252200R0101 Advant Controller Digital I/O Module
Sale!
SKU: 07DC92 GJR5252200R0101
ABB 07DC92 GJR5252200R0101 Advant Controller Digital I/O Module
The ABB 07DC92 (GJR5252200R0101) is a 32-channel configurable digital input/output module for the AC31 series.Featuring short-circuit protection and a high-speed CS31 bus interface, it provides flexible and reliable control for legacy ABB automation systems.
The ABB 07DC92 serves as a versatile, dual-purpose interface for the Advant Controller 31 (AC31) system by combining both digital inputs and outputs into a single hardware unit. Specifically, this module provides 32 configurable digital channels, which allows operators to monitor field states and execute control commands simultaneously. By utilizing the CS31 system bus, the module communicates high-speed binary data back to the central processor with minimal latency. To ensure operational safety, the 07DC92 continuously monitors its internal circuitry for short circuits and overloads, thereby maintaining the stability of the entire automation loop.
Operational Characteristics
Maximizes Configuration Flexibility: The module features 32 digital channels that can function as either inputs or outputs. As a result, engineers can customize the I/O mix to perfectly match the specific requirements of a machine or process cell.
Enhances System Protection: Each output channel includes integrated protection against short circuits and thermal overloads. In doing so, the module prevents localized electrical faults from cascading through the control cabinet and damaging sensitive logic components.
Streamlines Installation: The high-density design packs 32 points into a compact DIN-rail mountable enclosure. Consequently, this allows for a significant reduction in the physical space required for distributed I/O stations.
Simplifies Maintenance Diagnostics: Front-facing LED arrays provide real-time status updates for every individual channel. Therefore, technicians can perform rapid visual audits to verify field signals without needing to connect a laptop or diagnostic tool.
Supports Legacy Longevity: Furthermore, the GJR5252200R0101 acts as a critical replacement part for aging AC31 infrastructures. By offering a reliable bridge for legacy systems, it enables facilities to sustain production without the immediate need for a complete platform migration.
Technical Specifications
Article Number:Â GJR5252200R0101
Model Identifier:Â 07DC92
Product Series:Â Advant Controller 31Â
Total Channel Count:Â 32 Digital I/O
Input Voltage:Â 24 V DC
Output Voltage:Â 24 V DC
Output Current:Â 0.5 A per channel
Communication Protocol:Â CS31 System Bus
Galvanic Isolation:Â YesÂ
Power Supply Requirement:Â 24 V DC (19.2 V to 30 V DC)
Status Display: Individual LEDs for Power, Run, and Error
