SKU: DS200TCQBG1BCB

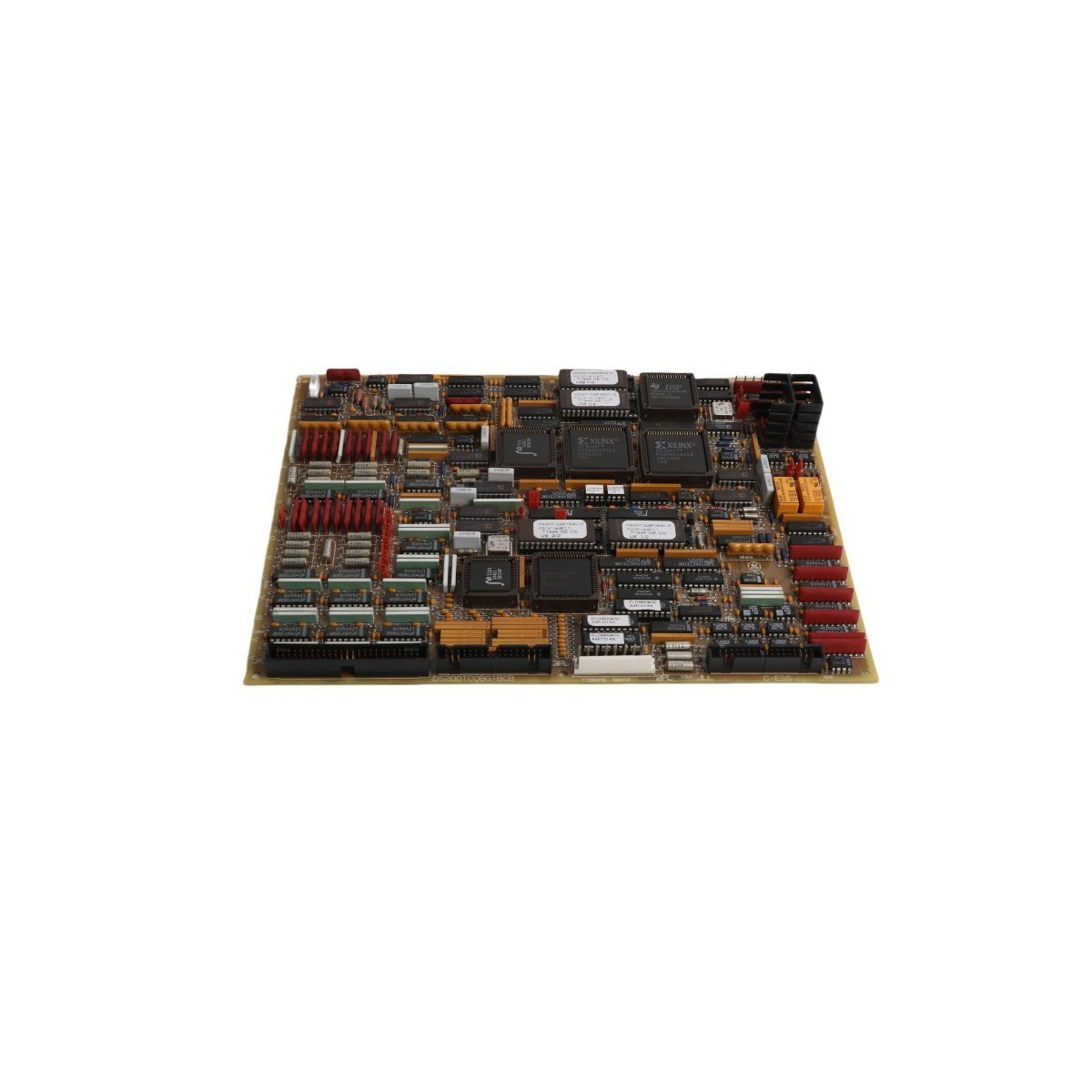

GE DS200TCQBG1BCB RST Extended Analog I/O Board

The GE DS200TCQBG1BCB is a 12-channel RST Extended Analog I/O Board for the Speedtronic Mark V turbine control system. It features a programmable logic device, EPROM modules, and support for proximity and accelerometer sensors. This G3-rated board ensures precise data acquisition and supports Triple Modular Redundancy for mission-critical industrial applications.

Technical Functionality

The General Electric DS200TCQBG1BCB functions as a high-performance Extended Analog I/O Board within the Speedtronic Mark V turbine control ecosystem. This module serves as a critical expansion interface, allowing the system to process a high volume of analog signals from field sensors like proximitors and accelerometers. By integrating a programmable logic device (PLD) and EPROM modules, the board executes complex signal conditioning and data acquisition tasks locally. Consequently, it relieves the main control processors of heavy computational loads while providing the precise feedback needed for turbine speed and vibration monitoring.

Operational Performance

This board achieves exceptional signal integrity by utilizing dedicated circuitry to convert continuous analog measurements into digital values for the DCS backplane. Because it supports Triple Modular Redundancy (TMR), users typically install the TCQB card in the R, S, and T cores to ensure system-wide fault tolerance. Furthermore, the module facilitates hardware customization through 15 integrated jumpers, which allow technicians to configure specific input channels for different transducer types. The inclusion of a side-mounted diagnostic OK LED also provides maintenance teams with immediate visual confirmation of the board’s operational health.

Key Technical Characteristics

Expanded I/O Capacity: Increases the system’s ability to handle high-density analog inputs and outputs.
Sensor Compatibility: Supports specialized inputs for Proximity Transducers, LVDTs, and Accelerometers.
Advanced Logic: Incorporates an on-board Programmable Logic Device for specialized signal processing.
Precision Connectors: Features one 50-pin JKK connector and two 34-pin connectors (3PL and JLL) for secure ribbon cable integration.
Robust Protection: Includes standardized Mark V voltage-limiting components, such as diodes and capacitors, to prevent circuit damage.
Environmental Resilience: Operates reliably in extreme industrial temperatures ranging from -30°C to +65°C.
Redundancy Support: Seamlessly integrates into TMR architectures to eliminate single points of failure.

Primary Industrial Applications

Vibration Monitoring: Managing high-speed vibration data from turbine bearings and rotating shafts.
Position Sensing: Tracking valve and actuator positions using LVDT and LVDR feedback loops.
Gas & Steam Turbines: Controlling automated drive assemblies in large-scale power generation plants.
Heavy Manufacturing: Interfacing with pressure and temperature sensors in chemical and oil refinery environments.
