ABB Bailey Infi 90 NTAI05 Analog Input Termination Unit
Sale!
SKU: NTAI05

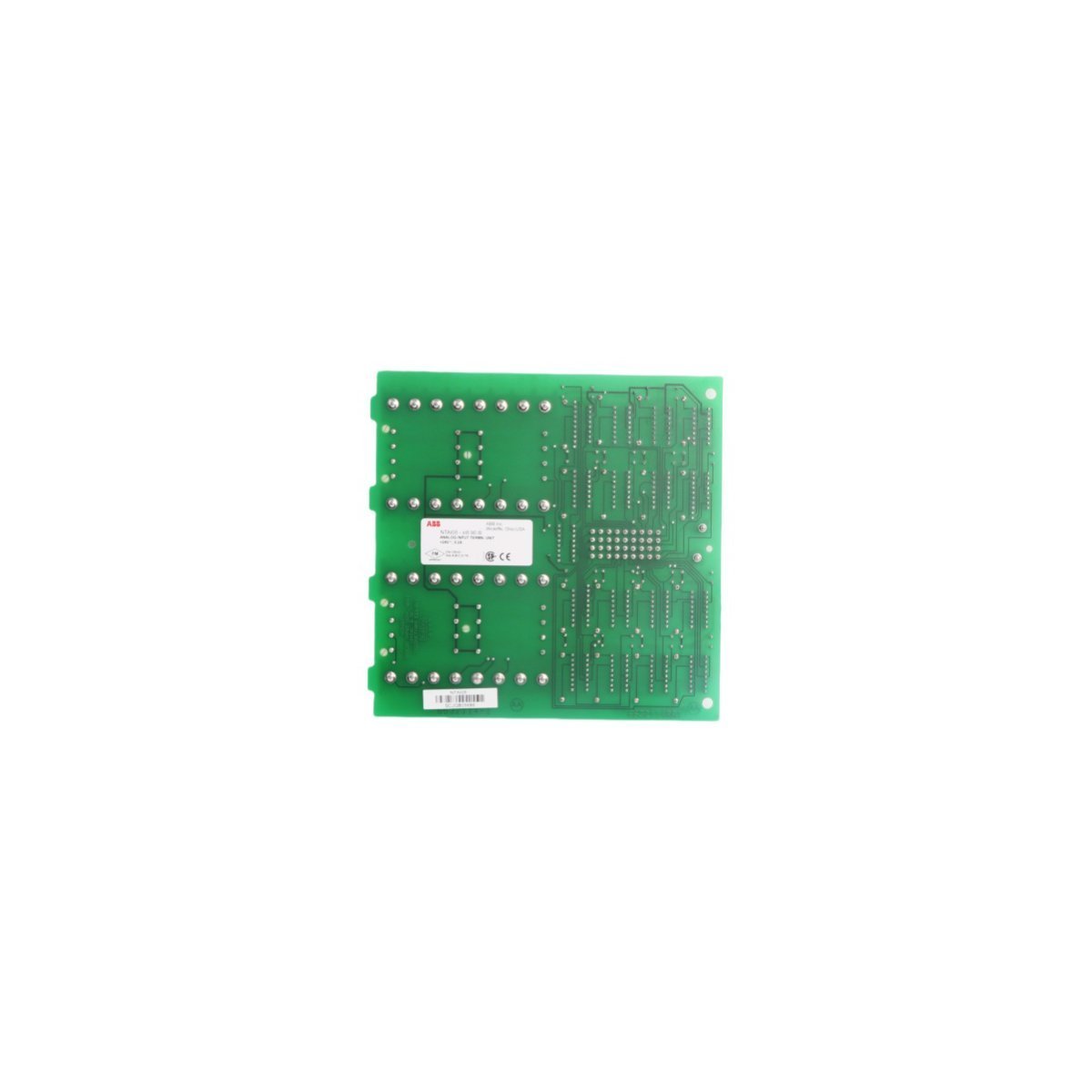

ABB Bailey Infi 90 NTAI05 Analog Input Termination Unit
The ABB NTAI05 is a brand-new, Swiss-manufactured Analog Input Termination Unit designed for Bailey Net 90 and Infi 90 DCS systems. This active 0.4 kg terminal board natively handles $24\text{ VDC}$$20\text{ mA}$ loops, features advanced noise-rejection circuitry, complies with IEC 61131-2, and ensures reliable field-to-controller signal transmission within rugged process industries.
The ABB NTAI05 functions as a dedicated Analog Input Termination Unit within the classic Bailey Net 90 and Infi 90 distributed control system (DCS) architectures. Because industrial environments demand uncompromised signal processing, this terminal board acts as the critical physical interface bridging field-located analog transmitters with internal DCS controller modules. The unit processes standard $24\text{ VDC}$ loop power and manages typical $4\text{ to }20\text{ mA}$ current signals seamlessly. Consequently, it isolates sensitive control logic from field anomalies while it simultaneously maintains steady electrical paths. Plant engineers deploy this hardware specifically to safeguard system loops against unexpected thermal fluctuations and electromagnetic interference.
Technical Characteristics and Environmental Specifications
Brand: ABB
Model Number: NTAI05
Product Range: Bailey Net 90 / Infi 90 DCS Series
Equipment Type: Analog Input Termination Unit
Signal Configuration:Â $24\text{ VDC}$Â /Â $20\text{ mA}$Â typical loops
Compliance Certifications: IEC 61131-2 (Industrial Controllers), EN 61000-6-2 (Industrial Immunity), EN 61000-6-3 (Emission Standards)
Country of Origin: Sweden
Lifecycle Classification: Active Service Component
Physical Layout Dimensions: 18 cm x 17.6 cm x 2 cm
Net Structural Weight: 0.4 kg
Minimum Order Quantity: 1 Piece
Key Functions and Industrial Applications
By utilizing an advanced grounding and shielding layout, the NTAI05 actively eliminates signal distortion and suppresses crosstalk across adjacent channels. Therefore, the unit preserves high-fidelity data transmission even when field conditions introduce substantial electrical noise. Because it complies fully with stringent EN 61000-6-2 electromagnetic standards, the termination board guarantees uninterrupted operation near heavy industrial machinery. Industrial facilities primarily install the NTAI05 inside petrochemical plants, thermal power stations, and continuous processing mills where steady $4\text{ to }20\text{ mA}$ loop integrity remains paramount. Furthermore, the robust printed circuit board construction allows the hardware to tolerate severe ambient temperature shifts without inducing thermal calibration drift. As a result, control operators achieve higher plant uptime and eliminate frequent component recalibration cycles.
