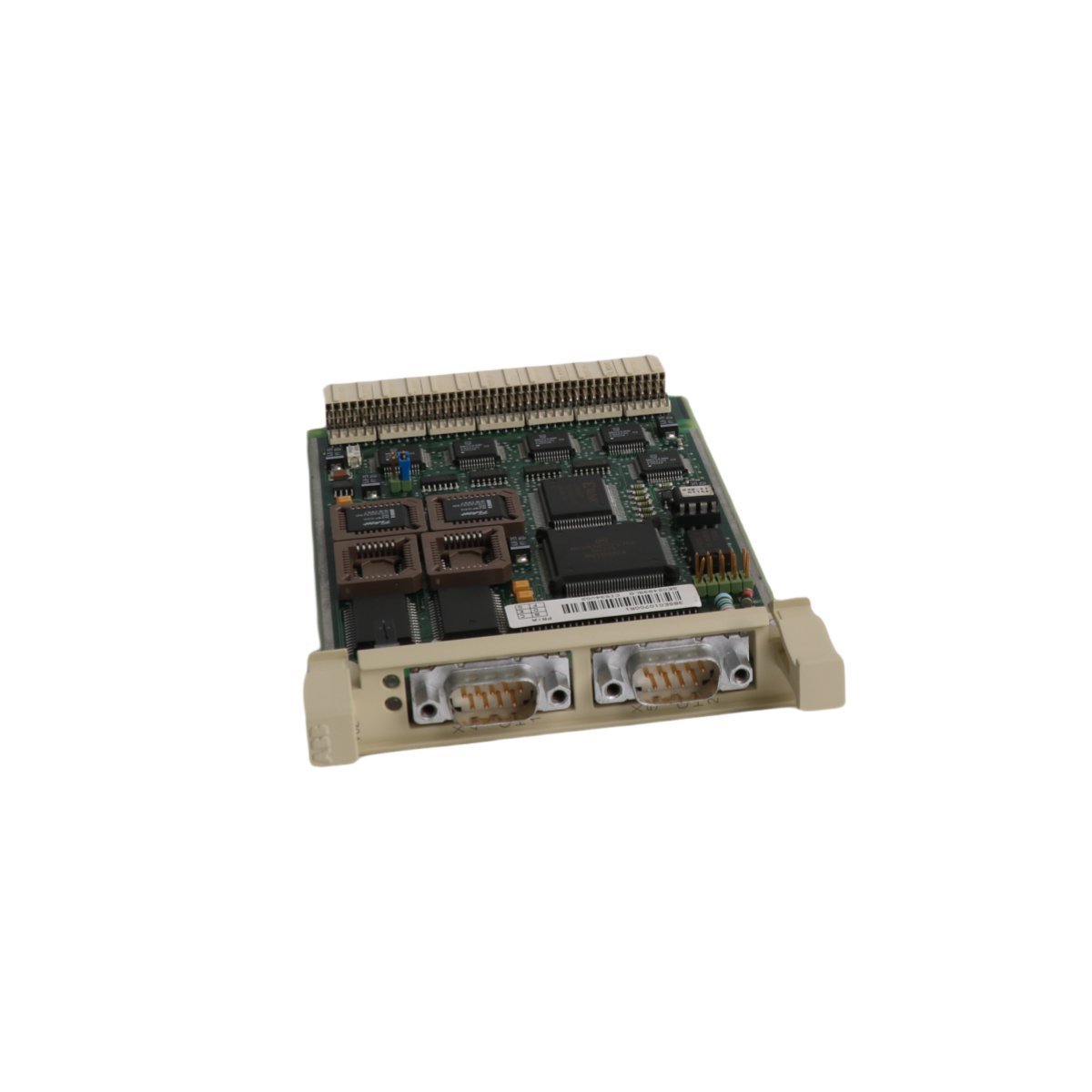

ABB CI534V02 3BSE010700R1 Modbus Communication Submodule

Technical Overview

The CI534V02 (3BSE010700R1) serves as a dedicated Modbus communication submodule within the ABB AC500 and DCS automation ecosystems. This hardware component facilitates seamless serial data exchange between the central processing unit and external field devices. By utilizing the Modbus protocol, the module enables the integration of third-party equipment, such as variable speed drives, power meters, and sensors, into a unified control network.

The submodule is designed for mounting directly onto a terminal base or carrier, providing a compact footprint for space-constrained industrial cabinets. It manages signal conversion and protocol timing independently, which significantly reduces the processing load on the main controller. Furthermore, the CI534V02 ensures high levels of electromagnetic compatibility (EMC) and physical durability, making it suitable for deployment in harsh industrial environments where vibration and electrical noise are prevalent.

Product Features and Applications

• Protocol Compatibility: Supports standard Modbus RTU/ASCII protocols for broad interoperability.
• System Integration: Optimized for use with ABB AC500 series PLCs and distributed control system (DCS) architectures.
• Data Handling: Features high-speed buffer management and precise signal processing for real-time monitoring.
• Diagnostic Capability: Includes integrated LED indicators for status monitoring and rapid fault isolation.
• Environmental Resilience: Engineered to withstand temperature fluctuations and industrial interference.
• Application Scope: Ideal for energy management, water treatment facilities, and manufacturing process control.

Product Specifications

• Manufacturer: ABB
• Model Identification: CI534V02
• Ordering Code: 3BSE010700R1
• Equipment Category: Modbus Communication Interface
• Module Type: Submodule
• Dimensions: 22 mm x 170 mm x 101 mm
• Net Weight: 0.1 kg
• Country of Origin: Sweden
