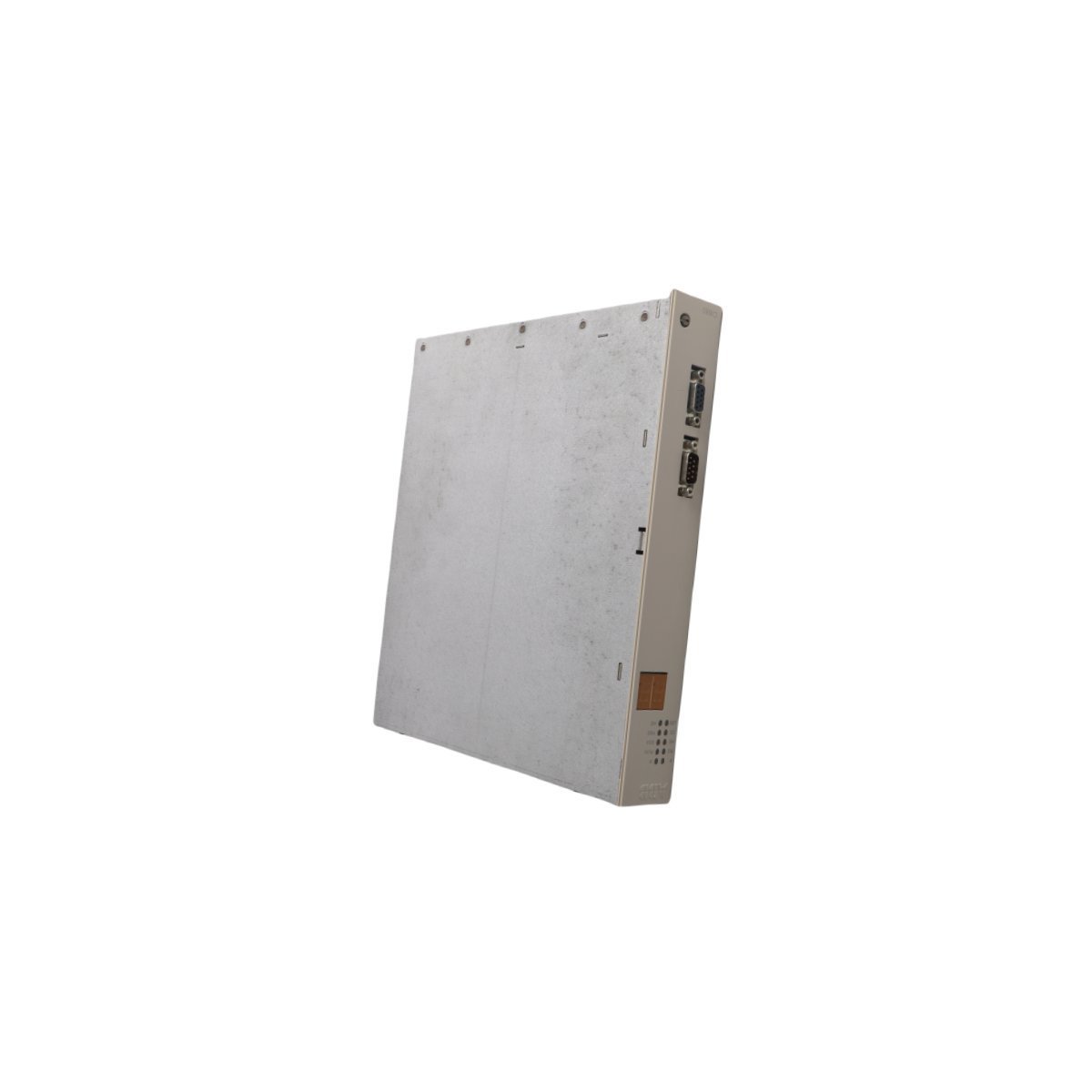

ABB CI680 3BSE007364R1 Communication Interface Module

Product Overview

The ABB CI680, identified by the order number 3BSE007364R1, is a high-performance Communication Interface Module designed for the Advant Controller system. It functions as a critical bridge, enabling seamless data exchange between the controller and external peripherals or field devices. By utilizing the AF100 (Advant Fieldbus 100) protocol, this module ensures high-speed, deterministic communication, which is essential for maintaining the synchronization of complex industrial processes.

Technical Architecture and Connectivity

The CI680 module incorporates specialized processing logic to handle protocol conversion without taxing the main controller’s CPU. This dedicated hardware approach guarantees that communication cycles remain consistent even during periods of high network traffic.

• Manufacturer: ABB
• Model Identification: CI680
• Order Code: 3BSE007364R1
• Protocol Support: Advant Fieldbus 100 (AF100)
• System Compatibility: Advant OCS, AC450, and AC410 Controllers
• Interface Type: Redundant bus support for high-availability configurations
• Mounting: Plug-in module for standard ABB subracks
• Diagnostic Indicators: Integrated front-panel LEDs for “Run,” “Fault,” and “Traffic” status

Core Functional Characteristics

To ensure maximum reliability in critical infrastructure, the CI680 3BSE007364R1 includes several advanced networking features. These capabilities allow the module to maintain data integrity across long distances and in electrically noisy environments.

• Deterministic Data Transfer: The module prioritizes time-critical data, ensuring that control signals arrive within predictable microsecond intervals.
• Redundancy Support: Technicians can configure the CI680 in pairs. If the primary communication link fails, the secondary module automatically assumes control to prevent process interruption.
• Galvanic Isolation: Internal isolation circuits protect the controller’s backplane from external electrical surges or ground loops originating in the field.
• Plug-and-Play Integration: The Advant configuration software automatically recognizes the module, which simplifies the commissioning process and reduces engineering hours.

Industrial Applications

The CI680 is a staple in large-scale automation projects where the Advant OCS platform manages critical utility and manufacturing assets. It serves as the primary gateway for various high-stakes sectors.

• Power Generation: Facilitates real-time monitoring and control of turbine parameters and substation telemetry.
• Oil & Gas: Connects remote I/O stations in hazardous areas to the central control room via the AF100 network.
• Pulp & Paper: Manages the high-speed coordination required for paper machine drives and wet-end chemistry control.
• Metals & Mining: Provides robust communication for rolling mills and smelting operations where EMI levels are typically high.

Installation and Maintenance Strategy

Installing the CI680 3BSE007364R1 requires minimal effort due to its modular “slide-in” design. The module connects directly to the system backplane, which provides both power and data pathways. For maintenance, the module supports comprehensive self-diagnostics. If a hardware failure occurs, the onboard “Fault” LED illuminates, and an error code is transmitted to the operator station. Because the module stores its configuration parameters in the controller’s memory, replacing a unit does not require extensive software re-programming, thereby significantly reducing Mean Time to Repair (MTTR).
