SKU: SDCS-CON-2A 3ADT309600R0002

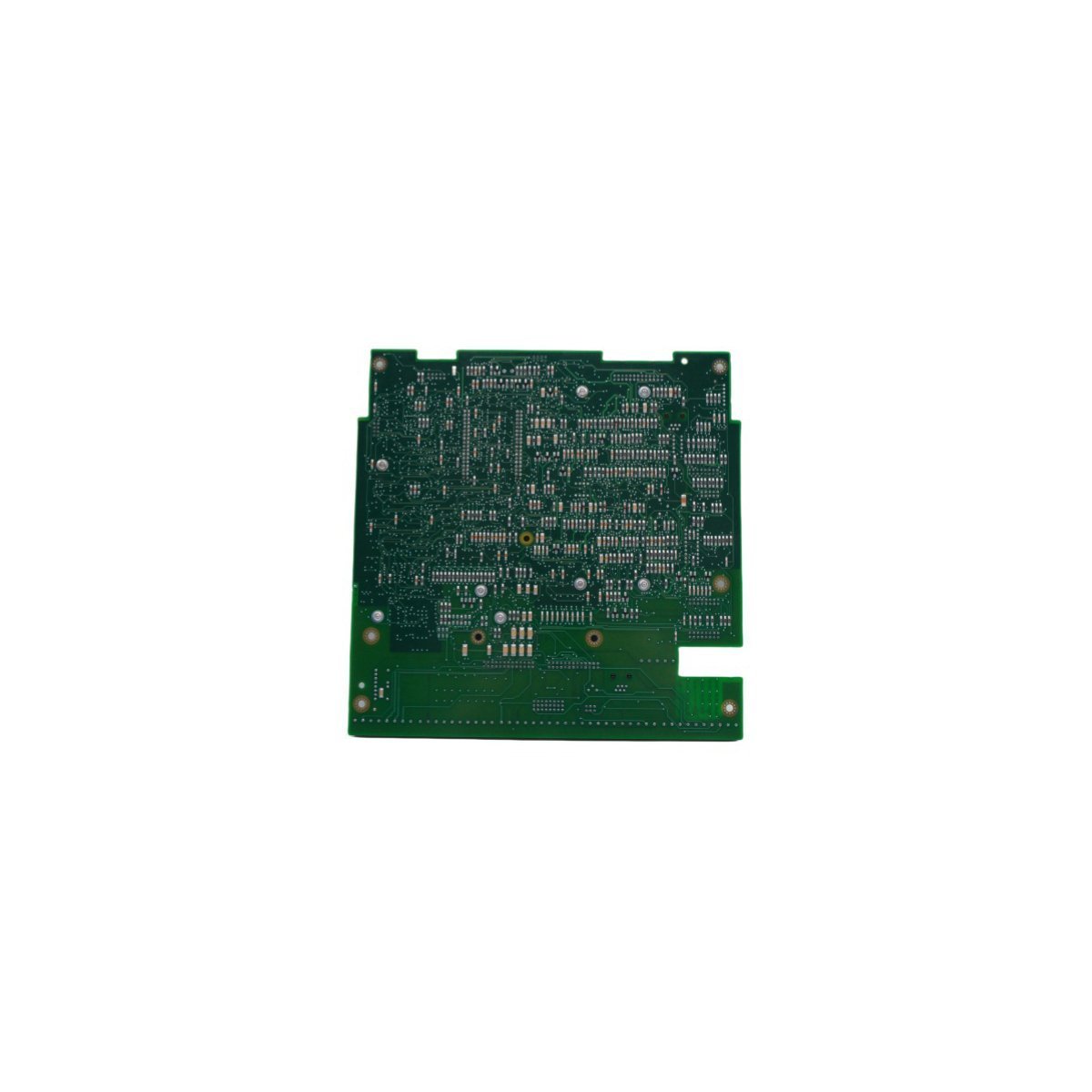

ABB DCS800 SDCS-CON-2A 3ADT309600R0002 Main Control Board

The ABB SDCS-CON-2A 3ADT309600R0002 is the central processing component for DCS800 DC drives. It delivers precise motor control, high-speed logic processing, and robust industrial reliability for complex automation systems

Product Overview

The ABB SDCS-CON-2A (Part Number 3ADT309600R0002) serves as the primary processing unit for the DCS800 series of industrial DC drives. This high-performance control board manages all critical drive functions, including speed and torque regulation, motor protection, and external communication interfacing. By utilizing advanced microprocessor technology, the board ensures precise thyristor firing and synchronized control across a variety of heavy-duty industrial applications.

Technical Functionality and Applications

The SDCS-CON-2A board integrates the drive’s firmware and execution logic to coordinate complex power conversion tasks. Consequently, it facilitates real-time data exchange between the motor and the supervisory control system. This module is frequently deployed in demanding sectors such as metallurgy, mining, and material handling, where motor reliability is paramount. Its architecture supports various feedback devices, allowing for high-accuracy closed-loop control in both simple and regenerative drive configurations.

Key Technical Characteristics

Processor Integration: Features a high-speed digital signal processor capable of handling complex control algorithms for precise DC motor management.
System Compatibility: Specifically engineered for the DCS800 drive family, ensuring native compatibility with existing power modules and fieldbus adapters.
Environmental Resilience: Manufactured with industrial-grade components to maintain operational stability in high-temperature and high-vibration environments.
Expansion Capabilities: Includes dedicated slots for plug-in modules, such as encoder interfaces and fieldbus communication cards like Profibus or Modbus.
Diagnostic Tools: Offers comprehensive onboard diagnostics to streamline troubleshooting processes and reduce system downtime.
Physical Specifications: Measures 25.4 x 2.5 x 24.8 cm with a lightweight 0.4 kg footprint for easy installation within the drive housing.

Tags: Main Control Board

You may also like

Yokogawa CENTUM VP AFV10D S2 Duplexed Field Control Unit — Yokogawa CENTUM VP AFV10D S2 Duplexed Field Control Unit
The Yokogawa AFV10D S2 is a 19-inch rack-mountable Duplexed Field Control Unit for the CENTUM VP DCS. Featuring a 133 MHz processor and Vnet/IP compatibility, it provides high-speed, redundant process control. This Japan-manufactured unit ensures maximum system reliability with its 72-hour battery backup and robust dual-communication architecture.

Yokogawa CENTUM VP AFV10D S2 Duplexed Field Control Unit
The Yokogawa AFV10D S2 is a 19-inch rack-mountable Duplexed Field Control Unit for the CENTUM VP DCS. Featuring a 133 MHz processor and Vnet/IP compatibility, it provides high-speed, redundant process control. This Japan-manufactured unit ensures maximum system reliability with its 72-hour battery backup and robust dual-communication architecture.

GE Fanuc IC670CHS003 Field Control Terminal Block with Connectors — GE Fanuc IC670CHS003 Field Control Terminal Block with Connectors
The GE Fanuc IC670CHS003 is a high-density, connectorized I/O terminal block designed for the Field Control series. Featuring dual 20-pin male AMP connectors, it supports rapid wiring, vibration resistance, and seamless I/O module integration for advanced distributed control systems.

GE Fanuc IC670CHS003 Field Control Terminal Block with Connectors
The GE Fanuc IC670CHS003 is a high-density, connectorized I/O terminal block designed for the Field Control series. Featuring dual 20-pin male AMP connectors, it supports rapid wiring, vibration resistance, and seamless I/O module integration for advanced distributed control systems.

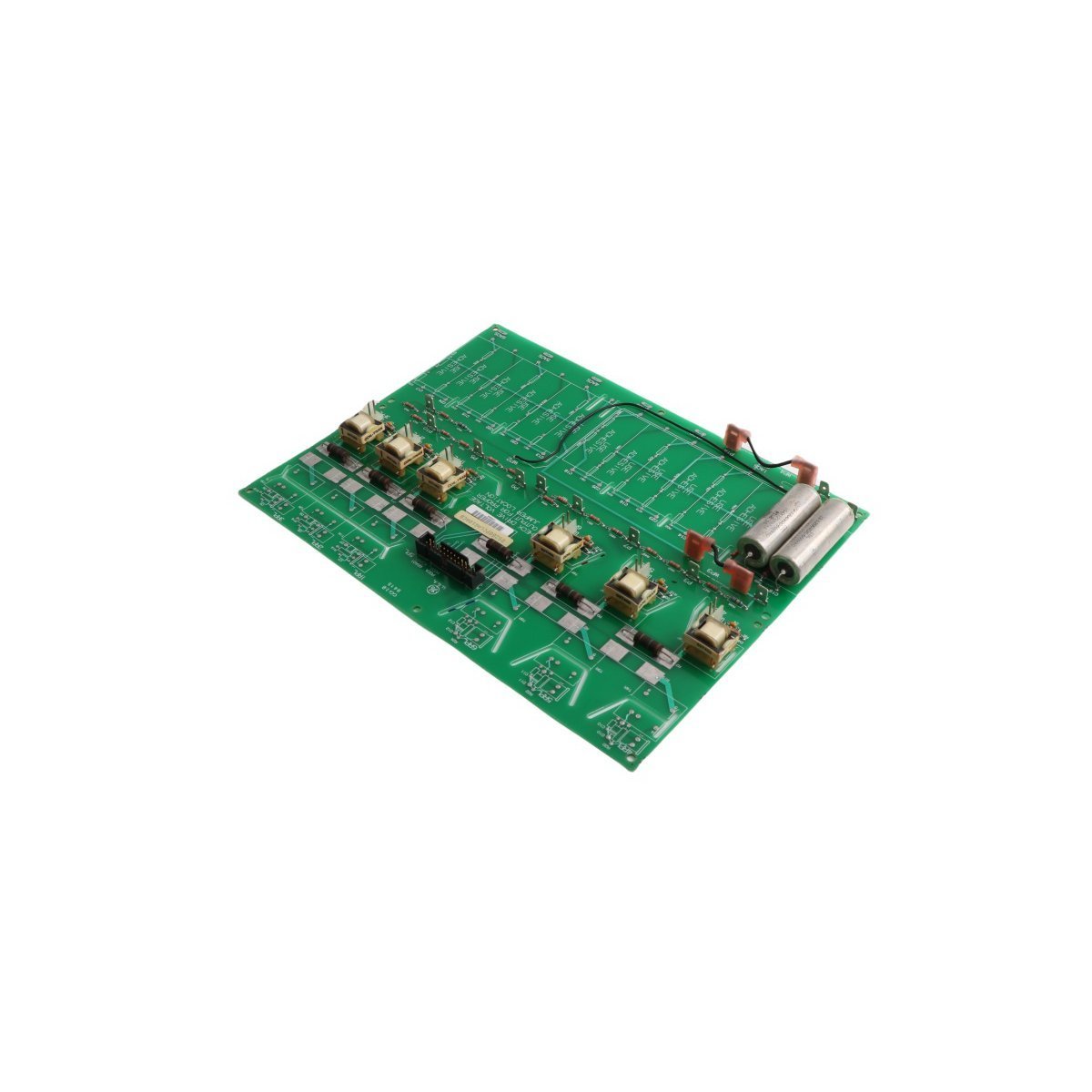

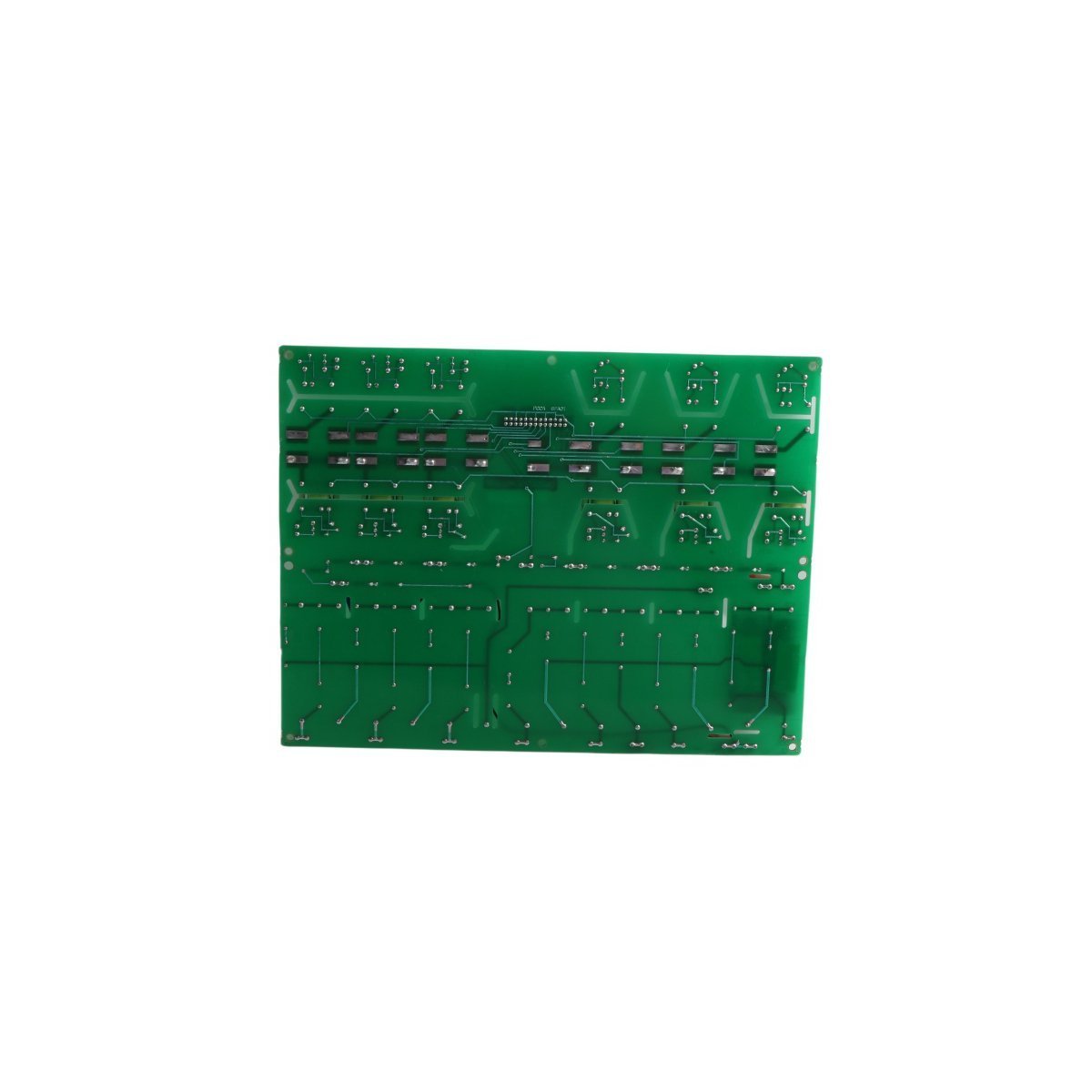

GE DS200PCCAG10ACB Mark V Power Connect Interface Card — GE DS200PCCAG10ACB Mark V Power Connect Interface Card
