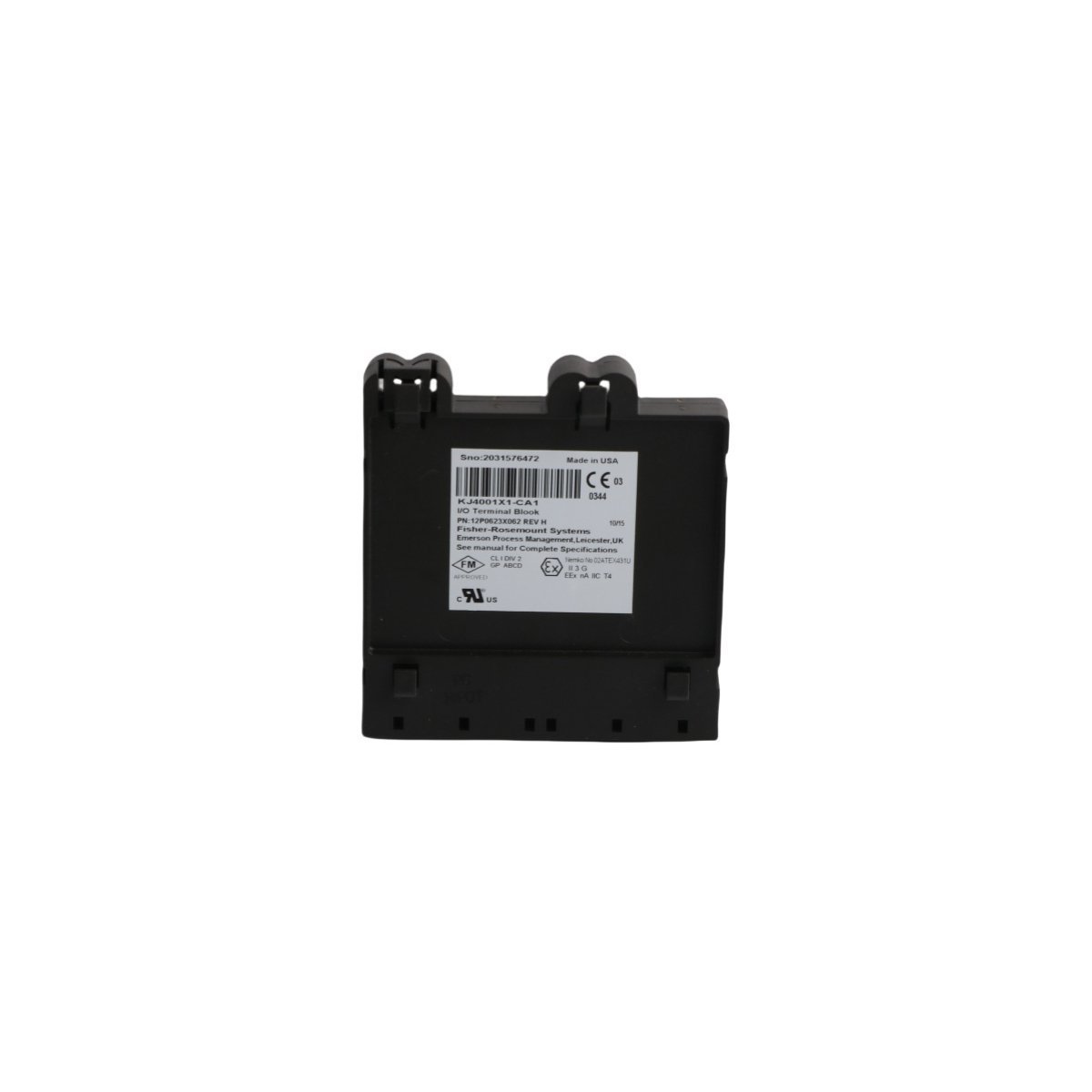

Emerson DeltaV KJ4001X1-CA1 12P0623X062 Standard I/O Termination Block

Operational Function and Logic

The Emerson KJ4001X1-CA1 serves as the critical physical bridge between field-level instrumentation and the DeltaV M-Series controller architecture. By establishing a secure 16-channel termination point, the module actively facilitates the transfer of process variables to the system I/O interface. Once integrated into an M-Series carrier, the block streamlines the marshalling process, allowing engineers to organize complex field wiring into a scannable and manageable layout. Because it maintains dedicated electrical pathways for each signal, it ensures that the DCS receives high-fidelity data from transmitters, switches, and actuators throughout the facility.

Performance Enhancements and Safety Features

• Facilitates Hazardous Location Deployment: The unit carries certifications for Class I, Division 2 and Zone 2 environments. In doing so, it enables the safe termination of electrical circuits in the presence of flammable gases or vapors.
• Shields Against Corrosive Elements: The hardware features a protective coating that meets ISA-S71.04-1985 Class G3 standards. As a result, the terminal block actively resists the degrading effects of sulfur and other harsh chemical airborne contaminants found in pulp, paper, and petrochemical plants.
• Simplifies Power Infrastructure: By managing a centralized 24V DC field power bus, the KJ4001X1-CA1 distributes up to 300 mA of current directly to field devices. Consequently, this eliminates the need for redundant external power rails and reduces the volume of terminal jumpers required within the cabinet.
• Protects Logic Components: Through the use of a keying system, the block ensures that only compatible I/O cards can be seated in the corresponding slot. Therefore, it prevents accidental hardware damage caused by inserting a module into an incorrectly voltage-rated terminal.
• Maintains Connection Integrity: The mechanical frame is built to survive high-impact shocks up to 10g. Furthermore, the design actively dampens low-frequency vibrations. By providing this structural stability, the module prevents intermittent signal loss caused by loose screw terminals in high-vibration manufacturing zones.

Technical Specifications

• Brand: Emerson (DeltaV)
• Model Code: KJ4001X1-CA1
• Part Number: 12P0623X062
• Module Category: 16-Channel Standard Terminal Block
• Signal Support: Digital and Analog I/O (Traditional M-Series)
• Maximum Current: 1 A per individual channel
• Maximum Voltage: 250 V AC / 60 V DC
• LocalBus Consumption: 12 V DC at 150 mA
• Field Circuit Rating: 24 V DC at 300 mA
• Environmental Resistance: G3 Harsh Environment (ISA-71.04)
• Operating Temperature: -40 °C to +70 °C
• Humidity Tolerance: 5% to 95% Non-condensing
• Mounting Compatibility: M-Series 8-Wide or 2-Wide Carriers
