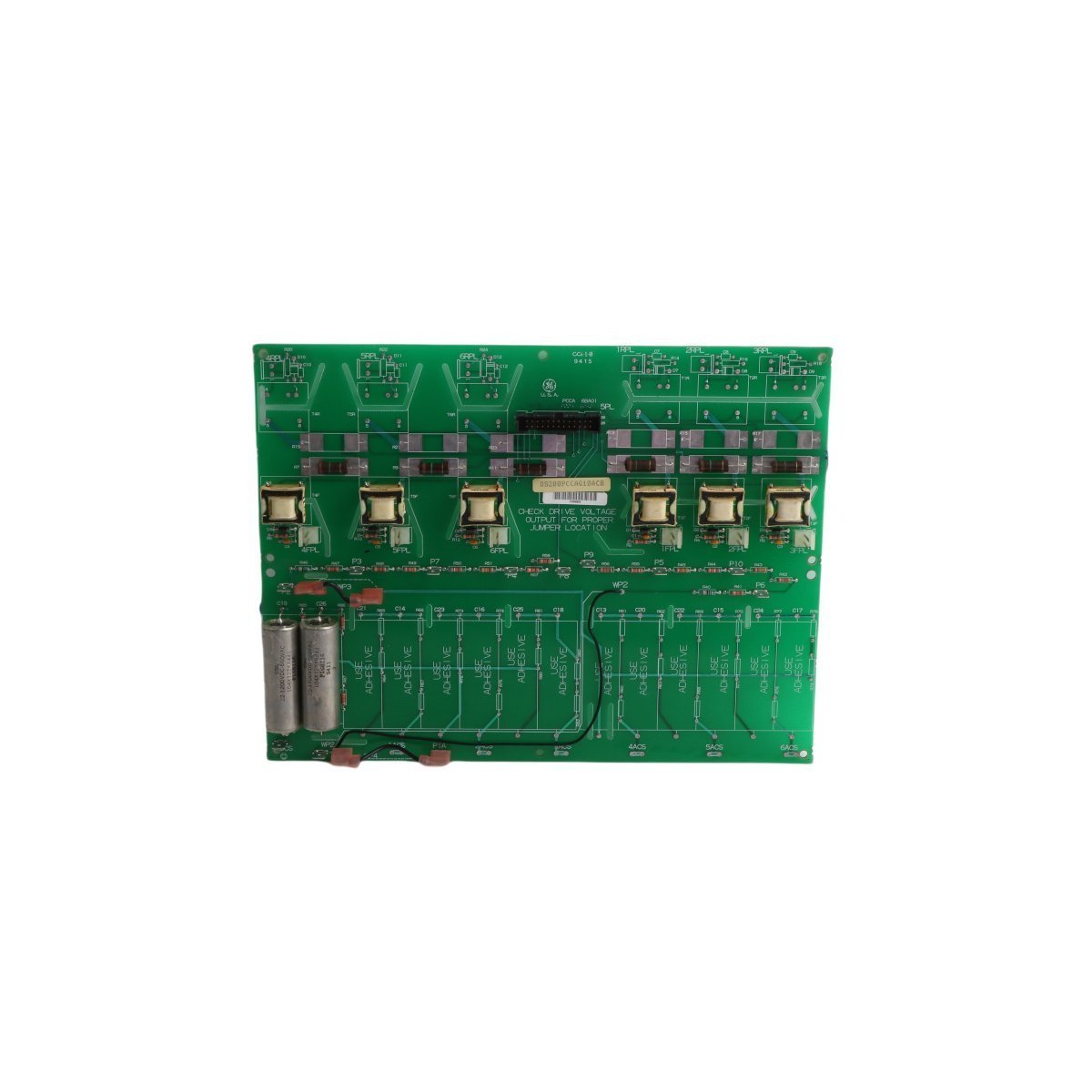

GE DS200PCCAG10ACB Mark V Power Connect Interface Card

The GE DS200PCCAG10ACB is a Power Connect Interface Board for the Mark V Speedtronic series. Rated for 600V RMS, it serves as the primary link between the drive control and the SCR power bridge. This revised ACB model features 8 connectors for DCFB board integration and a specialized DC snubber for enhanced power circuit protection.

Product Overview

The GE DS200PCCAG10ACB functions as a specialized DC Power Connect Board within the Mark V Speedtronic Turbine Control and DC2000 drive subseries. This board establishes the critical interface between the control hardware and the Silicon Controlled Rectifier (SCR) power bridge. By bridging these two sections, the card facilitates the precise regulation of power delivered to gas, steam, and wind turbine drive assemblies. Although the Mark V series is categorized as a legacy system, the DS200PCCAG10ACB remains an essential component for maintaining the operational integrity of Speedtronic-based automation.

Technical Architecture and Revisions

As indicated by the “ACB” suffix, this model incorporates three significant functional and hardware revisions over the base DS200PCCAG10 unit. These updates enhance signal stability and system compatibility. The board architecture specifically supports:

Drive Interface: Acts as a primary conduit for signals traveling between the drive control logic and the SCR bridge.
Bridge Connectivity: Features eight dedicated connectors designed to integrate seamlessly with the DCFB (DC Feedback) Board.
Frame Compatibility: Supports installation within both J and M-style industrial frames.
Power Supply Integration: Maintains full compatibility with SDCI power supply boards to ensure consistent voltage regulation.

Power Handling and Snubber Design

To protect sensitive electronics from voltage transients, the DS200PCCAG10ACB utilizes a unique DC snubber circuit design. This protective layer mitigates the impact of rapid voltage spikes that often occur during high-power switching. The board is rated for a maximum AC voltage of 600V RMS, making it suitable for heavy-duty industrial environments where high-performance power distribution is a requirement.

Maintenance and Configuration Procedures

Because the DS200PCCAG10ACB interfaces directly with high-voltage components, technicians must follow strict safety protocols during replacement. Furthermore, the installation process requires the following sequence to ensure system safety:

De-energization: Disconnect all primary power and remove fuses from the three-phase power supplies.
Signal Isolation: Carefully detach the eight interface connectors and the SDCI link.
Parameter Management: Following hardware installation, users should utilize a laptop with a serial cable to download, verify, and upload the drive’s configuration files. This step ensures that the new board aligns with the specific parameters of the turbine or drive assembly.
