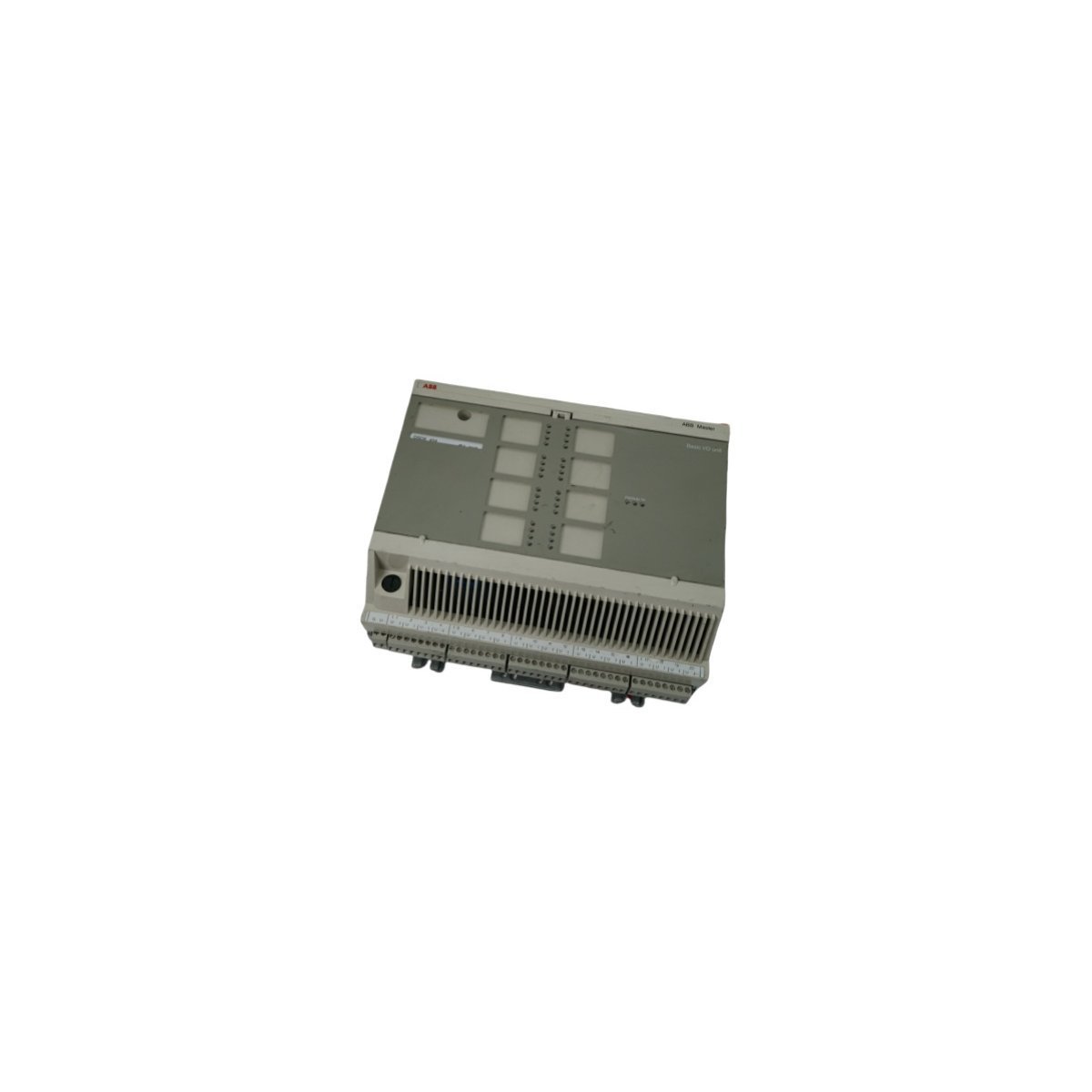

The ABB DSDX454 5716075-AT is a Swedish-made S400 Remote I/O Basic Unit designed for high-density signal management. It supports MODBUS protocols and Ethernet routing, providing a durable and efficient interface for expanding DCS and Advant Controller systems.
The ABB DSDX454 (5716075-AT) serves as a foundational interface component within the S400 I/O family, specifically engineered to bridge the gap between field-level devices and central control architectures. This unit actively manages digital signal distribution across decentralized networks, thereby allowing for the geographical expansion of control loops without degrading signal integrity. Because it utilizes high-performance communication circuitry, the device effectively translates localized input/output data into system-level logic. Furthermore, the unit acts as a primary node for remote data acquisition, which significantly streamlines the wiring infrastructure required for large-scale industrial plants.
Technical Specifications
Brand: ABB
Model Number: DSDX454
Order Code: 5716075-AT
Equipment Category: Remote I/O Basic Unit
Series Architecture: S400 I/O / Advant Controller
Network Service: Ethernet Routing and MODBUS Protocol Support
Net Weight: 2.76 kg
Physical Dimensions: 23.5 x 9 x 22 cm
Manufacturing Origin: Sweden
Current Lifecycle Status: Active
Operational Characteristics and Integration
Engineers frequently deploy the DSDX454 in environments characterized by thermal fluctuation and high electromagnetic interference. In addition to its rugged physical housing, the module incorporates advanced diagnostic routines that continuously audit the health of connected I/O channels. Consequently, the system can detect wiring faults or signal anomalies in real-time, which proactively prevents costly process interruptions. Moreover, the unit facilitates seamless integration with MODBUS-compliant hardware, thereby ensuring cross-platform compatibility within diverse DCS environments.
Since the module occupies a compact footprint despite its high channel density, it maximizes cabinet efficiency in crowded control rooms. Transitioning to this basic unit provides operators with enhanced visibility into field operations, as the integrated Ethernet routing capabilities accelerate the speed of data backhaul. As a result, the DSDX454 stands as a critical asset for achieving both high availability and precise synchronization in modern automated facilities.
Configured for high-density signal distribution in DeltaV M-series I/O Subsystem networks, the Emerson KJ4001X1-BE1 12P0818X072 (KJ4001X1-BE1 8-Wide IO Carrier) provides direct physical/electrical execution.
Suffix Breakdown & Model Matrix
Model
Description
KJ4001X1-BE1
DeltaV M-series 8-wide I/O carrier with integrated shielding
The KJ4001X1-BE1 acts as the physical backbone for M-series I/O card mounting and signal termination. This carrier features a shielded design to isolate backplane communications from external electromagnetic interference (EMI). It supports 8-wide module placement, facilitating high-density I/O configurations while maintaining strict electrical separation between signal loops. The carrier integrates with the DeltaV system bus to manage data throughput and power distribution across all installed I/O modules. Users must adhere to proper shielding ground practices to ensure the 4-20 mA HART loop protocol signals maintain their rated accuracy during transmission.
Frequently Asked Questions
Q: Does the carrier support hot-swapping of I/O modules?A: Yes, the DeltaV M-series backplane architecture supports the removal and insertion of I/O modules while the carrier is energized, provided the specific I/O module type allows for such operations under the defined safety and process conditions.Q: How does the integrated shielding function?A: The carrier incorporates a conductive chassis plane that connects to the system earth ground. This plane acts as an EMI shield for the underlying bus communication traces, preventing noise coupling into sensitive analog input circuits.
Field Installation Guidelines
Mount the carrier horizontally on a standard DIN-rail or chassis plate within the control cabinet.
Verify that the carrier backplane ground lug connects securely to a low-impedance earth ground to satisfy EMI protection requirements.
Ensure all I/O modules seat firmly into the connector slots to prevent backplane bus communication timeouts or intermittent signal loss.
Maintain adequate clearance above and below the carrier to facilitate heat dissipation and cabling access.
Inspect all terminal blocks for loose connections after installation to ensure low-resistance contact for all signal and power circuits.
The Allen-Bradley 1794-TB3K, also cataloged as the 1794-TB3K Base Unit, operates as a dedicated hardware component for field device termination and modular I/O mounting within FLEX I/O control networks.
Hardware Specifications
Parameter
Specification
Model
1794-TB3K
Brand
Allen-Bradley
Origin
USA
Weight
0.9 kg
Dimensions
3.5 cm x 13 cm x 14.5 cm
Operating Temp
-20 deg C to 70 deg C
Power Consumption
Not specified
Current Rating
10 A at 125 V AC/DC
Industrial Control System Connectivity
The 1794-TB3K integrates into industrial control architectures by utilizing backplane bus communication velocity protocols for real-time data exchange. This terminal base architecture facilitates I/O density scaling within the control cabinet, which allows engineers to coordinate power distribution across multiple feedback loops. Furthermore, the module supports firmware flash compatibility via the associated I/O adapter, ensuring that system logic aligns with operational requirements. Consequently, the hardware ensures deterministic signal transmission during power threshold excursions.
Frequently Asked Questions (FAQ)
Q: Does the 1794-TB3K support hot-swapping of I/O modules?A: Yes, the 1794-TB3K terminal base supports the removal and insertion of compatible FLEX I/O modules while the system is powered, provided that the associated module design permits such operations.Q: What is the maximum wire gauge supported by the screw-clamp terminals?A: The terminal blocks accommodate stranded copper wires ranging from 24 AWG to 16 AWG; for optimal mechanical and electrical contact, maintain a torque setting between 0.56 Nm and 0.79 Nm.
Field Installation Guidelines
To begin with, verify that the DIN rail is securely mounted and properly grounded before you position the terminal base;Â subsequently, hook the unit onto the rail and press firmly until the locking mechanism engages.
Furthermore, ensure all power to the I/O bus is isolated before you land any field wiring to the terminal blocks;Â meanwhile, strip the insulation according to manufacturer specifications to prevent exposed copper.
In addition, torque each screw-clamp to the specified 0.56-0.79 Nm range to ensure a vibration-resistant connection;Â then, verify that no conductor strands are pinched between the terminal and the housing.
Following wiring, perform a point-to-point continuity check to confirm that signal paths align with your schematic;Â by doing so, you mitigate the risk of short-circuits during system power-up.
Finally, snap the compatible I/O module onto the base until it clicks into place;Â thereby, you establish a secure electrical interface for the FLEX I/O network.
The GE IC200TBM002, also cataloged as the IC200TBM002 I/O terminal block, operates as a dedicated hardware component for signal distribution and wiring termination within VersaMax PLC systems. Configured for high-density I/O routing, the block provides direct physical execution of signal bussing through 18 integrated IEC-compliant box-style terminals. This module facilitates electrical interfacing for input/output carriers and interposing terminals, ensuring standardized connectivity for industrial field wiring.
Hardware Specifications
Parameter
Specification
Model
IC200TBM002
Brand
GE
Origin
USA
Weight
0.06 kg
Dimensions
11.0 cm x 3.5 cm x 3.0 cm
Operating Temp
Standard Industrial Range
Power Consumption
Passive (No active components)
Voltage Rating
264 VAC (Up to 300 VAC tolerance)
Current Rating
8 A
PLC and Control Network Integration
The VersaMax series utilizes modular backplane bus communication velocity and deterministic synchronization to manage distributed I/O blocks. Moreover, firmware flash compatibility within the host CPU allows for systematic updates across the network, thereby ensuring that hardware configurations remain consistent with logic execution cycles. In addition, I/O density scaling is supported through the flexible mounting interface, which enables the system to expand without exceeding the timing constraints of the host bus. Finally, Profinet and EtherNet/IP deterministic network integration requirements are managed upstream via communication modules, while the IC200TBM002 serves as the physical termination point for local field signals.
Frequently Asked Questions
Q: Does the IC200TBM002 provide electrical isolation between terminals?A: The IC200TBM002 features 18 internally-bussed terminals. It is electrically isolated from the I/O carrier interface; however, within the block itself, the terminals are bussed together to provide a common electrical potential.Q: What is the maximum wire gauge supported by the terminal block?A: The terminal block accommodates solid or stranded wires ranging from AWG #22 to AWG #14. It also supports the connection of two wires per terminal, provided the combined gauge does not exceed AWG #18.
Field Installation Guidelines
The module should be installed using the integrated mounting tabs on the top edge or secured via panel-mounting holes to ensure mechanical stability in high-vibration environments.
Ensure all field wiring is stripped to the appropriate length according to IEC standards before insertion into the box-style terminals to prevent short circuits.
When utilizing the terminal block for power distribution, ensure that the cumulative current across the 18-point bus does not exceed the 8 Amp rating.
Verify proper seating within the insert-slots of the I/O carrier to ensure the mechanical and electrical integrity of the VersaMax I/O assembly.
