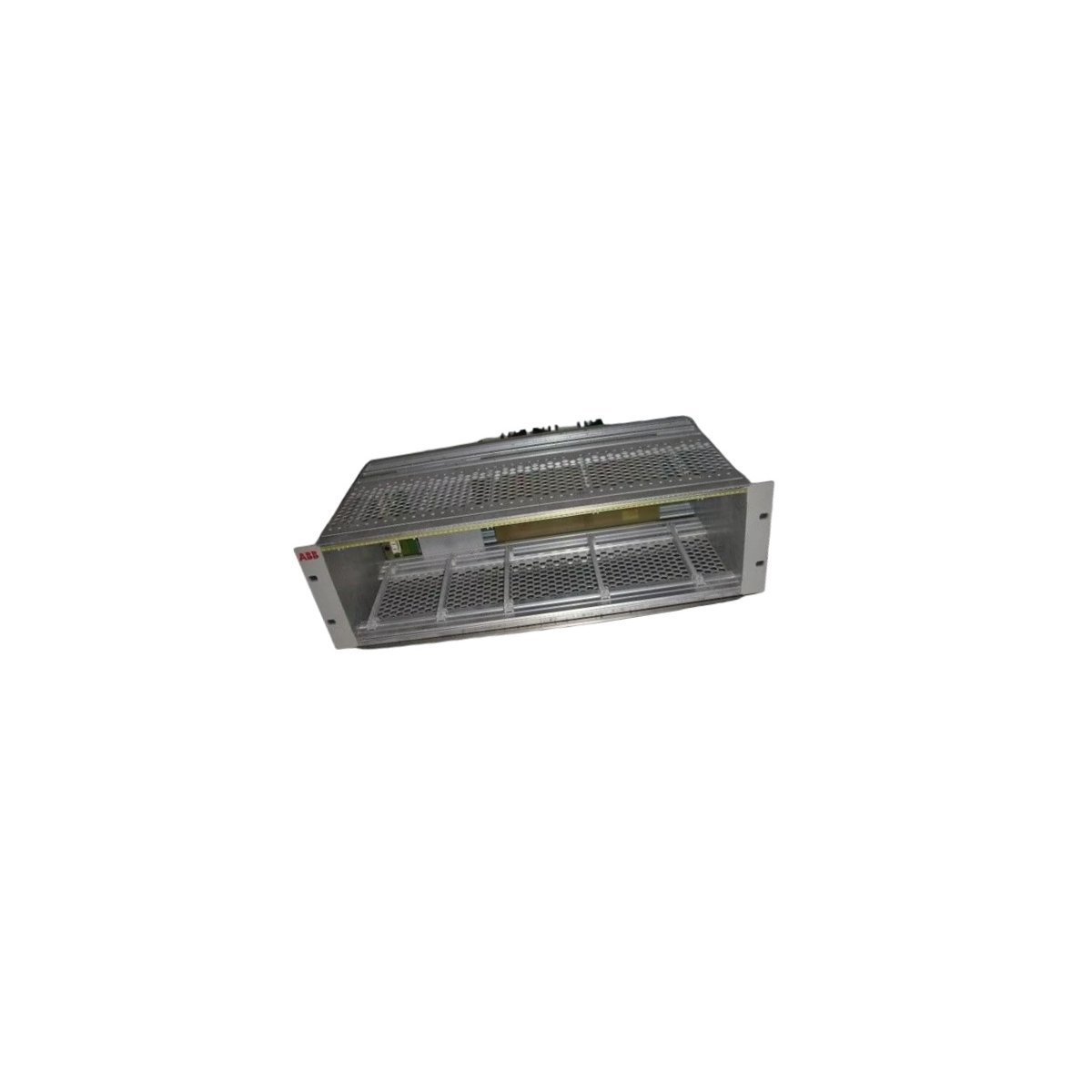

The ABB HENF105323R0002 P7LA, also cataloged as the HENF105323R0002 I/O Module, operates as a dedicated hardware component for high-speed signal processing and control algorithm execution within DCS platforms.
Hardware Specifications
Parameter
Specification
Model
HENF105323R0002 P7LA
Brand
ABB
Origin
SWEDEN
Weight
0.54 kg
Dimensions
3 x 25.3 x 26.1 cm
Operating Temp
-20 deg C to +55 deg C
Power Consumption
Not specified
Product Range
Procontic b
Communication Network and Firmware Compatibility
The integration of this module into the Procontic b environment relies on specific backplane bus communication protocols to ensure deterministic data exchange. Users must verify firmware flash compatibility before initial deployment to ensure synchronization with the central controller’s scanning cycle. The module manages I/O data throughput by maintaining high-speed signal polling, which is critical for maintaining scan time integrity across the distributed control network. In addition, strict adherence to these firmware requirements is necessary to prevent communication bottlenecks, thereby preserving the overall deterministic nature of the I/O processing loop.
Frequently Asked Questions (FAQ)
Q: Can the HENF105323R0002 P7LA module be hot-swapped during active system operation?
A: No. This module does not support hot-swapping. The system must be de-energized and the backplane power isolated prior to module extraction or insertion to prevent damage to the backplane bus interface or internal logic components.
Q: How is signal integrity maintained in high-noise industrial environments?
A: The module is designed with internal isolation circuits to mitigate electrical noise. Proper field installation requires that all shielded signal cables be terminated to a clean chassis ground at the entry point of the cabinet to ensure effective noise dissipation.
Field Installation Guidelines
DIN-Rail Mounting: Secure the module to a standard mounting rail, ensuring the mechanical latch is fully engaged to prevent displacement due to vibration.
Grounding Requirements: Ensure a low-impedance path to ground is provided for the module chassis. Verify that no ground loops are created between the I/O common and the protective earth (PE) bus.
Cable Routing: Maintain minimum clearance distances between low-voltage signal lines and high-voltage power lines to minimize electromagnetic interference (EMI).
Connector Inspection: Before installation, inspect the backplane pins for signs of oxidation or mechanical stress to ensure consistent electrical contact.
Configured for high-density signal distribution in DeltaV M-series I/O Subsystem networks, the Emerson KJ4001X1-BE1 12P0818X072 (KJ4001X1-BE1 8-Wide IO Carrier) provides direct physical/electrical execution.
Suffix Breakdown & Model Matrix
Model
Description
KJ4001X1-BE1
DeltaV M-series 8-wide I/O carrier with integrated shielding
The KJ4001X1-BE1 acts as the physical backbone for M-series I/O card mounting and signal termination. This carrier features a shielded design to isolate backplane communications from external electromagnetic interference (EMI). It supports 8-wide module placement, facilitating high-density I/O configurations while maintaining strict electrical separation between signal loops. The carrier integrates with the DeltaV system bus to manage data throughput and power distribution across all installed I/O modules. Users must adhere to proper shielding ground practices to ensure the 4-20 mA HART loop protocol signals maintain their rated accuracy during transmission.
Frequently Asked Questions
Q: Does the carrier support hot-swapping of I/O modules?A: Yes, the DeltaV M-series backplane architecture supports the removal and insertion of I/O modules while the carrier is energized, provided the specific I/O module type allows for such operations under the defined safety and process conditions.Q: How does the integrated shielding function?A: The carrier incorporates a conductive chassis plane that connects to the system earth ground. This plane acts as an EMI shield for the underlying bus communication traces, preventing noise coupling into sensitive analog input circuits.
Field Installation Guidelines
Mount the carrier horizontally on a standard DIN-rail or chassis plate within the control cabinet.
Verify that the carrier backplane ground lug connects securely to a low-impedance earth ground to satisfy EMI protection requirements.
Ensure all I/O modules seat firmly into the connector slots to prevent backplane bus communication timeouts or intermittent signal loss.
Maintain adequate clearance above and below the carrier to facilitate heat dissipation and cabling access.
Inspect all terminal blocks for loose connections after installation to ensure low-resistance contact for all signal and power circuits.
