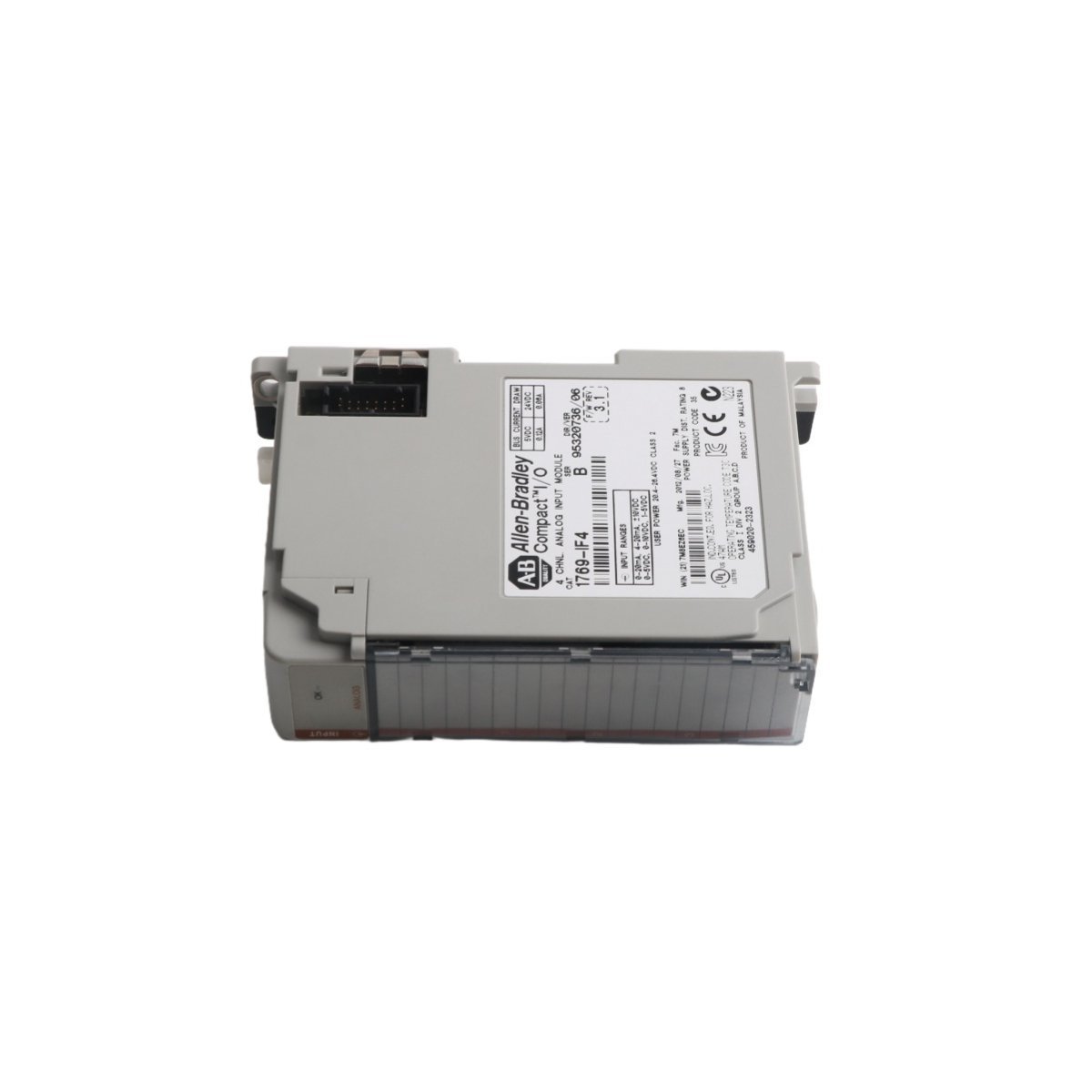

The Allen-Bradley 1769-IF4 is a 4-channel analog input module for CompactLogix systems. It supports 0-10V, ±10V, and 4-20mA signals with 14-bit resolution. This module features differential inputs and open-circuit detection for precise industrial process monitoring.
The Allen-Bradley 1769-IF4 provides reliable analog signal acquisition for industrial automation systems. This module expands the capabilities of CompactLogix and MicroLogix 1500 controllers. It features four high-precision input channels for monitoring various process variables. Furthermore, the hardware supports both voltage and current signals to ensure broad field device compatibility. Engineers utilize this module to integrate sensors like pressure transducers and flow meters into their control logic.
Each channel allows for independent software configuration to meet specific application needs. The module supports differential wiring to maximize noise immunity in electrically noisy environments. Alternatively, users can choose single-ended wiring for simpler installations.
This module includes several software-based tools to simplify troubleshooting and maintenance. It detects open-circuit conditions to identify broken field wiring immediately. Additionally, the unit supports process alarms that trigger when signals exceed predefined limits. Users can format data into engineering units or percentage values for easier PID loop integration. These features ensure the controller receives accurate data for critical decision-making processes.
The 1769-IF4 features a compact, fanless design suitable for tight enclosure spaces. It mounts securely to a standard DIN rail or a flat panel surface. Moreover, the unit withstands significant physical stress, including 30g of operational shock. The front panel contains an LED indicator to display the module’s current health and communication status. This robust construction ensures long-term performance in demanding manufacturing plants and processing facilities.
The module requires a 1769-RTBN18 removable terminal block for field wiring connections. It relies on the 1769 bus for power but requires an external supply for field-side transmitters. Specifically, the unit consumes 120mA at 5.1V DC and 60mA at 24V DC from the backplane. Proper grounding of the cable shields remains essential for maintaining signal precision. This careful design allows for a maximum of eight modules per power supply bank.
| Parameter | Specification |
|---|---|
| Model | 2094-BM02-S |
| Brand | Allen-Bradley |
| Origin | USA |
| Weight | 0.9 kg |
| Dimensions | 3.5 x 13 x 14.5 cm |
| Operating Temp | 0 to +50 deg C (Standard Industrial Range) |
| Power Consumption | 650 VDC nominal input / 115 Ohm internal shunt resistor |
| Module Type | Servo Drive (Axis Module) |
| Product Range | ControlLogix / Kinetix 6000 |
| System Classification | PLC Motion Control |
| Continuous Current | 10.3 A (RMS), 14.6 A (Sine Peak) |
| Velocity Loop Bandwidth | 500 Hz |
| Current Loop Frequency | 1300 Hz |
| Efficiency Rating | 98% |
