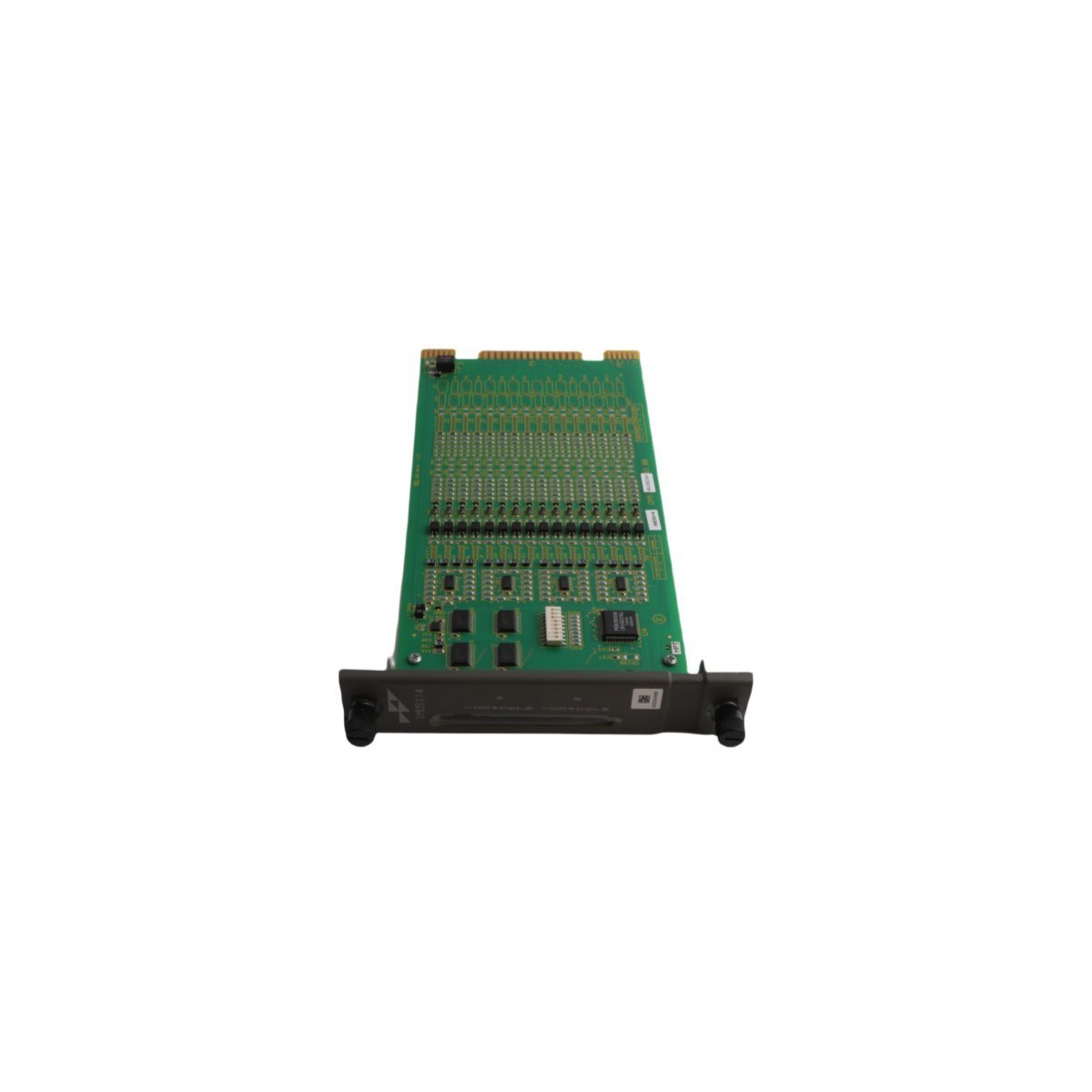

The ABB IMDSI14 is a 16-point 48 VDC digital input module for Symphony Harmony Rack systems. It provides isolated, high-density discrete signal acquisition for demanding industrial DCS environments.
The ABB IMDSI14 is a high-density digital input module designed for the Symphony Plus and Harmony Rack (HR) Series. This 16-channel component monitors discrete states from field equipment with 48 VDC logic levels. It serves as a slave module within the DCS architecture to relay critical process data to the controller. Because it utilizes advanced opto-isolation, the hardware remains protected from external electrical noise. This module ensures accurate monitoring of valve positions, motor starters, and alarm contacts in real-time.
| Parameter | Specification |
| Brand | ABB |
| Model Number | IMDSI14 |
| Product Series | Harmony Rack (HR Series) |
| Module Category | Digital Input (Slave) |
| Input Channels | 16 Points |
| Logic Voltage | 48 VDC |
| Net Weight | 0.2 kg |
| Dimensions | 3.5 x 31 x 17.6 cm |
| Country of Origin | Sweden |
Each IMDSI14 module manages 16 independent points to streamline large-scale data acquisition. The module features integrated filtering to eliminate signal bouncing from mechanical switches. Furthermore, the 48 VDC input rating provides robust signal transmission over long field cable runs. This higher voltage reduces the impact of potential voltage drops in expansive industrial facilities. Consequently, the system maintains high signal integrity even in electromagnetically noisy environments.
The compact 0.2 kg design allows for high-density mounting within the Symphony Harmony Rack. This architecture optimizes cabinet space while providing comprehensive coverage of field instrumentation. Moreover, the module supports hot-swapping under certain rack conditions to simplify maintenance procedures. Each input channel includes diagnostic capabilities to verify the health of the field loop. These features significantly improve system availability by reducing the time required for loop testing.
ABB engineered the IMDSI14 to withstand the rigorous conditions of power plants and refineries. The circuit board features a protective coating to resist humidity and airborne contaminants common in industrial sites. Additionally, the unit meets global standards for distributed control system hardware. This compliance guarantees seamless operation within the wider 800xA or Symphony Plus ecosystems. Furthermore, the lightweight construction minimizes mechanical stress on the rack backplane connectors during vibration.
Professional installation ensures the module reaches its full service life of several decades. Maintenance teams can access channel status via the system software or local LED indicators. This dual-layer monitoring approach facilitates rapid troubleshooting during process upsets. Using genuine IMDSI14 modules preserves the certification and safety integrity of the entire control rack.
