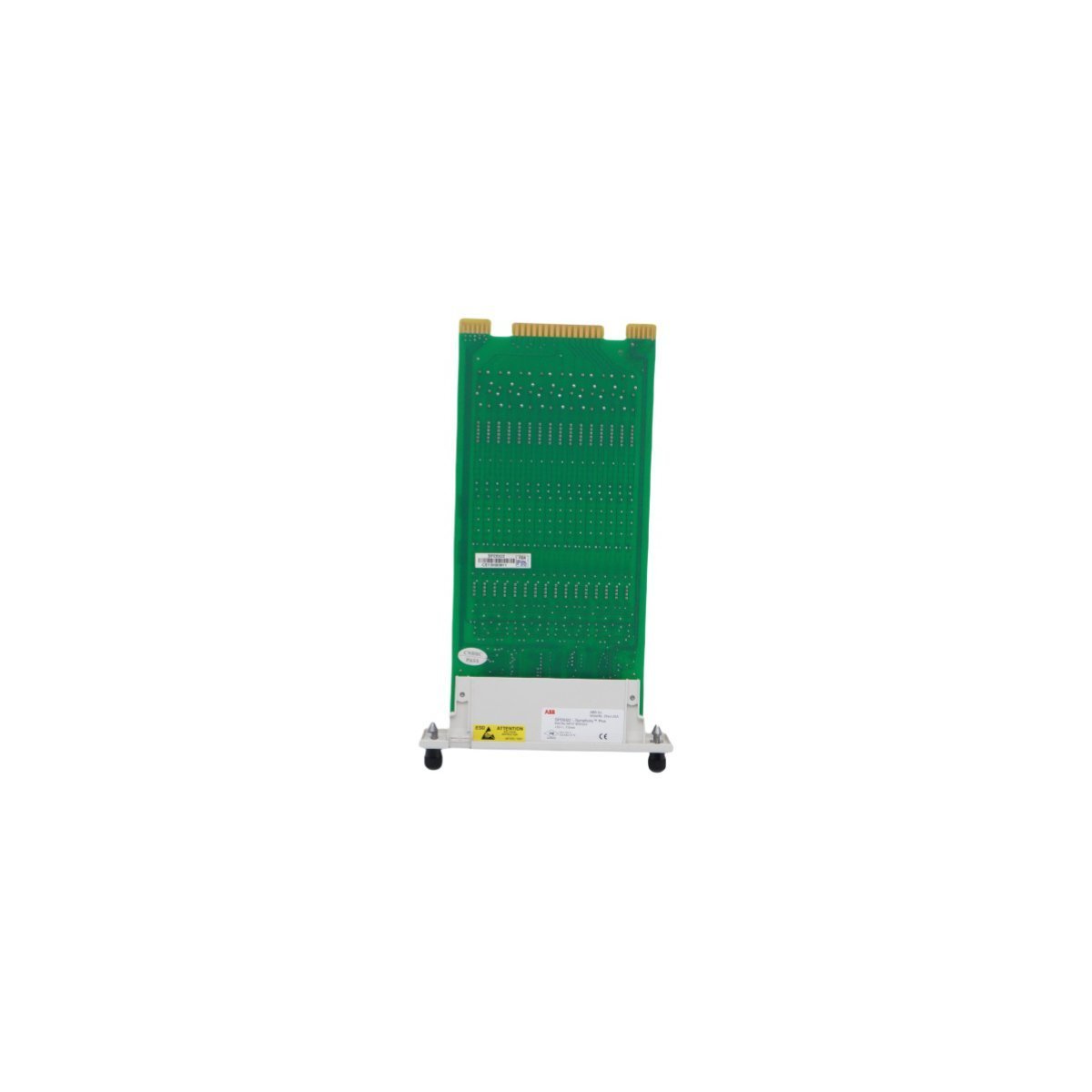

The ABB SPDSI22 is a 16-channel universal digital input module for Symphony Plus and INFI 90 systems. It features 32 jumpers for flexible configuration and isolated signal processing for robust DCS monitoring.
The ABB SPDSI22 is a high-density digital input module designed for the Symphony Plus and INFI 90 Distributed Control Systems. This universal component interface captures 16 discrete signals from field-mounted equipment. It effectively monitors the status of contacts, limit switches, and pushbuttons across the industrial plant. By utilizing advanced signal filtering, the module provides clean data to the controller rack. Consequently, it maintains high system reliability even in environments with significant electrical noise.
| Characteristic | Specification |
| Brand | ABB |
| Model Number | SPDSI22 |
| Product Series | Symphony Plus / INFI 90 |
| Module Type | Digital Input |
| Number of Channels | 16 Universal Inputs |
| Net Weight | 0.24 kg |
| Product Dimensions | 3.7 x 31.3 x 17.7 cm |
| Origin | Sweden |
| System Category | DCS / Compact Product Suite |
The SPDSI22 features 16 universal input channels that support various field voltage levels. To ensure maximum flexibility, the module includes 32 jumpers for hardware-level configuration. These jumpers allow technicians to tailor each input to specific application requirements. Furthermore, the unit provides optical isolation for every channel. This protection prevents high-voltage transients from damaging the sensitive backplane electronics. Therefore, the module serves as a robust barrier between the field and the control logic.
Each channel incorporates sophisticated debouncing logic to prevent false triggering from mechanical contact bounce. This precision ensures that the DCS receives only valid state changes. Moreover, the module supports fast sampling rates for time-critical monitoring tasks. Integrated LED indicators on the front panel display the real-time status of all 16 inputs. This visual feedback simplifies commissioning and helps maintenance teams identify field wiring issues quickly.
Engineers optimized the SPDSI22 for continuous operation in harsh industrial sectors. The lightweight 0.24 kg chassis handles extreme vibrations and temperature fluctuations common in power plants. Additionally, the modular design facilitates rapid installation into standard Symphony Plus racks. This compatibility reduces the complexity of system upgrades or capacity expansions. By following international industrial standards, the module ensures long-term stability and minimal maintenance needs.
Reliable data acquisition is essential for maintaining plant safety and productivity. The SPDSI22 delivers consistent performance by utilizing high-grade components and a simplified circuit path. Its small footprint allows for high-density I/O configurations within control cabinets. Consequently, users can monitor more field points without increasing the hardware rack size. This efficiency makes the SPDSI22 an ideal solution for modernizing legacy INFI 90 installations.
