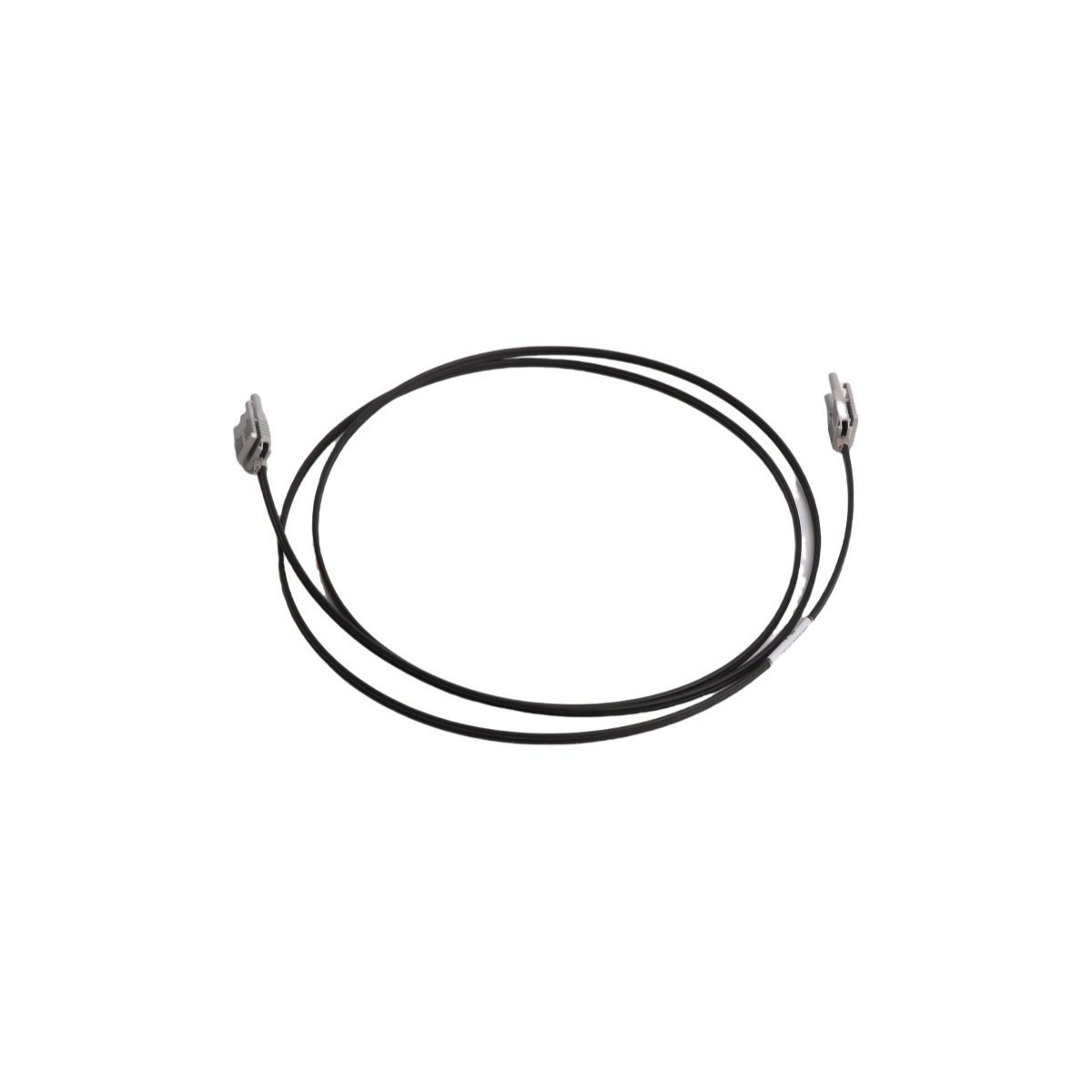

The ABB TK811V015 (3BSC950107R1) is a 1.5-meter Plastic Optical Fiber cable designed for Advant OCS and 800xA systems. It provides EMI-immune, 650 nm wavelength communication for AC 800M controllers in demanding industrial environments.
The ABB TK811V015 (Part Number 3BSC950107R1) serves as a critical communication link within the Advant OCS and 800xA control systems. This Plastic Optical Fiber (POF) cable facilitates high-speed data exchange between AC 800M controllers and peripheral modules. By utilizing light-based transmission, the cable provides total immunity to electromagnetic interference (EMI). This feature makes it essential for maintaining signal integrity in electrically noisy industrial environments.
| Parameter | Specification Details |
| Model Designation | TK811V015 |
| Product ID | 3BSC950107R1 |
| Cable Length | 1.5 Meters |
| Fiber Material | Plastic Optical Fiber (POF) |
| Operational Wavelength | 650 nm (Visible Red Light) |
| Attenuation | ≤ 3.5 dB/km |
| Jacket Material | Flame-retardant PVC (Orange) |
| Minimum Bend Radius | 30 mm (Dynamic) / 15 mm (Static) |
| Temperature Range | -25°C to +60°C |
| Standard Compliance | IEC 60332-1 (Flame Retardancy) |
Engineers utilize the TK811V015 for local bus extensions where copper cabling risks grounding loops. The cable features a keyed cross-over configuration to ensure correct Tx/Rx polarity during installation. The numerical aperture of 0.50 allows for high coupling efficiency even with standard optical connectors. Furthermore, the UV-resistant jacket protects the core from environmental degradation in outdoor-facing cabinets.
This fiber optic component integrates primarily with ABB Distributed Control Systems (DCS). It supports critical communication tasks in power generation, oil and gas processing, and chemical manufacturing. Because it offers low-latency performance, it suits real-time monitoring and safety-critical control loops. The lightweight 0.01 kg construction allows for easy routing through congested cable trays and tight conduit runs.
