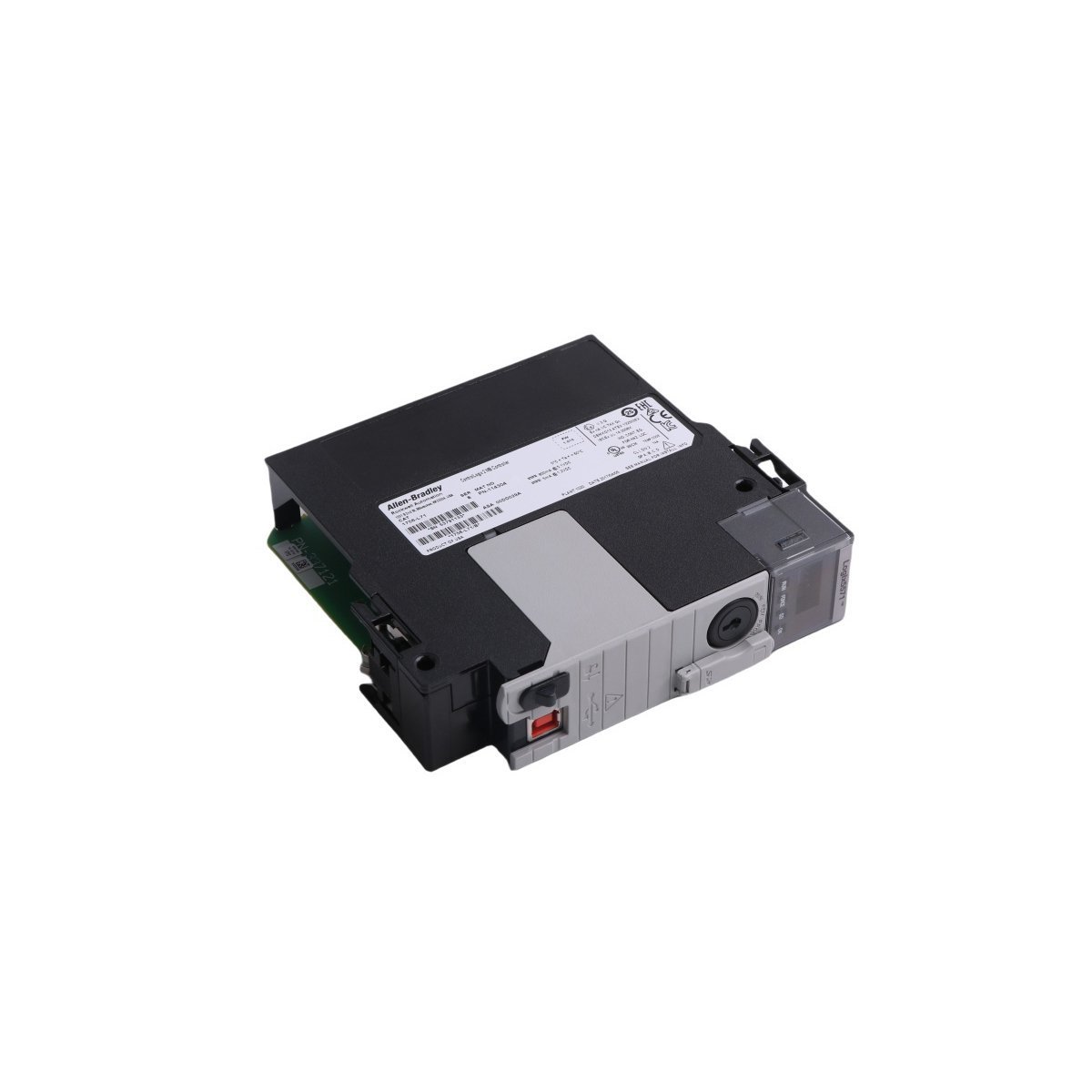

Allen-Bradley 1756-L71S GuardLogix Integrated Safety PAC Module

Technical Overview

The Allen-Bradley 1756-L71S functions as a high-performance GuardLogix Integrated Safety Controller, designed to provide simultaneous control of standard automation and safety-critical functions. This Programmable Automation Controller (PAC) belongs to the ControlLogix 5570 family and utilizes a 1oo2 (one-out-of-two) safety architecture to achieve high integrity levels. By combining functional safety with standard processing in a single module, the 1756-L71S eliminates the need for a separate safety PLC, thereby reducing hardware costs and simplifying system architecture.

Operational Features and Safety Integrity

This PAC manages safety tasks by executing a dedicated safety task alongside standard control routines. Because the 1756-L71S supports Safety Integrity Level 3 (SIL 3) and Performance Level e (PL e) standards, it meets the most rigorous global requirements for machinery and process safety. To achieve these ratings, the controller must be paired with a 1756-L7SP safety partner module, which performs cross-checking and diagnostic verification.

The 1756-L71S incorporates 2 MB of standard user memory and 1 MB of dedicated safety memory. Furthermore, it features an onboard USB 2.0 port for rapid firmware updates and programming. Since the module lacks internal volatile memory for storage, it utilizes a 1GB Secure Digital (SD) card to provide non-volatile storage, ensuring that the control logic remains intact during power cycles. Moreover, the controller supports up to 128,000 total I/O points and can manage 100 separate programs per task, offering immense scalability for complex industrial applications.

Key Technical Characteristics

• Manufacturer: Allen-Bradley / Rockwell Automation
• Model Number: 1756-L71S
• Product Type: GuardLogix Integrated Safety Controller
• Standard User Memory: 2 MB
• Safety Memory: 1 MB
• Safety Rating: SIL 3, PLe, Cat. 4 (when used with 1756-L7SP)
• Communication Ports: Built-in USB 2.0 (Programming and Maintenance)
• Digital I/O Support: 128,000 Max
• Analog I/O Support: 4,000 Max
• Chassis Compatibility: 1756 ControlLogix Chassis (Slot 0 and adjacent)
• Power Dissipation: 2.5 Watts
• Thermal Dissipation: 8.5 BTU/hr

Primary Applications

• Implementing Emergency Stop (E-Stop) and light curtain logic in automated manufacturing.
• Controlling safety-rated motion and robotic cells in automotive assembly lines.
• Managing burner management systems (BMS) in high-risk thermal processing.
• Providing integrated safety for high-speed material handling and sorting systems.
