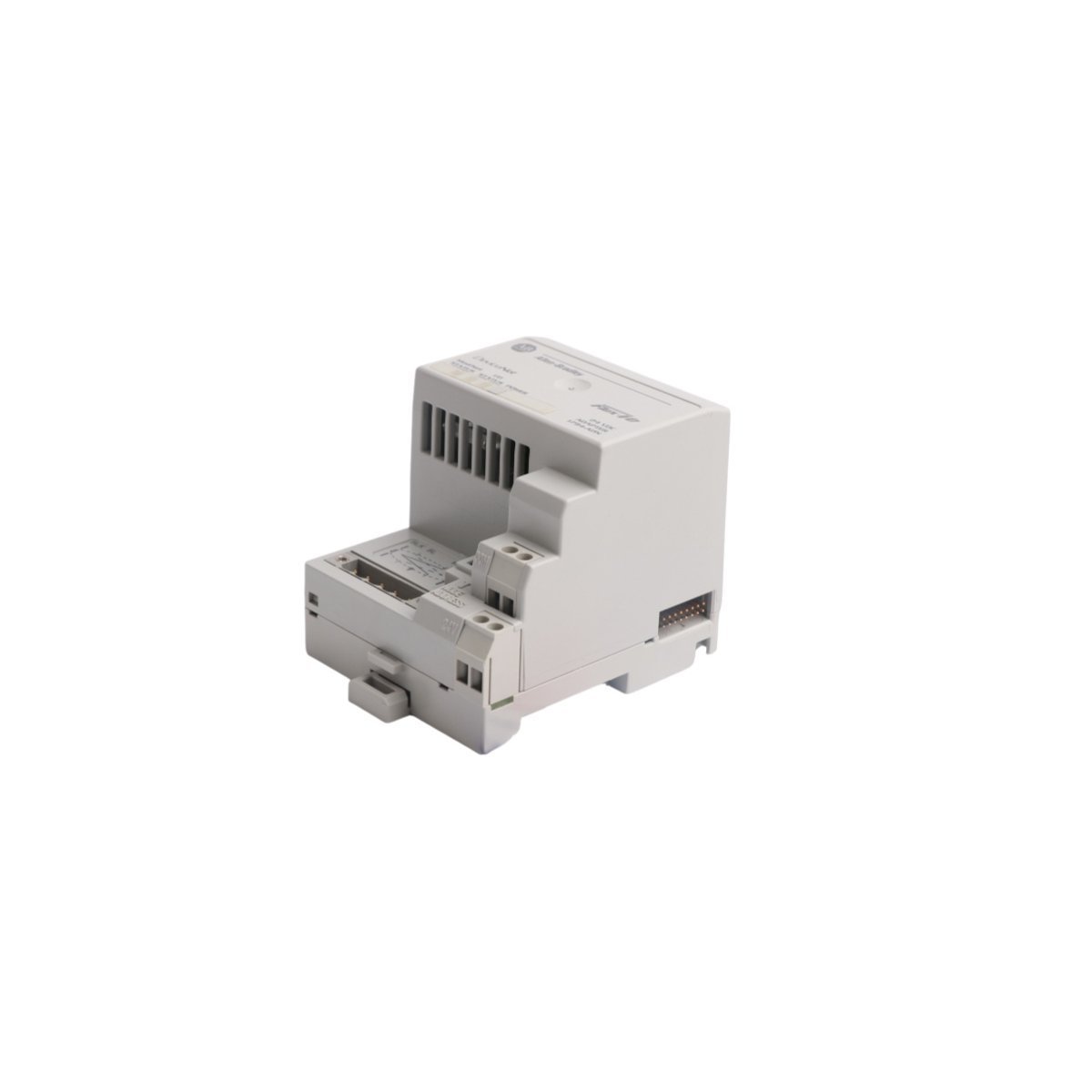

The Allen-Bradley 1794-ADN connects Flex I/O modules to DeviceNet networks with high efficiency. It supports up to eight modules, features rotary switch addressing, and offers modular hot-swappable capabilities to maximize system uptime and reduce wiring costs.
The Allen-Bradley 1794-ADN functions as a high-performance communication interface that connects Flex I/O modules to a DeviceNet network. This adapter manages data exchange between the master controller and up to eight terminal bases, effectively bridging field signals with the control system. By acting as a gateway, the 1794-ADN eliminates the need for individual network connections for every I/O point, which significantly reduces wiring complexity and installation costs.
By utilizing the standard DeviceNet protocol, this unit supports various communication speeds including 125k, 250k, and 500k baud. The module automatically detects the network rate or allows manual configuration via onboard rotary switches, providing flexibility during system commissioning. Furthermore, the 1794-ADN executes real-time diagnostics on the I/O backplane and the network link, enabling operators to identify hardware failures or communication bottlenecks instantly.
Because the adapter features a modular design, users can replace or expand I/O slices without disturbing the network cabling. This “Removal and Insertion Under Power” (RIUP) capability minimizes system downtime and simplifies maintenance procedures. Consequently, the 1794-ADN delivers a scalable and robust distributed I/O solution for demanding industrial environments, ensuring consistent data integrity across the entire DeviceNet architecture.
