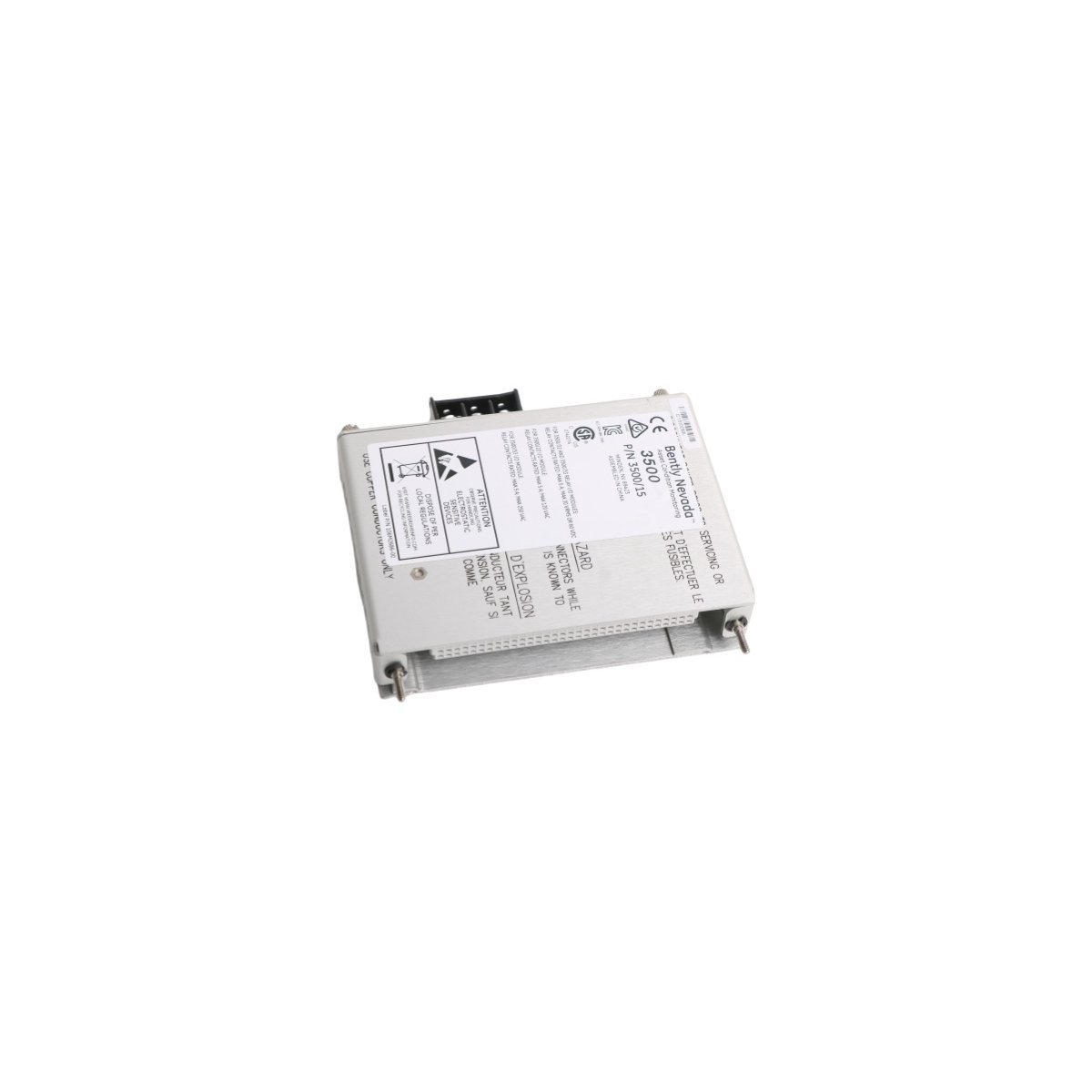

Bently Nevada 125840-02 Low Voltage AC Power Input Module

Technical Specification Overview

The Bently Nevada 125840-02 serves as the primary Rear I/O interface for the 3500 Machinery Protection System’s power supply. This module accepts low-voltage alternating current and directs it to the front-mounted Power Supply module. It handles input voltages ranging from 85 to 132 Vac, effectively bridging the gap between plant mains and the rack’s internal backplane. By isolating and filtering the incoming power, the 125840-02 protects sensitive monitoring electronics from line noise and voltage surges.

Design and Functional Capabilities

Engineers designed this Power Input Module (PIM) for high-availability environments. It installs into the dedicated power slots at the rear of the 3500 rack. When a plant requires redundant power, technicians install two of these modules to ensure the monitoring system remains active if one power source fails. Furthermore, the unit features robust screw terminals that secure field wiring against industrial vibrations. The 125840-02 also includes an integrated fuse to protect the internal circuitry from over-current conditions.

• Manufacturer: Bently Nevada
• Model Number: 125840-02
• Module Type: Low Voltage AC Power Input Module (PIM)
• System Range: 3500 Series Machinery Protection System
• Input Voltage: 85 to 132 Vac
• Frequency Range: 47 to 63 Hz
• Current Consumption: 2.3 A maximum
• Operating Temperature: -30°C to +65°C
• Net Weight: 0.32 kg
• Dimensions: 2.5 x 11.8 x 12.0 cm

Operational Impact and Industrial Applications

This power input module actively maintains the integrity of machinery protection systems in diverse industrial settings. Because it handles the critical task of power distribution, it enables continuous vibration and speed monitoring for high-value assets. Consequently, operators can rely on the 3500 system to perform safety trips and provide diagnostic data without interruption. The module’s design complies with strict international standards, ensuring safe deployment in mission-critical facilities.

Primary industrial applications include:

• Power Generation: Providing stable power to turbine monitoring racks.
• Oil and Gas: Supporting safety systems in refineries and offshore platforms.
• Water Treatment: Powering protection hardware for high-capacity pumps.
• Mining and Metal: Protecting large-scale fans and crushers in harsh climates.

Mechanical Integrity and Environmental Protection

Bently Nevada utilizes industrial-grade materials to ensure the 125840-02 withstands the rigors of 24/7 operation. The module’s compact form factor allows for efficient heat dissipation within the 3500 rack housing. Additionally, the gold-plated connector pins resist oxidation, which maintains a high-quality electrical connection over the life of the system. This durability, combined with the module’s high EMI rejection capabilities, ensures that the power supply remains stable even when located near high-voltage motor starters or switchgear.
