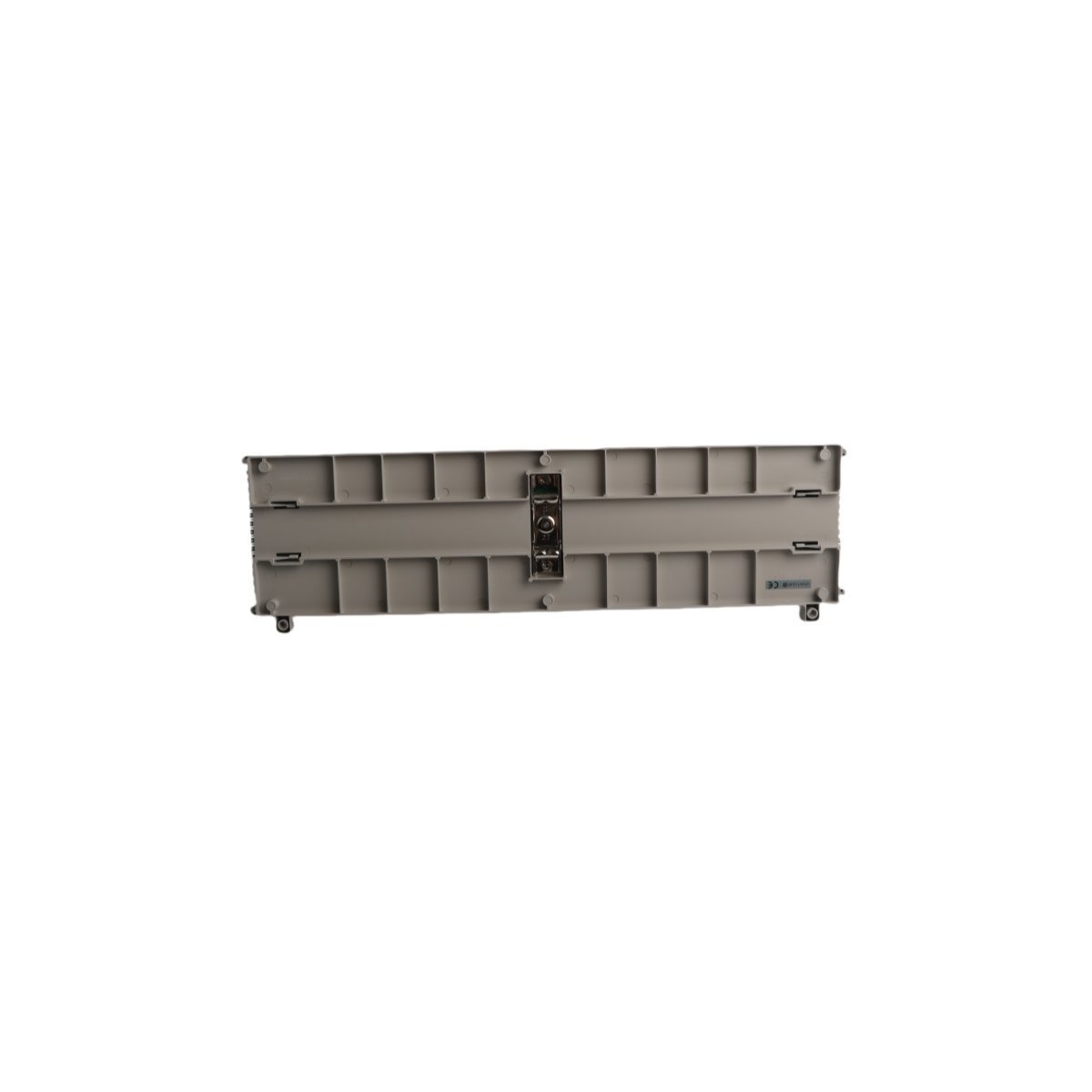

Emerson 1C31222G01 5A26458G05 Fisher PLC Module

The Emerson 1C31222G01 (5A26458G05) is a high-performance Relay Output Base for Ovation and Fisher PLC systems. This 1.66kg module provides reliable discrete control and electrical isolation for critical DCS applications.

The Emerson 1C31222G01, often paired with the 5A26458G05 assembly, functions as a high-reliability relay output base. This module serves the Ovation Distributed Control System (DCS) and Fisher PLC applications. It acts as the physical and electrical interface between the controller logic and field-level final control elements. By providing robust signal isolation, this component protects sensitive control electronics from industrial electrical noise and surges.

Core Functional Overview

This Relay Output Base facilitates the execution of discrete control commands across various industrial processes. It converts low-voltage logic signals from the processor into higher-power switching actions. Consequently, this module can directly drive solenoid valves, motor starters, and indicating lights. The design emphasizes modularity, allowing for rapid replacement without disturbing field wiring. Operators rely on this hardware to maintain high system availability in power generation and water treatment facilities.

Key Technical Specifications

Technical Parameter	Specification Detail
Manufacturer	Emerson (Fisher/Ovation)
Base Model Number	1C31222G01
Assembly Part Number	5A26458G05
Product Category	Relay Output Base / PLC Module
Unit Weight	1.66 kg
Module Dimensions	42.2 x 12.4 x 8.2 cm
Country of Manufacture	USA
System Compatibility	Ovation DCS / DeltaV SIS

Diagnostic and Safety Features

Safety remains a central design priority for the 5A26458G05 assembly. The unit incorporates advanced diagnostic capabilities to monitor the health of output relays. These features help maintenance teams identify contact wear or coil failures early. Because the module supports proactive maintenance, it significantly reduces the likelihood of unplanned process shutdowns. The user interface remains intuitive, providing clear visual status indication for each output channel.

Operational Integration

The 1C31222G01 integrates seamlessly into existing Emerson control architectures. It supports high-density I/O configurations while maintaining excellent thermal performance. Furthermore, the base design ensures secure electrical connections via heavy-duty terminal blocks. This stability is vital for maintaining signal integrity in high-vibration power plant environments. Even though the product reached its official end-of-life status in late 2018, it remains a critical spare part for global infrastructure.
