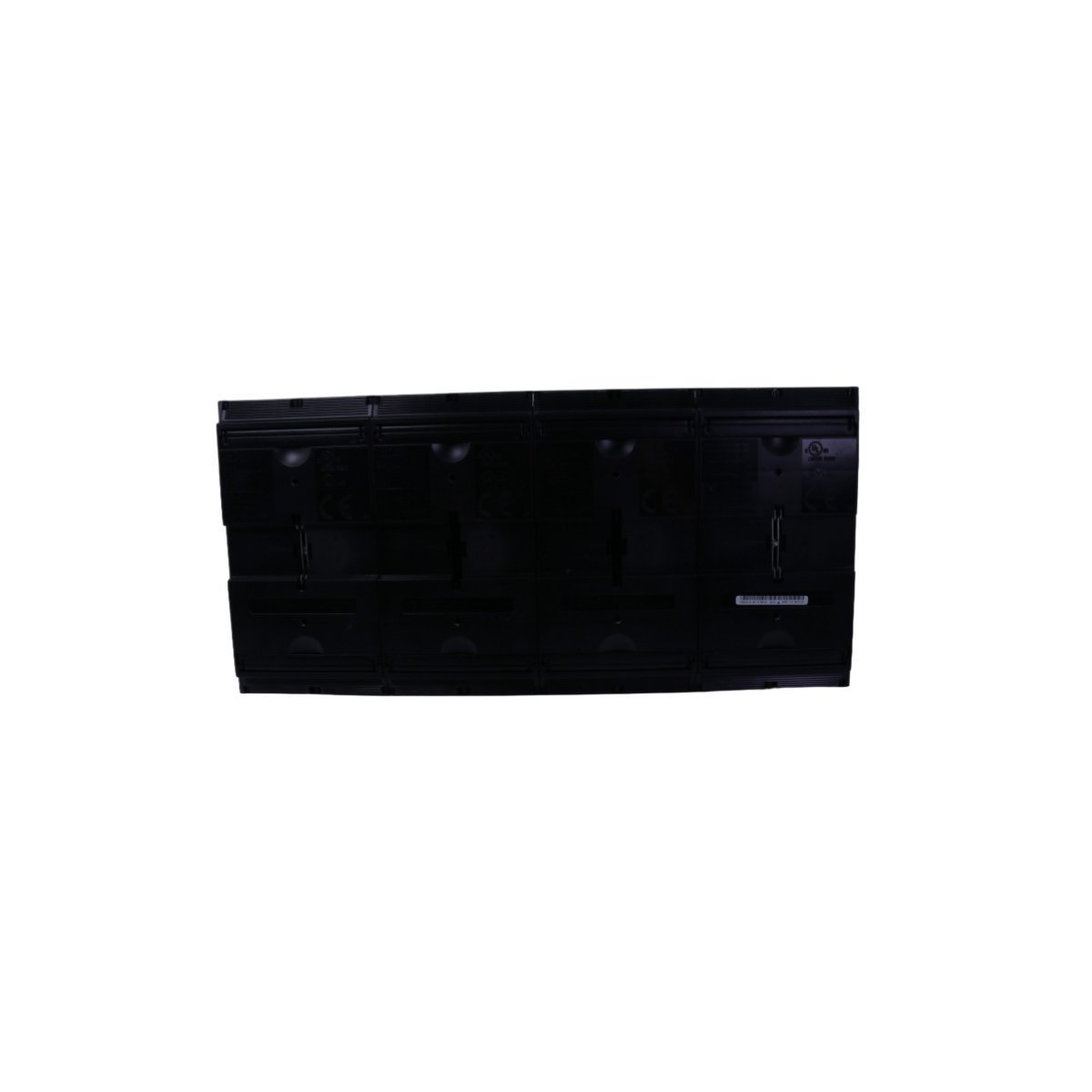

Foxboro P0926JMA High-Density Clamp Base Module 200 Series I/O

Primary System Logic and Connectivity

The Foxboro P0926JMA serves as the foundational mounting and wiring interface for 200 Series Fieldbus Modules (FBMs). By providing a high-integrity mechanical and electrical backplane, this base module facilitates the direct connection of field instrumentation to the Foxboro DCS. Once secured to the DIN rail, the unit coordinates the distribution of both system power and redundant fieldbus communications to the seated FBMs. Because it utilizes a specialized clamp-style terminal architecture, it ensures a gas-tight, vibration-resistant landing point for field wiring, effectively bridging the gap between physical process sensors and digital control logic.

Performance Characteristics and Asset Protection

• Optimizes Wiring Efficiency: The P0926JMA features a high-density arrangement of compression-clamp terminals. In doing so, it allows technicians to terminate a large volume of field cables in a compact footprint, which significantly reduces the overall size requirements for marshalling cabinets.
• Ensures Redundant Bus Integrity: The baseplate architecture incorporates dual independent pathways for the 2 Mbps HDLC fieldbus. As a result, the system maintains continuous data flow even if one communication branch sustains damage, thereby preventing loss of control over critical process loops.
• Simplifies Field Maintenance: By leveraging a modular “plug-and-play” design, the P0926JMA allows for the removal and replacement of FBMs without disturbing the permanent field wiring. Consequently, maintenance teams can perform hardware upgrades or repairs under live conditions with zero risk of miswiring.
• Protects Against Electrical Faults: Beyond its structural role, the base module includes integrated shielding and grounding points for every channel. Therefore, it actively shunts electromagnetic noise and high-voltage transients to ground, protecting the sensitive electronic modules from external interference.
• Withstands Demanding Environments: Finally, the hardware is treated with an industrial-grade conformal coating to resist moisture and airborne contaminants. By maintaining this protective barrier, the unit ensures a long service life in the corrosive atmospheres typical of chemical processing and water treatment facilities.

Technical Specifications

• Brand: Foxboro
• Model Identification: P0926JMA
• Series Compatibility: Foxboro 200 Series I/O / FBM
• Termination Type: Compression Clamp (Screwless)
• Channel Capacity: Supports up to 2 Fieldbus Modules (FBMs)
• Bus Connection: Redundant 2 Mbps HDLC Fieldbus
• Voltage Rating: 24 V DC (Internal system distribution)
• Current Capacity: Optimized for low-power signal loops
• Environmental Class: ISA-S71.04 Class G3 (Harsh)
• Mounting: Standard 35mm DIN Rail
• Operating Temperature: –20 °C to +70 °C
• Certifications: UL, CSA, CE, and ATEX Zone 2
