GE DS200KLDCG1AAA Mark V Speedtronic Display and Keypad Board

Product Overview

The GE DS200KLDCG1AAA serves as a specialized Key/LED/Display interface board within the Mark V Speedtronic Turbine Control System. This board provides critical local visualization and operator input capabilities for the automated management of gas, steam, and wind turbines. As a late-generation component of the Speedtronic lineage, the DS200KLDCG1AAA integrates advanced diagnostic displays with a rugged keypad interface, allowing technicians to monitor turbine parameters and execute local commands directly from the drive assembly or control cabinet.

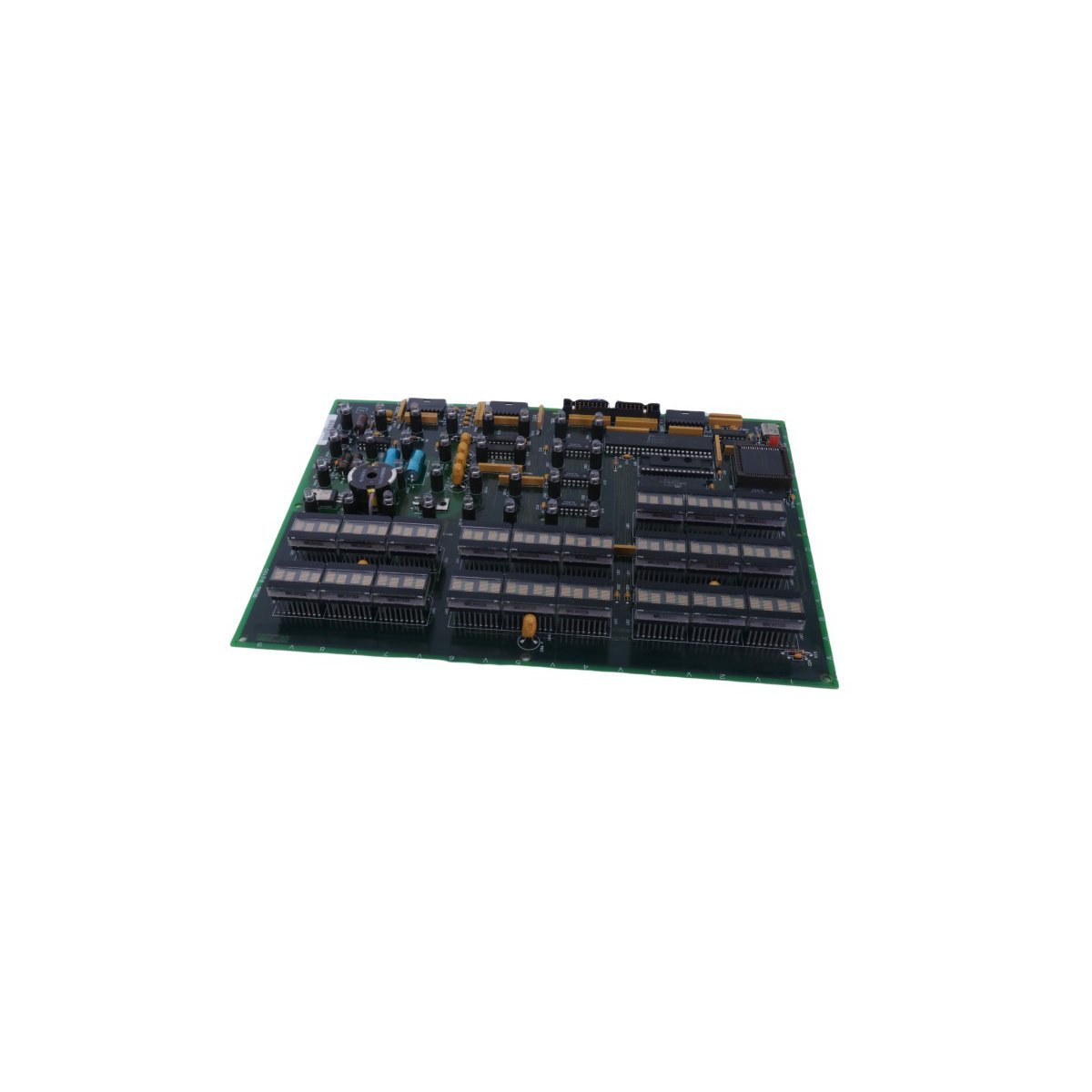

Hardware Architecture and Visual Interface

The DS200KLDCG1AAA features a dense array of visual indicators and alphanumeric displays to provide comprehensive real-time data. The hardware includes:

• Alphanumeric Displays: Twenty-one separate four-character display windows provide detailed status codes and operational data.
• LED Indicators: Thirty-two individual LEDs offer immediate visual confirmation of system health, faults, and active processes.
• Processor Interface: A 40-pin ribbon cable connection strip facilitates high-speed data communication between the display board and the primary Mark V control processors.
• Onboard Components: The board utilizes high-grade resistors, capacitors, and diodes, all protected by a specialized insulated conformal coating to prevent moisture-induced failure and electrical arcing.

Configuration and Functional Revisions

As indicated by the “AAA” suffix, this version of the board incorporates three significant functional revisions over the base DS200KLDCG1 model. These updates improve signal processing and display stability. Furthermore, the board includes a series of hardware jumpers used to define operational behavior. While some of these jumpers allow for field customization, others remain factory-set to maintain the integrity of the Speedtronic control logic. Consequently, users must consult the Mark V technical manual before altering any jumper positions.

Installation and Maintenance Guidelines

To ensure long-term reliability within a DCS environment, the DS200KLDCG1AAA requires precise installation procedures. Technicians must mount the board using the integrated insulated mounting holes to prevent grounding loops against the cabinet chassis. Additionally, proper cable routing is essential; maintaining separation between the 40-pin data ribbon and high-voltage power lines prevents electromagnetic interference (EMI) that could corrupt display data. When performing a replacement, operators should document the existing cable paths to ensure that the new board does not obstruct internal airflow, which could otherwise lead to localized overheating.

Key Technical Specifications

• Brand: General Electric (GE)
• Model Number: DS200KLDCG1AAA
• System Series: Mark V Speedtronic
• Function: Local Operator Display and Keypad Interface
• Display Units: 21 x 4-Character Alphanumeric Displays
• Status Indicators: 32 Individual LEDs
• Connectivity: 40-Pin Ribbon Connector
• System Category: Distributed Control System (DCS) / Turbine Control
• Physical Dimensions: 28.0 x 21.9 x 2.2 cm
• Weight: 0.54 kg
