GE IC693DSM302 Series 90-30 Motion Mate Control Module
Sale!
SKU: GE Fanuc IC693DSM302

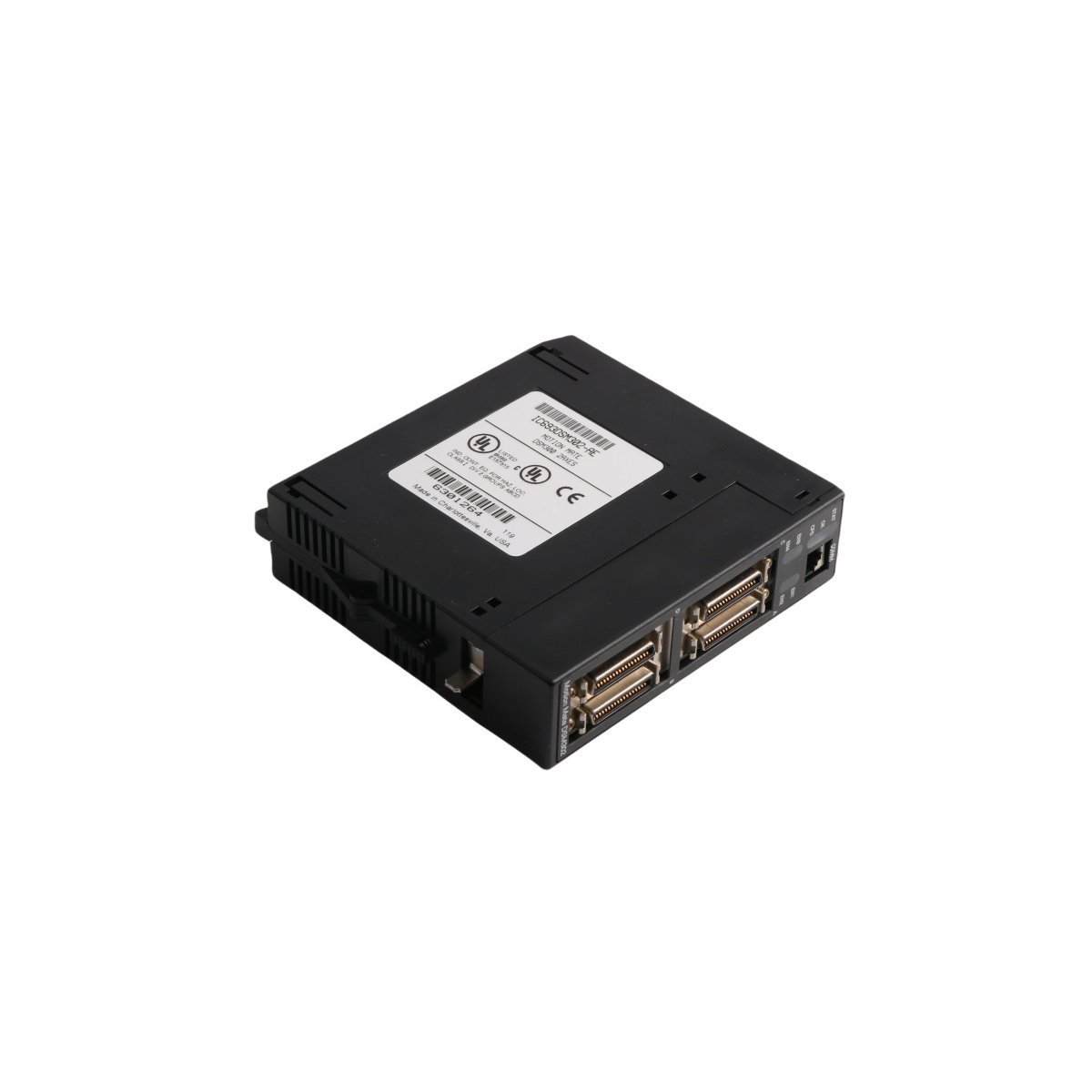

GE IC693DSM302 Series 90-30 Motion Mate Control Module
Purchase the GE IC693DSM302 Motion Mate Control Module directly from our authentic component inventory. Featuring brand new original stock, verified industrial packaging, and immediate global shipping. Optimize your axis control systems today.
The GE IC693DSM302, also cataloged as the IC693DSM302 Motion Mate Control Module, operates as a dedicated hardware component for multi-axis servo positioning within Series 90-30 PLC platforms. The module executes localized motion trajectories and velocity profiles via an integrated digital signal processor, offloading intensive mathematics directly from the main PLC central processing unit. Physical communication interfaces support direct connections to digital servo motors, SL Series analog servos, and third-party analog drive systems.
Hardware Specifications
Parameter
Specification
Model
IC693DSM302
Brand
GE
Origin
USA
Weight
0.34 kg
Dimensions
3.5 x 13 x 13.7 cm
Operating Temp
0 to 60 deg C
Power Consumption
5 VDC via backplane
Module Type
Motion Mate Control Module
Control Axes
Dual-axis configurations
Block Processing Time
Less than 5 milliseconds
Positioning Range
-8,388,608 to +8,388,607 user units
Velocity Limits
1 to 8,388,607 user units per second
Acceleration Limits
Up to 134,217,727 user units per second
Communication Ports
RS-232 Serial Port
Storage Capacity
Non-volatile memory for 10 programs and 40 subroutines
System Platform
Series 90-30 PLC
HS Code
8537101190
Backplane Bus Communication Velocity and Deterministic Networks
The module interfaces directly through the proprietary backplane bus communication velocity architecture of the Series 90-30 chassis, guaranteeing real-time status updates and command transfers between the PLC registers and the dual-axis motion loops. For high-speed deterministic networking, configuration paths and diagnostic telemetry are synchronized to maintain phase alignment during coordinated high-acceleration profiles. Loop tuning data, block execution parameters, and encoder feedback calculations are retained natively in non-volatile storage to protect system variables against structural voltage loss or power cycling events.
Frequently Asked Questions
Q: How is the RS-232 serial port utilized during system commissioning?
A: The integrated RS-232 serial port facilitates direct physical connection to external programming terminals, allowing the configuration of local motion profiles, axis parameter optimization, and firmware flash updates.
Q: Does the module require manual configuration data reload after a power loss?
A: No. The hardware incorporates non-volatile memory that stores up to 10 distinct motion programs and 40 operational subroutines, ensuring immediate execution retrieval upon backplane power restoration.
Q: What are the compatibility limitations regarding analog servo drives?
A: The hardware supports standard dual-axis analog servo drive interfaces, allowing integration with both GE SL Series analog drives and certified third-party analog systems through matching signal pinouts.
Field Installation Guidelines
Backplane Insertion and Grounding: Power down the Series 90-30 rack before seating the module into the baseplate slot. Ensure the top and bottom chassis hooks are firmly engaged to complete the structural ground plane loop connection.
Serial Interface Shielding: Use fully shielded cables for the RS-232 communication connection. Terminate the cable drain wire at the designated frame ground point to suppress ambient electromagnetic interference from motor power loops.
Encoder Routing Separations: Route all low-voltage encoder feedback signals and analog command lines through dedicated, grounded steel conduits separate from high-voltage AC/DC motor power wiring to mitigate crosstalk.
The Allen Bradley 1756-IF16, also cataloged as the 1756-IF16 ControlLogix 16 Pt A/I Module, operates as a dedicated hardware component for analog signal acquisition within industrial programmable logic controller architectures.
Hardware Specifications
Parameter
Specification
Model
1756-IF16
Brand
Allen Bradley
Origin
USA
Weight
0.35 kg
Dimensions
23.3 x 18.2 x 5.3 cm
Operating Temp
0 deg C to 60 deg C
Power Consumption
1 W (backplane current draw at 5.1 VDC: 150 mA)
Profinet / EtherNet/IP Deterministic Networks
The module integrates seamlessly into deterministic industrial network topologies through ControlLogix backplane communication, supporting Producer/Consumer technology to broadcast input data across multiple controllers without polling overhead. Network update intervals are configured via Logix Designer, ensuring synchronous multi-channel sampling schedules across distributed chassis architectures.
Frequently Asked Questions
Q: Does the module support removal and insertion under power (RIUP)?A: Yes, the 1756-IF16 supports RIUP when installed in a standard ControlLogix chassis, allowing hardware replacement without powering down the entire rack system.Q: What is the backplane current consumption profile?A: The module draws 150 mA from the 5.1 VDC backplane rail and 20 mA from the 24 VDC backplane rail during standard operation.Q: How is individual channel filtering configured?A: Digital filter frequencies ranging from 1 Hz to 60 Hz can be independently assigned to each of the 16 channels via software configuration to attenuate industrial line noise.
Field Installation Guidelines
Mount the module into any available slot within a standard ControlLogix chassis using the chassis guide rails, ensuring the latching mechanism engages securely. Connect shielded twisted-pair cables to the removable terminal block (RTB) to mitigate electromagnetic interference. Terminate cable shields to the nearest functional earth ground bar using grounding lugs. Verify backplane power status prior to seating the module to prevent electrical transients.
The Allen Bradley 80190-378-52, also cataloged as the 80190-378-52 Inverter Control Board, operates as a dedicated hardware component for inverter logic processing and signal regulation within PLC-5 platform networks.
Hardware Specifications
Parameter
Specification
Model
80190-378-52
Brand
Allen Bradley
Origin
USA
Weight
0.46 kg
Dimensions
27.8 x 21.4 x 2.8 cm
Operating Temp
Standard Industrial Range
Power Consumption
System Dependent
Module Type
Inverter Control Board
Industrial Control System Integration
The Allen Bradley 80190-378-52 utilizes backplane bus communication protocols designed for integration with PLC-5 control architectures. The module supports deterministic network timing, ensuring low-latency state feedback and synchronization within complex I/O density configurations. Compatibility with field-programmable firmware allows for flash updates to align with evolving backplane bus communication velocity requirements, maintaining bus traffic integrity and reducing collision potential in high-speed control loops.
Frequently Asked Questions
Q: What are the restrictions regarding the installation of the 80190-378-52 in an active PLC-5 backplane?A: Ensure that backplane power is cycled off before module insertion or removal to prevent electrical arcing on connector pins. The module must be firmly seated in the chassis slot to maintain signal integrity across the backplane bus.Q: Is this module capable of firmware field-upgrades?A: Yes, the unit supports firmware flash compatibility via the primary control bus interface. Verify the current revision against the specific PLC-5 processor requirements before initiating any update sequence.
Field Installation Guidelines
Mount the control board into the designated PLC-5 chassis slot. Tighten the mounting screws to the specified torque to guarantee a secure electrical chassis ground connection.
Avoid exposing the component to electrostatic discharge (ESD). Utilize a grounded wrist strap at all times when handling the board.
Ensure all backplane pins are clean and free of debris or oxidation prior to installation.
Maintain ambient operating temperature within the specified industrial limits to prevent thermal degradation of on-board components.
Verify that the backplane power supply capacity is sufficient for the total I/O density load when the module is fully initialized.
Configured for signal interfacing and communication management in PLC-based automation systems, the Allen Bradley 80190-440-03-R (80190-440-03-R Interface Board) provides direct physical and electrical execution for motor control coordination.
Hardware Specifications
Parameter
Specification
Model
80190-440-03-R
Brand
Allen Bradley
Origin
USA
Weight
0.46 kg
Dimensions
27.8 x 21.4 x 2.8 cm
Operating Temp
Standard industrial range
Power Consumption
System dependent
Module Type
Interface Board
Control System Integration Characteristics
The Allen Bradley 80190-440-03-R is engineered to facilitate deterministic data exchange within control architectures. It supports robust backplane bus communication, ensuring signal integrity for soft-start and drive-control peripherals. The module's circuitry is optimized for I/O density scaling, allowing for consistent signal propagation across complex, multi-node network topologies. Firmware compatibility ensures this hardware remains responsive to system-level configuration changes, maintaining timing precision required for synchronized motor start-up and protection sequences.
Frequently Asked Questions
Q: What precautions should be taken during the physical installation of this interface board to prevent signal interference?A: Ensure that the board is securely mounted to the chassis to maintain a continuous electrical ground. When terminating control cables, utilize shielded twisted-pair cabling and ensure shields are terminated at a single point to minimize electromagnetic interference (EMI) impact on data signals.Q: Does the 80190-440-03-R require specific backplane initialization procedures?A: Before energizing the backplane, verify that the module is fully seated and that all terminal connections are tight. Upon system power-up, ensure the host processor acknowledges the module presence on the bus to confirm correct address assignment and communication link establishment.
Field Installation Guidelines
Verify that all power sources to the chassis are disconnected before module installation or removal.
Use appropriate ESD protection, including a grounded wrist strap, when handling the board to prevent damage to sensitive CMOS components.
Inspect the connector pins for any signs of oxidation or physical damage prior to inserting the board into the backplane slot.
Ensure adequate ventilation around the chassis to maintain ambient temperatures within the hardware rating.
Once installed, perform a point-to-point signal verification to ensure that the interface board correctly maps control signals between the soft-start controller and the host system.
Configured for precise power management and electrical protection within industrial control architectures, the Allen-Bradley 018-001770 (018-001770 Power Limit Control Board) provides direct physical monitoring and regulation of power thresholds for PLC-based systems.
Hardware Specifications
Parameter
Specification
Model
018-001770
Brand
Allen-Bradley
Origin
USA
Weight
0.9 kg
Dimensions
3.5 cm x 13 cm x 14.5 cm
Operating Temp
Standard industrial range
Power Consumption
Not specified
Primary Function
Power limit regulation
Industrial Control System Connectivity
The 018-001770 integrates seamlessly into industrial control platforms, which utilize backplane bus communication velocity protocols for real-time monitoring. This module architecture facilitates I/O density scaling within the control cabinet, allowing the system to coordinate power limiting across multiple feedback loops. Furthermore, the board supports firmware flash compatibility, which enables engineers to align board logic with system-wide operational requirements. Consequently, the hardware ensures deterministic response times during power threshold excursions.
Frequently Asked Questions (FAQ)
Q: Does this board support hot-swapping under load?A: No, the 018-001770 must be isolated from all power sources and control signals before extraction or insertion to prevent damage to the backplane interface or onboard circuitry.Q: How is the power limit threshold configured on this module?A: Threshold parameters are managed via the host PLC software configuration, which interacts with the board's internal logic to enforce established voltage or current limits.
Field Installation Guidelines
To begin with, ensure all power to the rack is strictly isolated before attempting to insert the module into the designated slot;Â consequently, this prevents potential electrical shorts.
Subsequently, seat the board firmly into the backplane connector until fully engaged;Â furthermore, secure the front-panel retaining screws to ensure structural stability against continuous industrial vibration.
In addition, when connecting signal wiring, verify that all shields are terminated at the designated ground rail to minimize electromagnetic interference;Â meanwhile, ensure all cable stress is relieved to prevent connector fatigue.
Following physical mounting, perform a thorough continuity check before applying power to the cabinet;Â by doing so, you verify that the board is correctly indexed within the system.
Finally, as a last step, confirm that the system software parameters match the hardware ID of the 018-001770 to enable accurate communication and data exchange on the bus.
