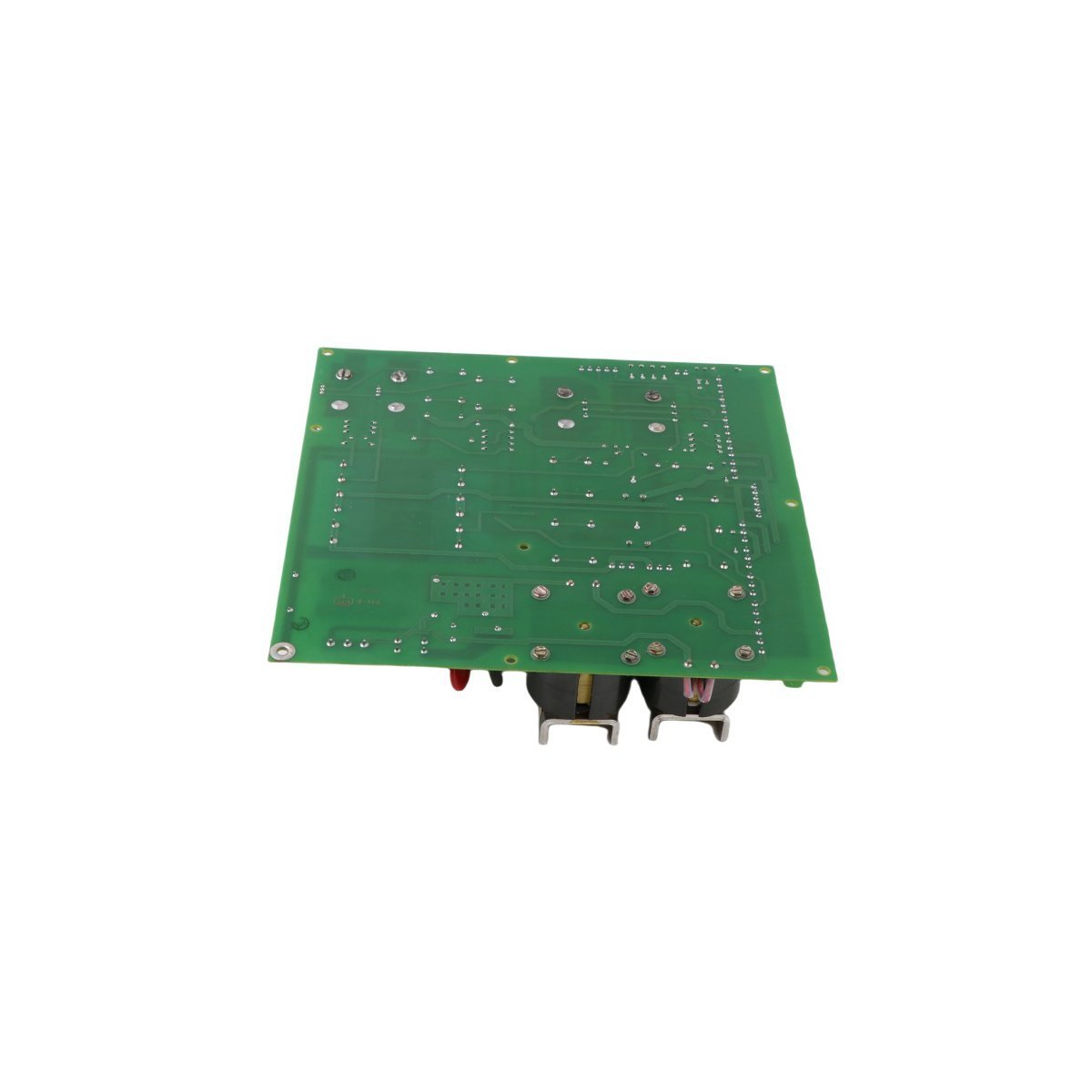

General electric DS200EXPSG1ACB Bulk Power Supply Board

The GE DS200EXPSG1ACB serves as a primary bulk power supply module for the Speedtronic Mark V turbine control series. This board provides regulated voltage to various control circuits within gas and steam turbine systems. It represents a refined hardware version featuring two major functional improvements and a single artwork revision. Consequently, the board delivers enhanced stability compared to earlier G1 base models. The unit integrates seamlessly into the EX2100 excitation framework to support demanding industrial automation tasks.

Core Technical Specifications

Hardware Architecture and Safety Components

This power board incorporates several critical hardware elements to ensure continuous operation. It features three dedicated fuses to protect the internal circuitry from overcurrent events. Additionally, a manual reset button allows operators to clear transient faults quickly. The PCB layout includes a dense array of high-capacity capacitors for voltage smoothing and noise reduction. Furthermore, the board contains multiple test points for direct circuit voltage measurements. These components together establish a reliable power foundation for sensitive turbine logic modules.

Operational Diagnostics and Indicators

The DS200EXPSG1ACB utilizes a simplified visual system for real-time status reporting. A single green LED remains lit when the module successfully completes its startup sequence. If this light remains dark, a diagnostic failure or power loss has likely occurred. Maintenance personnel can then use the integrated test points to isolate the specific failing circuit. Because the board handles high-voltage inputs, technicians must follow strict grounding protocols during testing. This diagnostic transparency significantly reduces the time required for field repairs.
