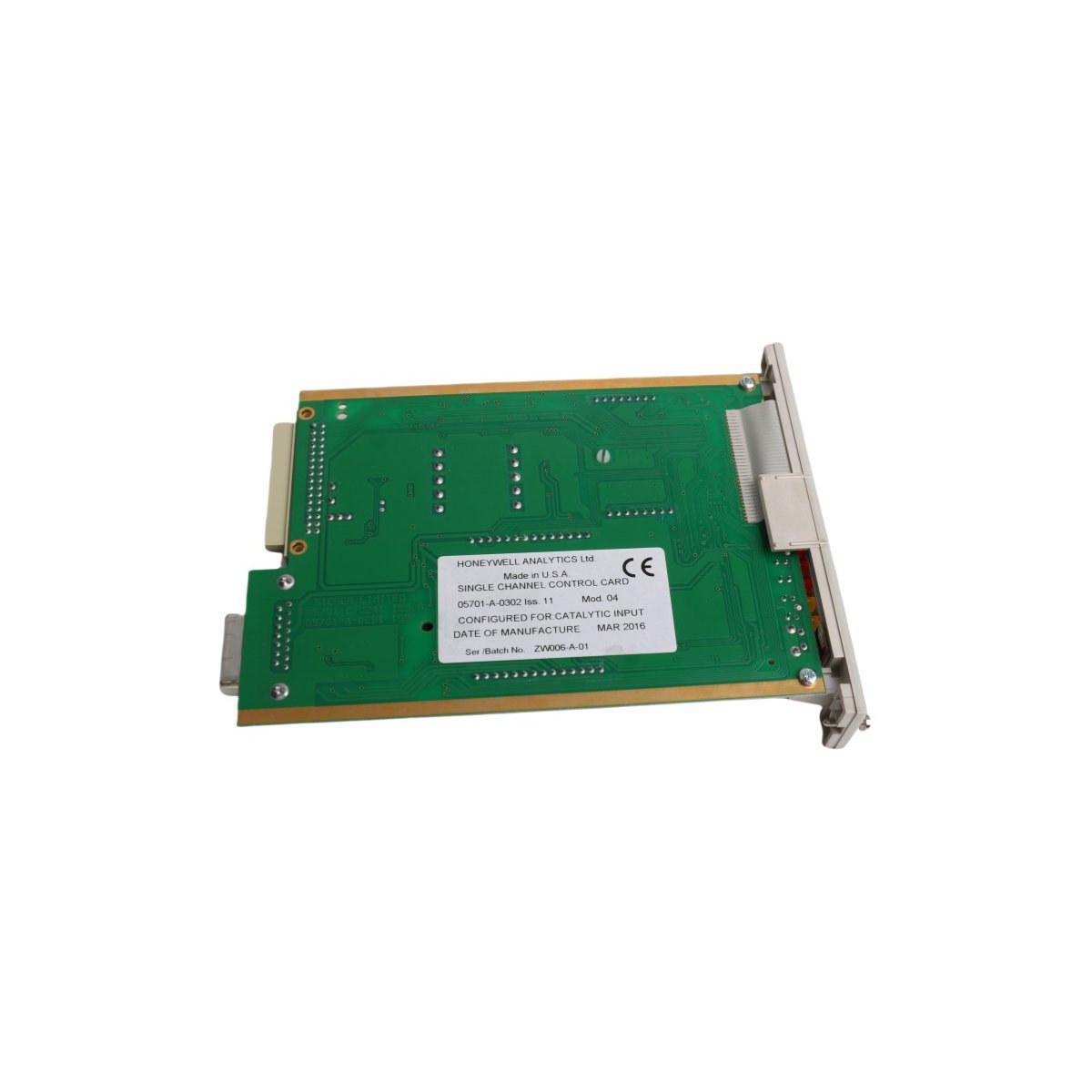

Honeywell 05701-A-0302 Single Channel Gas Control Card

Product Overview

The Honeywell 05701-A-0302 serves as a pivotal control component within the System 57 series, designed specifically for high-integrity gas detection and monitoring. As a Single Channel Control Card, this module processes signals from field-mounted gas detectors to provide real-time safety data. By integrating this card into a modular rack system, operators establish a centralized monitoring hub that safeguards personnel and infrastructure. Furthermore, the 05701-A-0302 provides the critical logic required to trigger alarms and executive actions, ensuring immediate response to hazardous atmospheric conditions.

Advanced Signal Processing and Control

To ensure maximum reliability, the 05701-A-0302 employs sophisticated signal conditioning hardware that handles both toxic and flammable gas inputs. Because the card features a high-resolution analog-to-digital interface, it translates field sensor data into precise concentration readings with minimal latency. Moreover, the unit incorporates user-programmable alarm levels, which allow for customized safety thresholds tailored to specific industrial environments. Consequently, this flexibility enables the module to manage a wide range of Honeywell Analytics sensors while maintaining strict signal integrity across the entire monitoring loop.

Technical Specifications

• Manufacturer: Honeywell / Honeywell Analytics
• Model Number: 05701-A-0302
• Module Type: Single Channel Control Card
• System Compatibility: Honeywell System 57 Series
• Physical Dimensions: 2.5 cm x 17 cm x 13 cm
• Net Weight: 0.18 kg
• Alarm Functions: Dual-level alarm thresholds with relay output capability
• Interface Display: Integrated LED indicators for alarm, fault, and power status
• Industrial Rating: Designed for DCS and safety-critical monitoring environments

Operational Durability and Integration

Honeywell manufactures the 05701-A-0302 using industrial-grade components that withstand the rigors of 24/7 operation. In addition to its robust electrical design, the card features a compact form factor that allows for high-density mounting in standard 19-inch racks. Since the module supports hot-swapping, maintenance teams can perform upgrades or replacements without de-energizing the entire safety system. Thus, the 05701-A-0302 minimizes downtime in critical facilities such as oil refineries, chemical plants, and manufacturing hubs. Finally, rigorous factory calibration ensures that each card meets international safety standards including ISO 9001, providing long-term stability and peace of mind for safety managers.
