SKU: 51304672-150

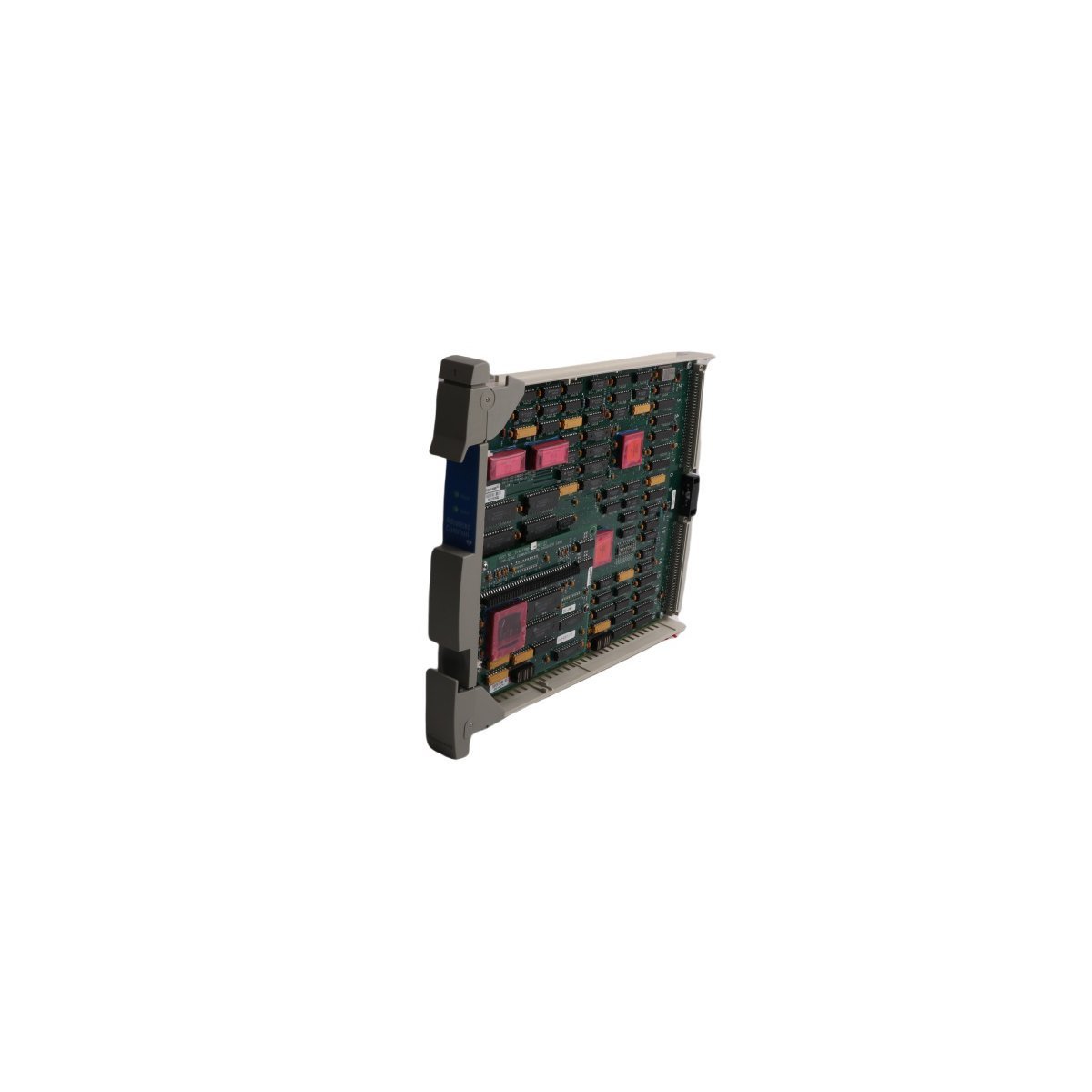

Honeywell 51304672-150 Analog Output Main Board TDC 3000 Series

The Honeywell 51304672-150 is a high-reliability Analog Output Main Board for the TDC 3000 DCS. It converts digital processor signals into precise analog currents to control valves and actuators across industrial processes. Featuring advanced diagnostics and electrical isolation, this 0.6 kg USA-made board ensures stable, long-term operation in critical oil, gas, and power generation environments.

Product Overview

The Honeywell 51304672-150 serves as the primary Analog Output Main Board for the legacy TDC 3000 Distributed Control System (DCS). This board acts as the critical command interface between the control system’s digital logic and the physical plant actuators. Specifically, it converts digital control signals from the processor into precise analog currents or voltages to modulate control valves, variable speed drives, and other modulating final control elements. Because it handles the “output” side of the control loop, the 51304672-150 remains vital for maintaining stable process variables and ensuring that the plant responds accurately to operator commands and automated logic.

Key Functional Features

High-Precision Signal Conversion: The board converts digital data into standardized analog signals (typically 4-20 mA). Consequently, it ensures that field devices receive exact instructions for position or speed control.
Multi-Channel Management: It manages several output channels simultaneously. In doing so, it allows a single board to control multiple control loops, which optimizes rack space and reduces hardware costs.
Built-in Loop Protection: Honeywell engineers this board with robust electrical isolation. As a result, it protects the central DCS electronics from field-side electrical surges or ground loops.
Advanced Diagnostics: The 51304672-150 continuously monitors the health of each output circuit. Therefore, it can detect open circuits or high-resistance faults in the field wiring and report them to the operator immediately.
Harsh Environment Durability: The board features industrial-grade components designed to resist temperature extremes and mechanical vibration. This ensures long-term reliability in demanding settings like refineries and chemical plants.
TDC 3000 Integration: The architecture ensures seamless communication with the Local Control Network (LCN). This allows for rapid data synchronization and minimizes signal latency during critical process changes.

Industrial Implementation

The 51304672-150 Analog Output Board plays a fundamental role in facilities that prioritize precision and uptime. For instance, oil and gas refineries utilize this board to regulate critical flow control valves in distillation columns. Similarly, pharmaceutical manufacturing plants rely on its precise output to manage temperature-sensitive batch reactions. Because the board supports the high-reliability requirements of the TDC 3000 series, it remains a preferred component for power generation facilities that must maintain constant frequency and voltage through automated turbine control.
