  4. Honeywell K2LCN-4 51401551-400 Ten-Slot Modules
Sale!
SKU: K2LCN-4 51401551-400

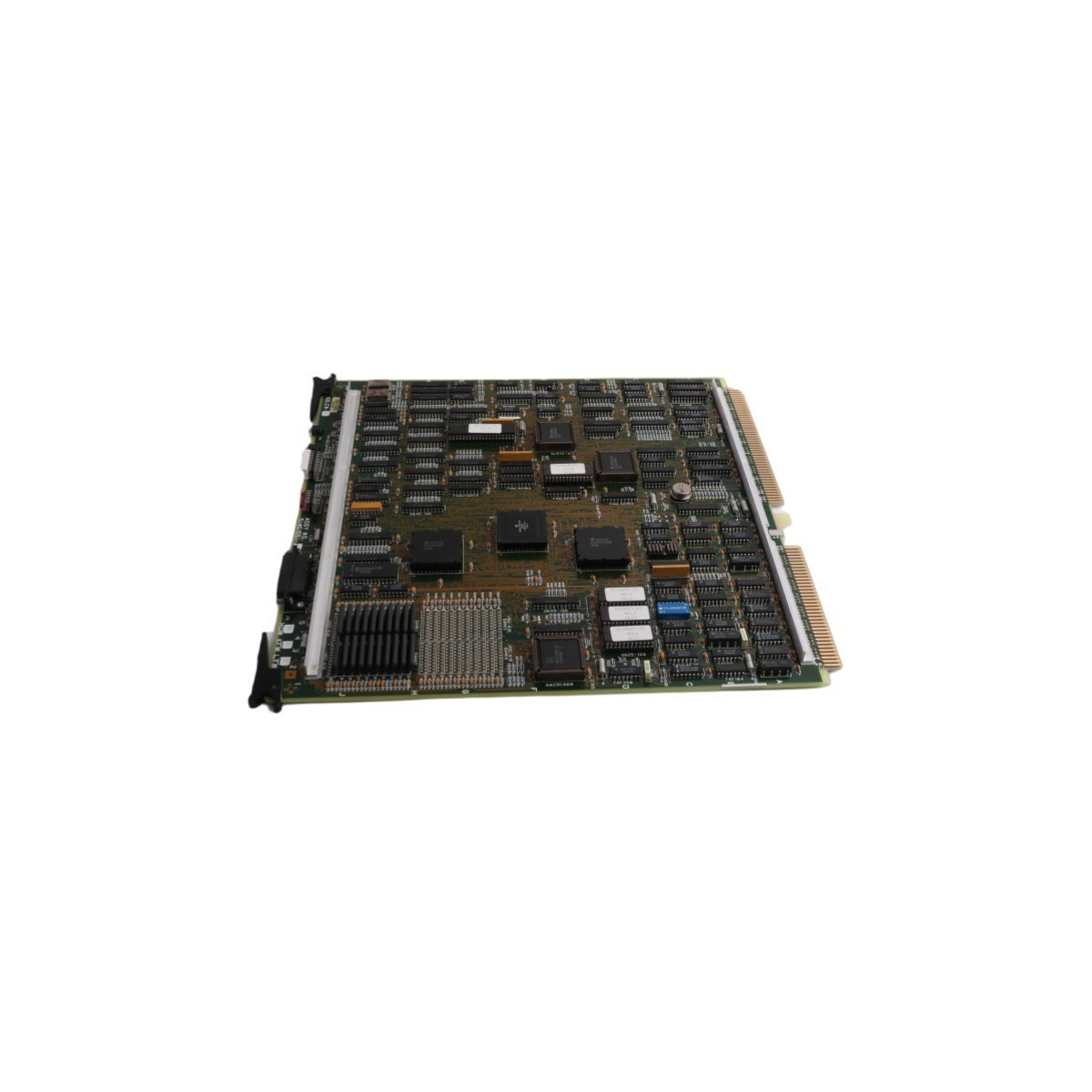

Honeywell K2LCN-4 51401551-400 Ten-Slot Modules

Request a Quote

The Honeywell K2LCN-4 51401551-400, also cataloged as the K2LCN-4 51401551-400 Ten-Slot Modules, operates as a dedicated hardware component for multi-slot chassis expansion and communication routing within TDC 3000 platforms.

Hardware Specifications

ParameterSpecification
ModelK2LCN-4 51401551-400
BrandHoneywell
OriginUSA
Weight0.96 kg
Dimensions36.2 x 36.6 x 1.5 cm
Operating Temp-20 deg C to 70 deg C
Power Consumption24 VDC nominal
Module TypeTen-Slot Modules
Range of ProductTDC 3000
SystemDCS
Communication ServiceEthernet router
StatusActive

Process Control and Signal Isolation Architecture

The module manages loop-level data transmissions utilizing 4-20 mA HART loop protocol frameworks to maintain high signal fidelity across distributed automation nodes. Dedicated channel-to-channel isolation prevents ground loops and eliminates electromagnetic interference within complex industrial enclosures. Additionally, built-in cold junction compensation (CJC) maintains thermocouple accuracy, while integrated network architecture ensures deterministic execution and reliable packet routing.

Frequently Asked Questions

Q: What precautions should be taken regarding backplane current consumption when populating multiple slots with the K2LCN-4 51401551-400?

A: System engineers must verify that the total cumulative current draw across the ten slots does not exceed the maximum power supply rating allocated for the node chassis.

Q: Can expansion modules be inserted into the K2LCN-4 51401551-400 backplane while the system is energized?

A: Live insertion is restricted unless specific hot-swap protocols and redundancy safeguards are active to prevent voltage spikes or control loop disruption.

Field Installation Guidelines

  • Secure the hardware module firmly within the specified chassis slot, ensuring proper pin alignment to prevent backplane damage.
  • Route all communication and signal cabling away from high-voltage power lines to minimize electrical noise coupling.
  • Ensure proper system grounding by connecting all chassis earth terminals to the central control room grounding bus.
