  4. HONEYWELL 51304540-200 Paddle Board
Sale!
SKU: 51304540-200

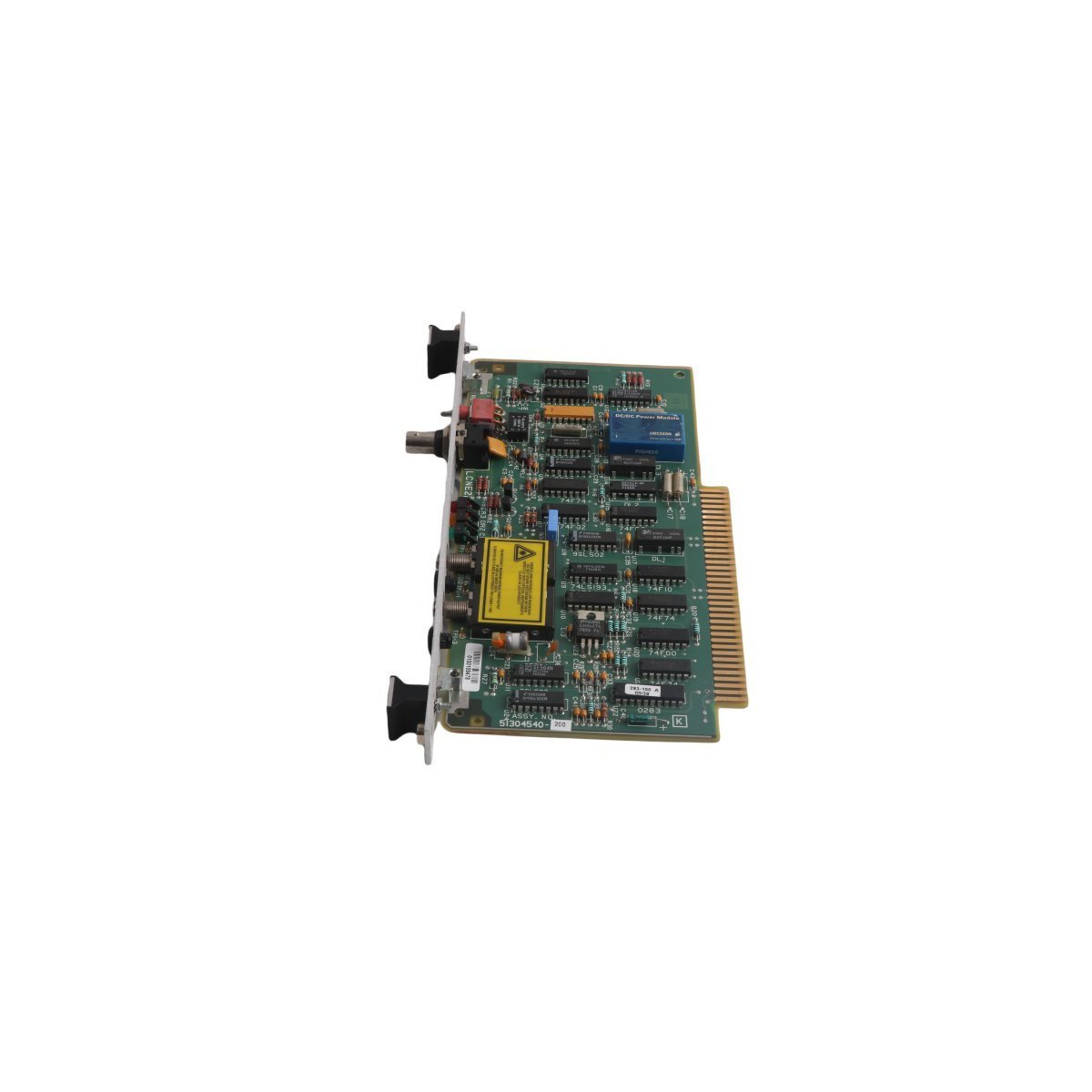

HONEYWELL 51304540-200 Paddle Board

Request a Quote

Configured for optical signal routing in TDC 3000 systems, the HONEYWELL 51304540-200 (51304540-200 Paddle Board) provides direct physical signal transition execution within the Universal Control Network architecture.

Hardware Specifications

ParameterSpecification
Model51304540-200
BrandHONEYWELL
OriginUSA
Weight0.24 kg
Dimensions2 cm x 13.5 cm x 23.8 cm
Operating TempStandard Industrial Range
Power ConsumptionSystem Backplane Dependent
Module TypePaddle Board
System CompatibilityTDC 3000 DCS

Process Control and DCS Connectivity

The 51304540-200 functions as an interface layer within the TDC 3000 infrastructure, facilitating data exchange between UCN nodes. It supports standard electrical and optical signal routing, ensuring integrity for process loops. The module provides physical channel-to-channel signal paths, reducing latency in communication cycles. It maintains signal consistency across the DCS backplane, minimizing attenuation in distributed I/O network topologies.

Field Installation Guidelines

  • First, the control cabinet power supply must be verified for stability, and the connection between the grounding bus bar and the rack chassis must be confirmed prior to module insertion.
  • Subsequently, the board must be aligned with the designated TDC 3000 slot guide rails so that pin misalignment and backplane connector damage are avoided.
  • Once this alignment is achieved, the module must be secured firmly by the integrated mechanical retention tabs.
  • Furthermore, all signal cabling must be routed away from high-voltage AC lines so that electromagnetic interference is mitigated; additionally, dedicated wire ducts must be utilized for all DCS signal conductors.
  • Finally, signal continuity at the termination points must be checked after installation so that a valid physical link to the UCN is confirmed.

Frequently Asked Questions

  • Q: What is the primary function of the 51304540-200 in a TDC 3000 loop? A: It is utilized as a physical layer paddle board for the routing of signals within the Universal Control Network (UCN), and the required electrical interface between field bus components and the controller backplane is provided by this module.

  • Q: Is hot-swapping supported by this module in an active DCS rack? A: Physical replacement should be performed in accordance with TDC 3000 cabinet maintenance protocols, and the local segment of the UCN must be isolated or bypassed so that control disruption is prevented.

Tags: ,
