Honeywell 51305072-300 CLCN-B I/O Module
The Honeywell 51305072-300 CLCN-B is an I/O card designed for TDC 3000 systems. This module provides reliable signal processing for legacy industrial automation environments.
You are here:
Sale!
SKU: C300 51303940-250

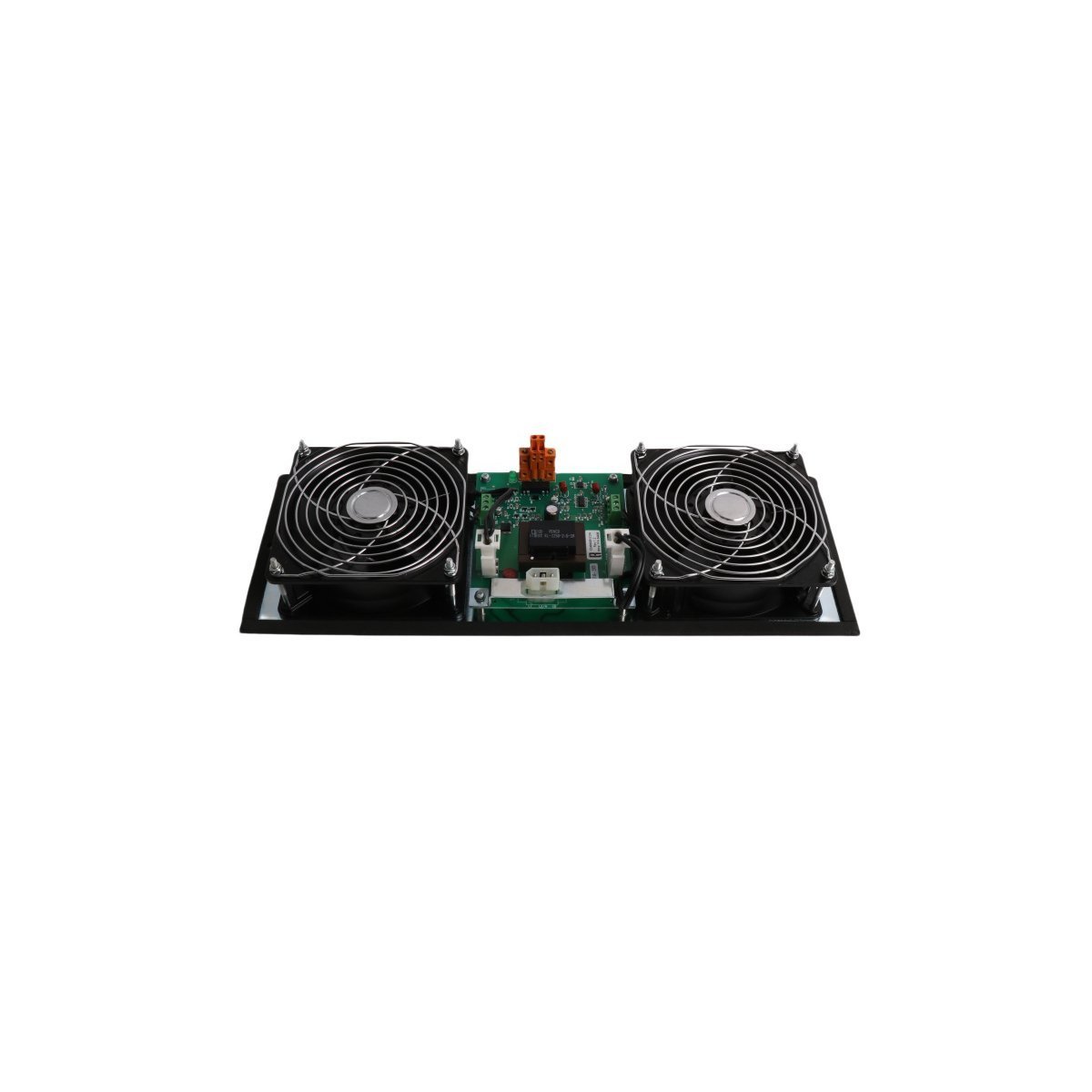

Honeywell 51303940-250 TDC 3000 Series Cabinet Fan With Alarm
Honeywell 51303940-250 cooling fan assembly with integrated alarm for TDC 3000 cabinets. Brand New, Original Stock, Global Shipping. Full specifications detailed.
The Honeywell 51303940-250 serves as the primary 51303940-250 Cabinet Fan With Alarm utilized to execute forced-air thermal management across TDC 3000 Series platforms. Configured for heat dissipation in DCS cabinets, the assembly executes continuous airflow circulation and telemetry verification of fan rotation states. The internal monitoring circuitry interfaces with the cabinet supervisory loop to provide direct hardware indication of mechanical deceleration or electrical stall conditions.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51303940-250 |
| Brand | Honeywell |
| Origin | USA |
| Weight | 1.88 kg |
| Dimensions | 39 x 14.2 x 5.5 cm |
| Operating Temp | 0 to +60 deg C |
| Power Consumption | Driven via standard cabinet AC/DC distribution links |
| Module Type | Cabinet Fan With Alarm |
| System | TDC 3000 Series / DCS |
| Alarm Interface | Dry contact / Integrated internal sensor relay |
Process Control & Channel-to-Channel Isolation
The Honeywell 51303940-250 integrates dual mechanical air-movers paired with an independent fault detection board. To ensure that inductive voltage spikes from the fan motors do not disrupt internal processor buses, the integration layout incorporates channel-to-channel isolation parameters on the alarm line. This protection topology handles 4-20 mA HART loop protocol routing and generic diagnostic reporting without grounding fault crossover, maintaining critical isolation thresholds across adjacent cabinet monitor points.
Frequently Asked Questions
Q: Can the fan assembly be replaced while the TDC 3000 system is online?
A: Yes. The cabinet fan assembly can be extracted and replaced while the DCS is online, provided that alternative cooling measures are maintained or the ambient cleanroom temperature remains low enough to prevent thermal trip limits during the replacement interval.
Q: How does the integrated alarm system communicate an electrical or mechanical failure?
A: The module relies on an internal rotation sensor connected to an isolated relay interface. A drop in fan velocity closes or opens a dedicated contact terminal, triggering an immediate supervisory diagnostic alert across the system node.
Q: What input power configurations are compatible with this fan assembly model?
A: This component relies on standard factory-configured power distribution voltages specified by the TDC 3000 cabinet wiring blueprint. Check the internal module stamp prior to line connection.
Field Installation Guidelines
- Airflow Orientation Validation: Verify the physical direction vectors stamped on the fan casing prior to mounting. Reverse installation will impede cabinet thermal convection paths and cause localized heat accumulation.
- Chassis Ground Grounding: Secure the dedicated grounding strap from the fan housing bracket directly to the copper master ground bus of the DCS cabinet frame to prevent electromagnetic emission leakage.
- Wiring Harness Strain Relief: Route the power supply and alarm monitoring cables through designated nylon wire ties. Ensure cables do not contact the rotating fan blades or block the intake grilles.
