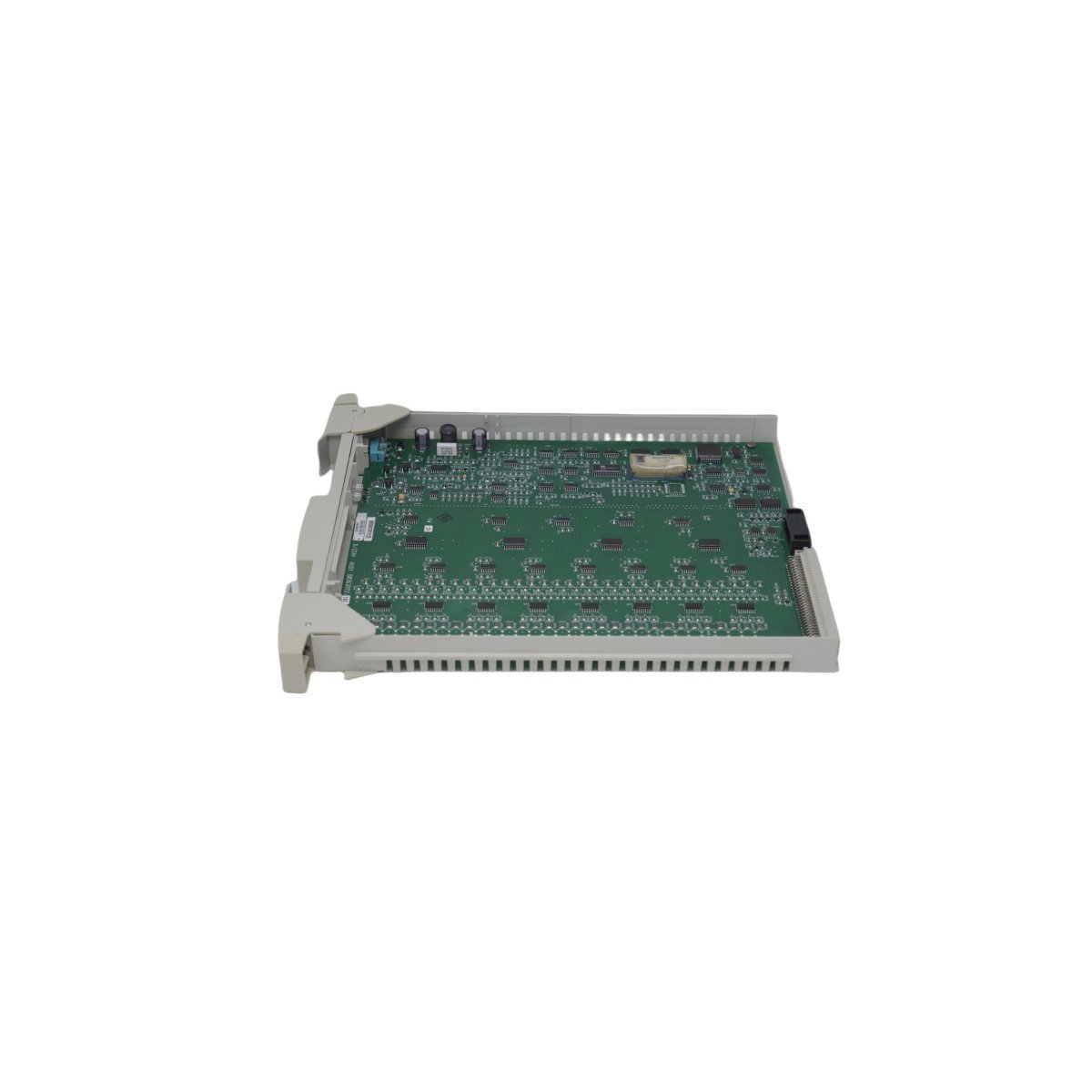

Honeywell MC-PDIY22 80363972-100 Digital Input Processor Module

The Honeywell MC-PDIY22 80363972-100 is a professional Digital Input Processor for the TDC 3000 DCS. It provides high-density discrete signal monitoring, integrated diagnostics, and robust electrical isolation for critical industrial automation environments.

Product Overview

The Honeywell MC-PDIY22, identified by part number 80363972-100, is a high-performance Digital Input Processor Module designed for the TDC 3000 Distributed Control System (DCS) environment. This module serves as a critical interface between field-level discrete devices and the centralized control architecture. By converting binary signals from the field into actionable data for the controller, the MC-PDIY22 enables precise monitoring of equipment states, such as valve positions, motor statuses, and pressure switch activations.

Technical Specifications

Manufacturer: Honeywell
Model Number: MC-PDIY22
Part Number: 80363972-100
Product Series: TDC 3000 / Process Manager
Module Type: Digital Input Processor
System Compatibility: Distributed Control System (DCS)
Weight: 0.58 kg
Dimensions: 3.0 cm x 31.8 cm x 28.0 cm
Country of Origin: USA
Certification: CE Compliant / Industrial Grade

Core Functionality and Applications

The primary function of the 80363972-100 involves the acquisition and processing of discrete signals. It monitors field contacts to detect “On/Off” or “Open/Closed” states with high temporal accuracy. Because industrial processes require instantaneous feedback, this module utilizes high-speed scanning to ensure the DCS responds to field changes in real-time. Engineers typically deploy this module in heavy industrial sectors including:

Petrochemical Refineries: Monitoring safety interlocks and limit switches.
Power Generation: Tracking circuit breaker statuses and turbine auxiliary signals.
Chemical Processing: Supervising batch sequence steps and vessel level switches.

Key Technical Characteristics

High-Density Channel Configuration: The module supports multiple input channels within a single slot, which effectively optimizes cabinet space and reduces the overall hardware footprint.
Advanced Signal Isolation: To protect the sensitive DCS backplane, the MC-PDIY22 provides robust electrical isolation for each input, preventing field-side voltage surges from damaging the system.
On-Board Diagnostics: The processor continuously performs self-check routines to identify hardware faults or signal discrepancies. These diagnostics report directly to the operator station to facilitate rapid troubleshooting.
Noise Filtering: Built-in digital filtering logic eliminates signal “chatter” and electromagnetic interference (EMI), ensuring that only valid state changes trigger a control response.
Hot-Swappable Capability: Designed for high-availability environments, this module supports maintenance procedures that minimize process interruption during hardware replacement.
