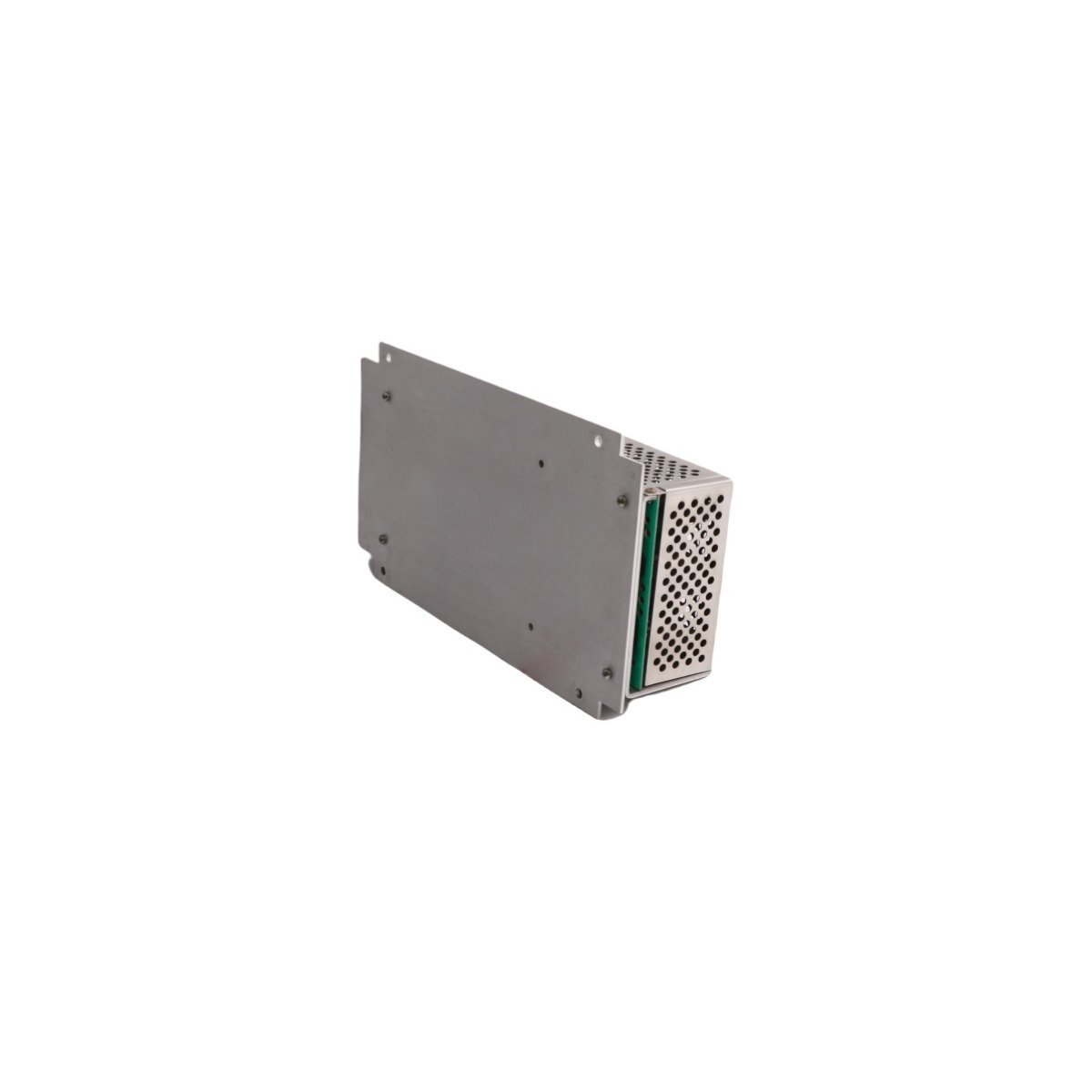

Honeywell TDC 3000 IP-PI-OI24 Advanced Process Control Module

The Honeywell IP-PI-OI24 is a brand-new Advanced Process Control Module for the TDC 3000 DCS series. Featuring integrated Ethernet routing and Modbus RTU support, this 2.8kg industrial unit provides high-accuracy digital signal processing and robust environmental protection for complex automation environments.

Request a Quote

Product Overview

The Honeywell IP-PI-OI24 serves as a high-performance Advanced Process Control (APC) interface designed specifically for the TDC 3000 Distributed Control System (DCS). This module facilitates complex automation tasks by providing a bridge between field-level data and high-level control strategies. It functions primarily as a robust communication and processing node, ensuring that dynamic industrial variables are managed with high precision and minimal latency. By leveraging its Ethernet routing capabilities and Modbus RTU support, the IP-PI-OI24 enables seamless data transparency across the entire plant network.

Technical Specifications

  • Manufacturer: Honeywell
  • Model Designation: IP-PI-OI24
  • Product Series: TDC 3000 DCS
  • Module Function: Advanced Process Control / Digital I/O Processing
  • Communication Interface: Integrated Ethernet Router and Modbus RTU
  • Input/Output Configuration: Optimized for high-density digital signal management
  • Physical Dimensions: 17.4 cm x 7.2 cm x 30.5 cm
  • Net Weight: 2.8 kg
  • Origin: United States

Core Functional Characteristics

The module utilizes a modular architecture to allow for straightforward integration into existing TDC 3000 frameworks. Because it supports standard industrial protocols, engineers can implement real-time monitoring and control without extensive hardware reconfigurations. Furthermore, the unit features hardened circuitry designed to mitigate the risks of overcurrent and short-circuiting, which significantly enhances the overall safety profile of the control loop.

To ensure performance in demanding settings, the hardware is constructed from industrial-grade materials. This design allows the module to maintain thermal stability and signal integrity even when exposed to fluctuating temperatures or particulate-heavy environments common in chemical processing and power generation.

Primary Applications

  • DCS Network Expansion: Enhances the processing power and communication reach of Honeywell TDC 3000 systems.
  • Refinery and Chemical Processing: Manages complex PID loops and digital logic in hazardous industrial areas.
  • Data Aggregation: Acts as an Ethernet gateway for field devices to communicate with centralized control rooms.
  • Legacy System Upgrades: Provides a reliable path for maintaining or expanding established automation infrastructures with brand-new hardware.
