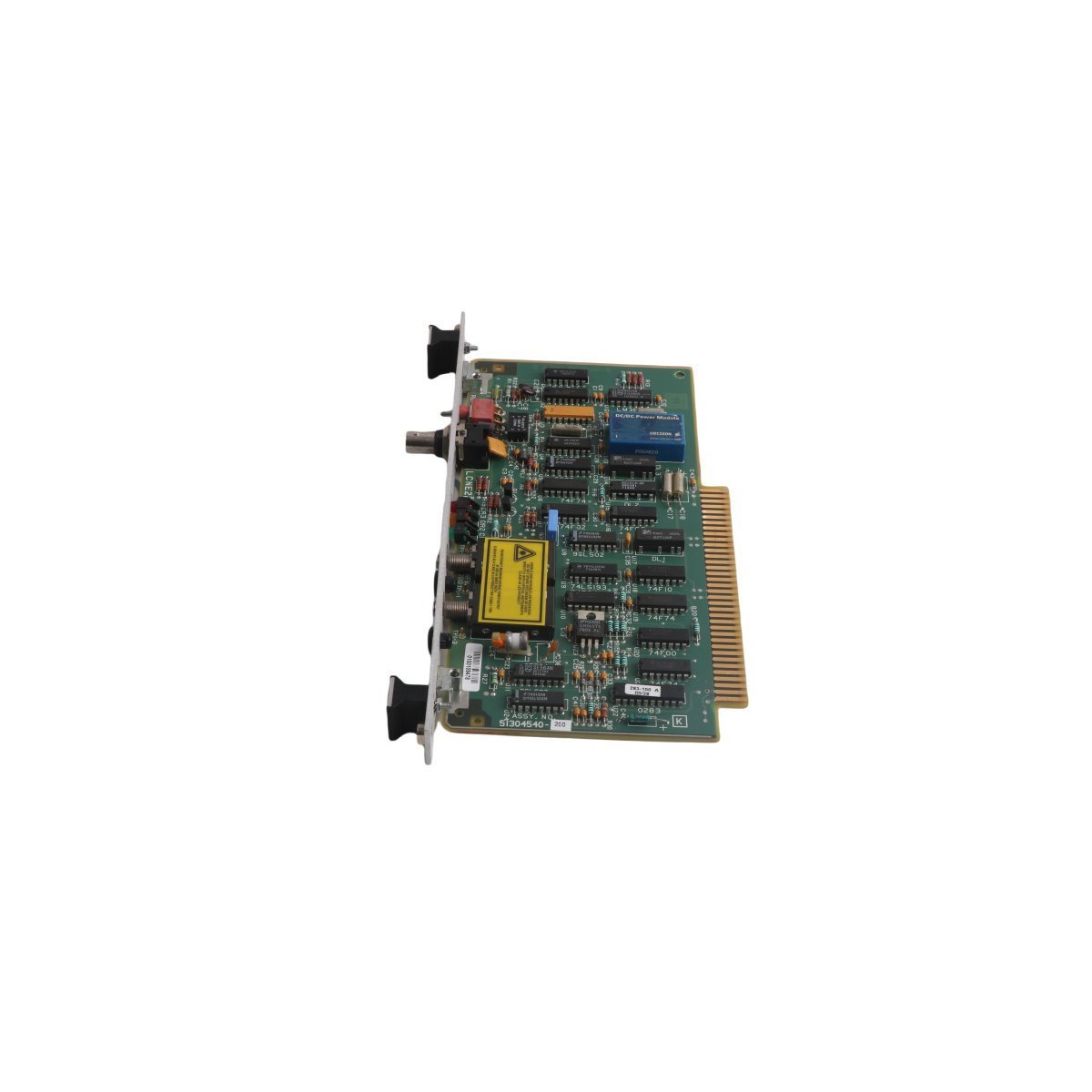

Honeywell 51304540-100 TDC 3000 Safety Manager Module

Request a Quote

Configured for high-speed signal transmission and process data routing within TDC 3000 DCS platforms, the Honeywell 51304540-100 (51304540-100 Safety Manager Module) provides direct physical electrical execution for data acquisition and control command distribution.

Hardware Specifications

ParameterSpecification
Model51304540-100
BrandHoneywell
OriginUSA
Weight0.24 kg
Dimensions2 x 13.5 x 23.8 cm
Operating TempIndustrial standard
Power ConsumptionSystem-bus dependent
Module TypeSafety Manager Module

Process Control & Signal Characteristics

  • The 51304540-100 module operates as a primary interface within the Universal Control Network (UCN), where it manages data conversion and transmission via optical or electrical mediums.

  • The module utilizes channel-to-channel isolation to maintain signal integrity, which effectively prevents the propagation of ground loops or common-mode noise across the control network.

  • The architecture incorporates advanced conditioning logic to support real-time data throughput and ensures deterministic communication latency.

  • Furthermore, the module facilitates cold junction compensation (CJC) for integrated thermocouple inputs and maintains measurement accuracy across varying ambient thermal conditions in the cabinet.

Frequently Asked Questions (FAQ)

Q: Can this module be hot-swapped while the TDC 3000 rack is powered?

A: The 51304540-100 is designed for operation in powered racks; however, users should consult the specific revision of the system installation manual to confirm firmware-level support for hot-insertion in the current cabinet configuration.

Q: What are the primary grounding requirements for this module’s interface?

A: High-frequency signal shields must be terminated directly to the cabinet ground bus via a low-impedance path to ensure maximum noise immunity and protection against transient surges.

Q: How is synchronization maintained during redundant module operations?

A: Synchronization is managed by the backplane bus interface, which handles heartbeat signaling and state-machine alignment between the primary and secondary modules to ensure transparent failover.

Field Installation Guidelines

  • First, verify that the module keying is correctly aligned with the I/O carrier rails to prevent potential pin damage during insertion.
  • Subsequently, confirm the backplane power is at a zero-energy state prior to module seating to prevent electrical arcing on the edge connectors.
  • Meanwhile, tighten the captive faceplate fasteners to the specified torque to ensure proper chassis ground contact and mechanical stability.
  • Furthermore, ensure all optical or electrical cabling is routed through designated cable management ducts to minimize mechanical strain on the module ports.
  • Finally, perform a cold-start diagnostic sequence via the local control station to verify successful node communication and database integration.
