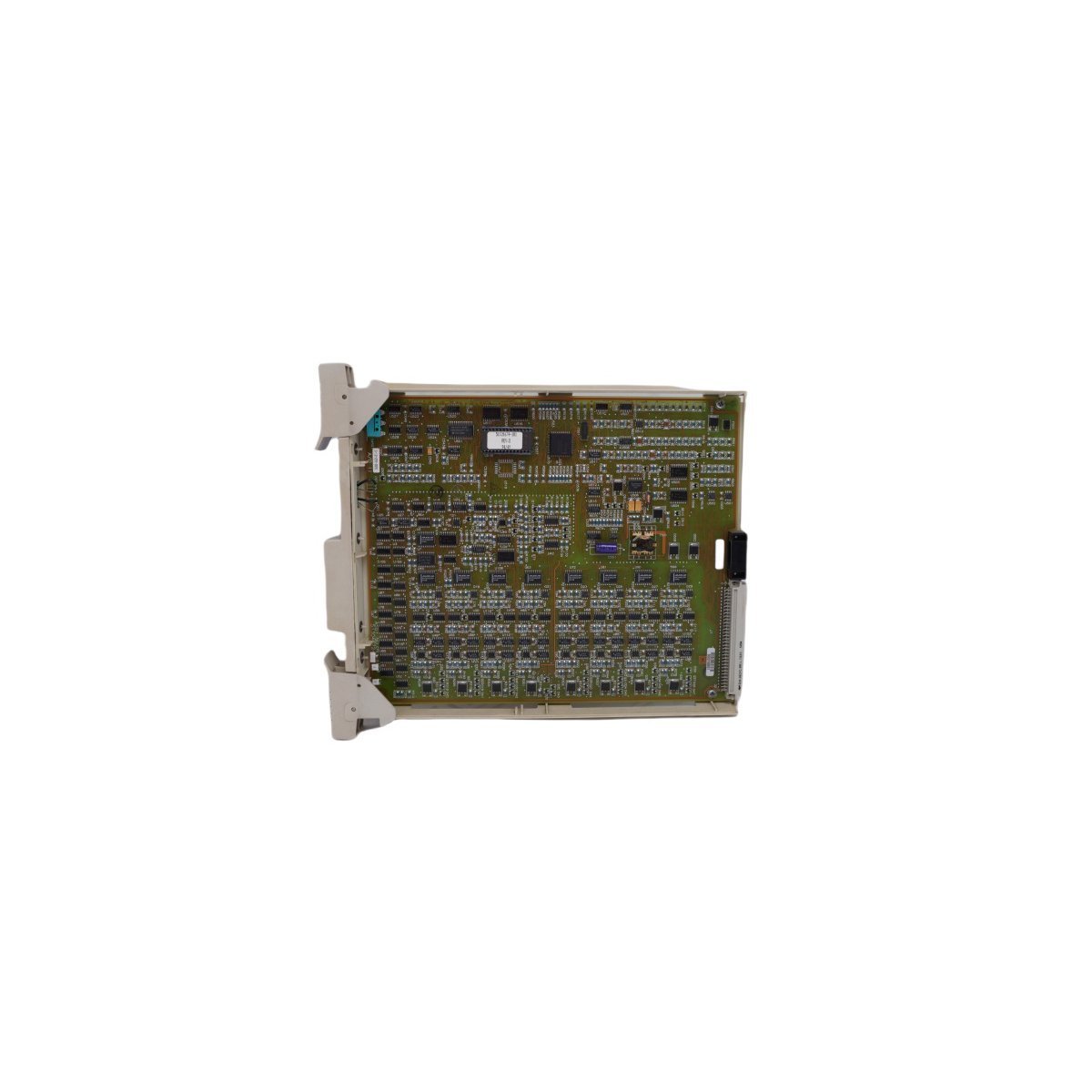

Honeywell 51304672-150 EPDGP Board for TDC 3000

The Honeywell 51304672-150 is an EPDGP board for the TDC 3000 DCS, providing robust processing for regulatory control and process data management in industrial automation.

Request a Quote

Product Overview

The Honeywell 51304672-150 functions as a high-performance Enhanced Process Data General Purpose (EPDGP) board, specifically engineered for the TDC 3000 Distributed Control System (DCS). This module serves as a computational engine, facilitating the execution of complex regulatory control, sequential logic, and process data management. Because it supports critical operational loops in demanding industrial environments, the EPDGP board ensures high availability and precise process variable handling. Honeywell designed this hardware to bridge real-time field data with control architecture, thereby optimizing system-wide efficiency in energy, petrochemical, and manufacturing facilities.

Technical Specifications

  • Model Number: 51304672-150
  • Component Type: EPDGP Board
  • Manufacturer: Honeywell
  • System Platform: TDC 3000
  • Physical Dimensions: 2.9 cm x 31.9 cm x 27.8 cm
  • Unit Weight: 0.6 kg
  • HS Code: 8537101190
  • Origin: USA
  • Operational Status: Active

Functional Characteristics and Integration

The EPDGP board streamlines complex process management by executing intricate control strategies locally within the TDC 3000 network. Because the board natively supports the Universal Control Network (UCN) protocol, it enables instantaneous data exchange between field sensors and centralized monitoring stations. Furthermore, the architecture incorporates advanced redundancy features; consequently, the system maintains operational continuity even if a primary processor component encounters an internal fault.

Engineers regularly utilize this board to regulate critical variables such as pressure, temperature, and flow, which stabilizes industrial operations. Additionally, the robust construction provides high resistance to harsh thermal conditions and electromagnetic interference; as a result, maintenance requirements decrease significantly over the component’s service life. Moreover, by integrating the 51304672-150 into the control rack, facilities effectively enhance their ability to respond to dynamic process fluctuations. Ultimately, this hardware upgrade empowers operators to manage production cycles with heightened speed and improved accuracy.
