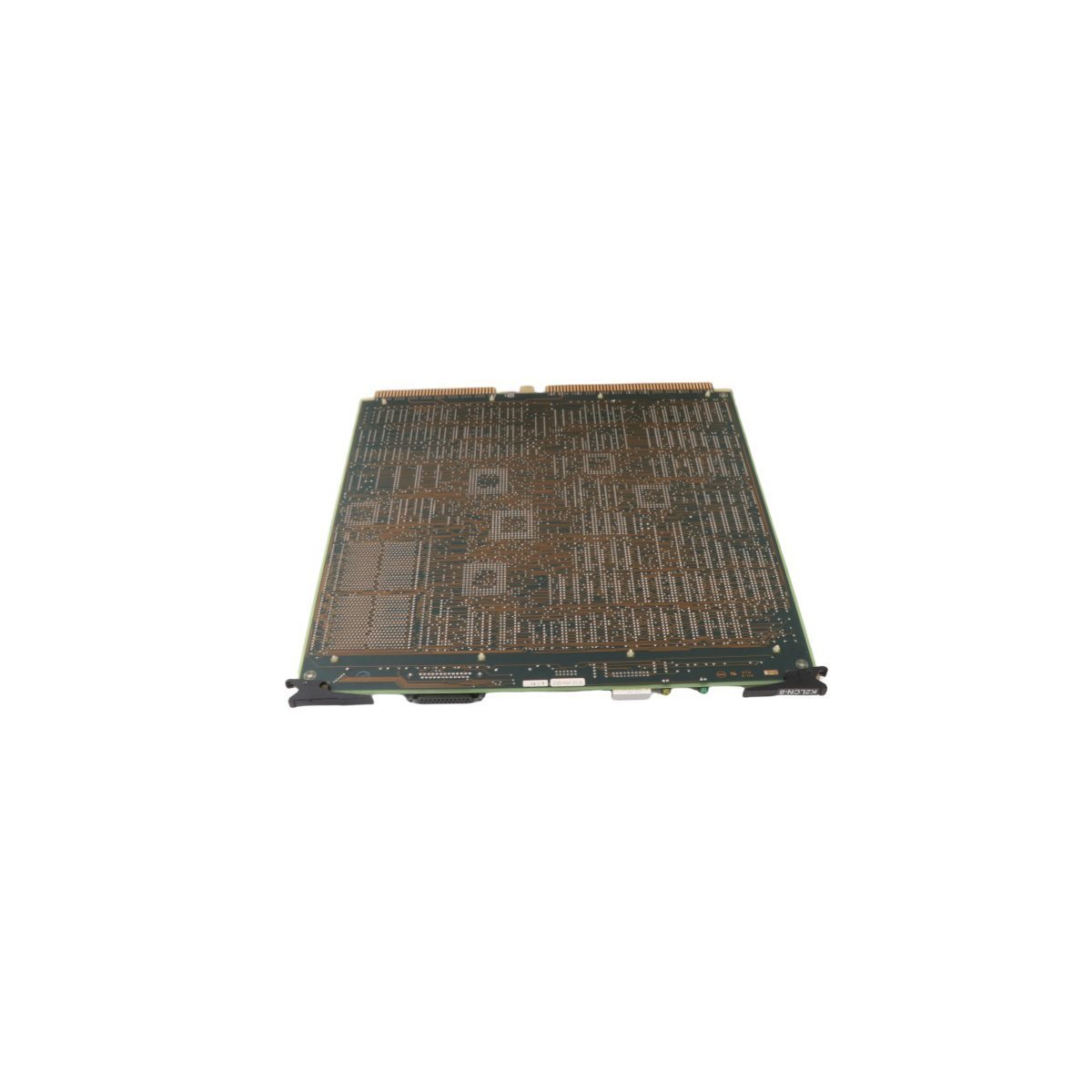

Honeywell K2LCN-8 51401551-801 Local Control Network Module

Request a Quote

The Honeywell K2LCN-8 51401551-801, also cataloged as the K2LCN-8 51401551-801 Local Control Network Module, operates as a dedicated hardware component for local control network routing and distributed communications within TDC 3000 platforms.

Hardware Specifications

ParameterSpecification
ModelK2LCN-8 51401551-801
BrandHoneywell
OriginUSA
Weight1 kg
Dimensions36.6 x 36.3 x 2 cm
Operating Temp-20 deg C to 70 deg C
Power Consumption24 VDC nominal
Module TypeLocal Control Network Module
Range of ProductTDC 3000
SystemDCS
Communication ServiceEthernet router
StatusActive

Process Control and Signal Isolation Architecture

The module manages loop-level data transmissions utilizing 4-20 mA HART loop protocol frameworks to maintain high signal fidelity across distributed automation nodes. Dedicated channel-to-channel isolation prevents ground loops and eliminates electromagnetic interference within complex industrial enclosures. Additionally, built-in cold junction compensation (CJC) maintains thermocouple accuracy, while integrated network architecture ensures deterministic execution and reliable packet routing.

Frequently Asked Questions

Q: What precautions should be taken regarding backplane current consumption when installing multiple K2LCN-8 51401551-801 modules?

A: System engineers must verify that the total cumulative current draw on the node power supply does not exceed the maximum specified wattage and amperage output limits of the chassis backplane.

Q: Can the K2LCN-8 51401551-801 module be hot-swapped while the system is powered on?

A: Hot-swapping is restricted unless specific redundancy switchover procedures and fail-safe states are active to prevent interruption of real-time control loops.

Field Installation Guidelines

  • Secure the hardware module firmly within the specified chassis slot, ensuring proper pin alignment to prevent backplane damage.
  • Route all communication and signal cabling away from high-voltage power lines to minimize electrical noise coupling.
  • Ensure proper system grounding by connecting all chassis earth terminals to the central control room grounding bus.
