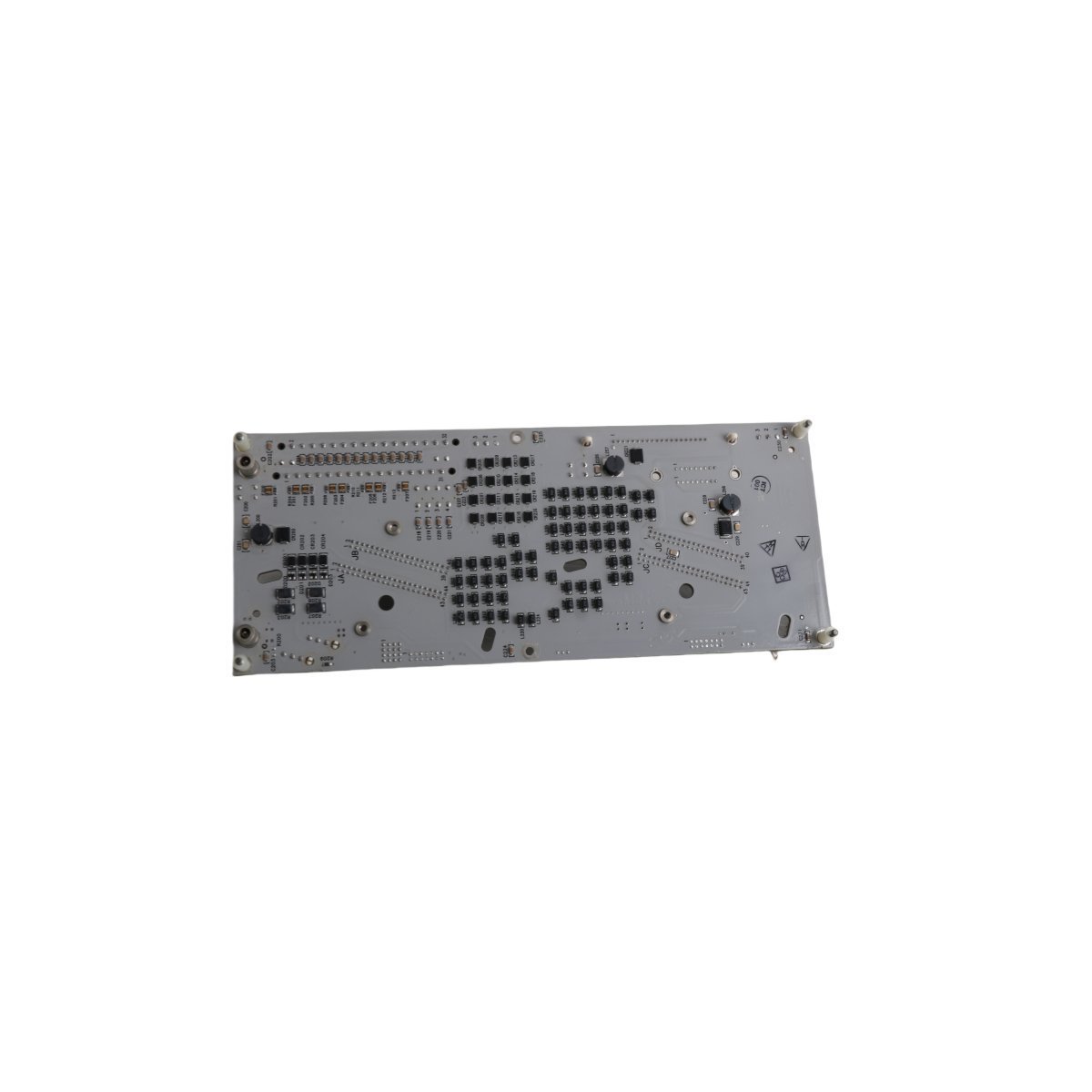

Honeywell CC-TAIX11 51308365-175 Analog Input IOTA Redundant

The Honeywell CC-TAIX11 51308365-175 serves as a core termination component within the Experion PKS Series C architecture. This Input Output Termination Assembly (IOTA) supports redundant Analog Input modules to ensure continuous process availability. It provides the physical interface for field wiring and provides signal conditioning for sensitive control loops. Consequently, this module eliminates single points of failure in critical industrial environments.

Technical Specifications

Engineering Features and Functionality

Reliability defines the design of the CC-TAIX11 assembly. The redundant configuration allows two Analog Input modules to share the same field signals simultaneously. If one module fails, the secondary unit maintains the process signal without interruption. Furthermore, the IOTA supports “Hot Swap” functionality for easy maintenance. Technicians can replace faulty hardware while the system remains powered and active.

Signal integrity stays high due to integrated protection circuits. These components shield the DCS from electrical surges and field-induced noise. The compact footprint optimizes cabinet space in high-density installations. Therefore, it fits perfectly in large-scale refinery or chemical plant control rooms.

Industrial Applications

Automated safety systems often utilize the 51308365-175 for monitoring pressure and flow transmitters. It excels in sectors requiring high uptime, such as oil and gas processing. Power plants integrate this IOTA to manage critical temperature sensors and level indicators. Additionally, it supports Ethernet router communication services for advanced diagnostic data transfer. The module provides the stability needed for complex regulatory control loops in modern manufacturing.

Performance and Diagnostics

Advanced diagnostic capabilities facilitate proactive maintenance strategies. The system monitors the health of both redundant modules in real-time. Operators receive immediate alerts regarding hardware discrepancies or wiring faults. Because of this transparency, plant managers can reduce unplanned downtime significantly. The CC-TAIX11 consistently delivers accurate data to the controller for precise process adjustments.
